Page 24
USER MANUAL

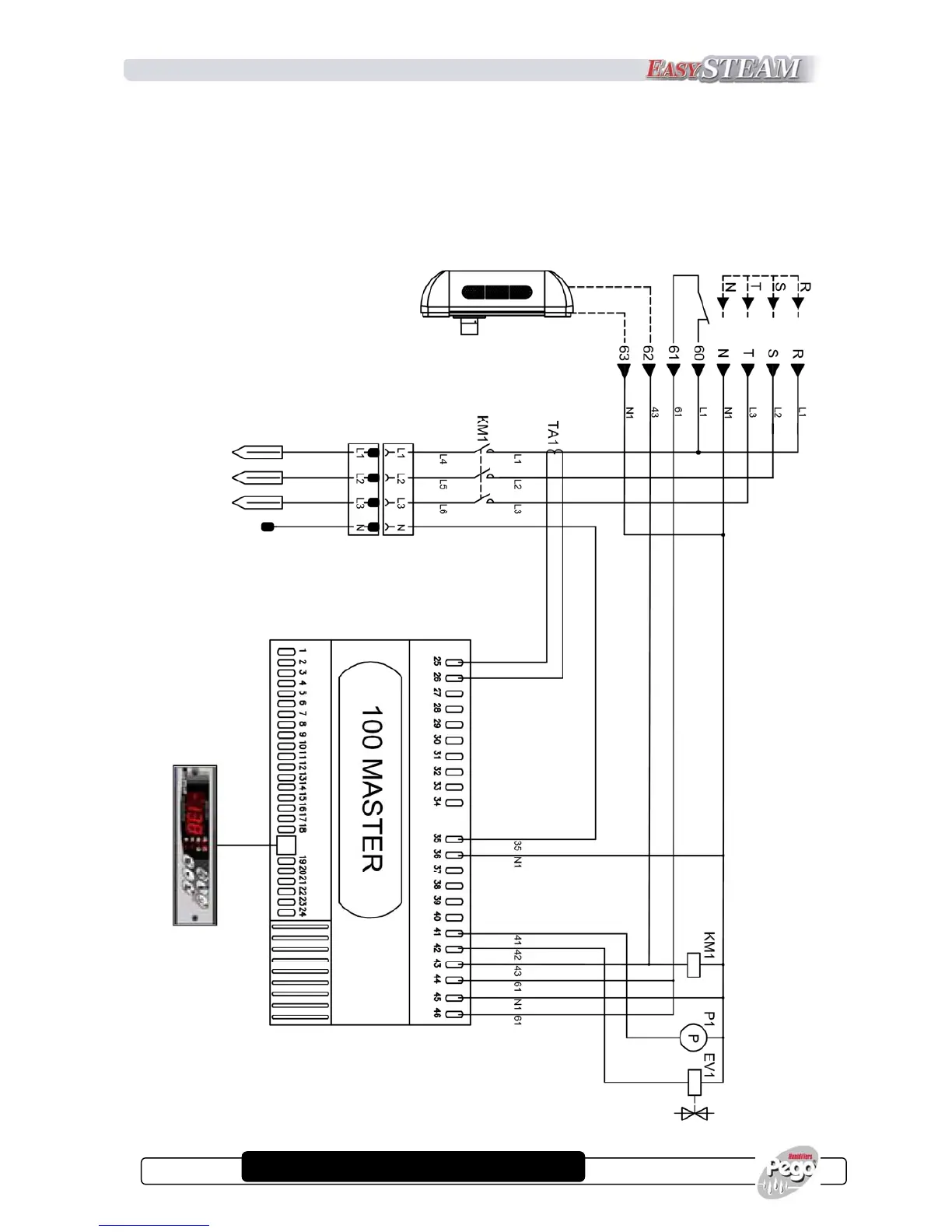

- Wiring diagrams models:
ES6-OEM / ES12-OEM / ES24-OEM
ES6 / ES12 / ES24
Fan unit
Emergency
close contact
Level
Humidifier
electrodes
Connector
Power
terminal block
Enabling and probes
terminal block
LEGENDA: KM1: Contactor TA1: Current transformer P1: Drain pump EV1: Solenoid valve
Power supply
400Vac three‐phase + N
50/60Hz
