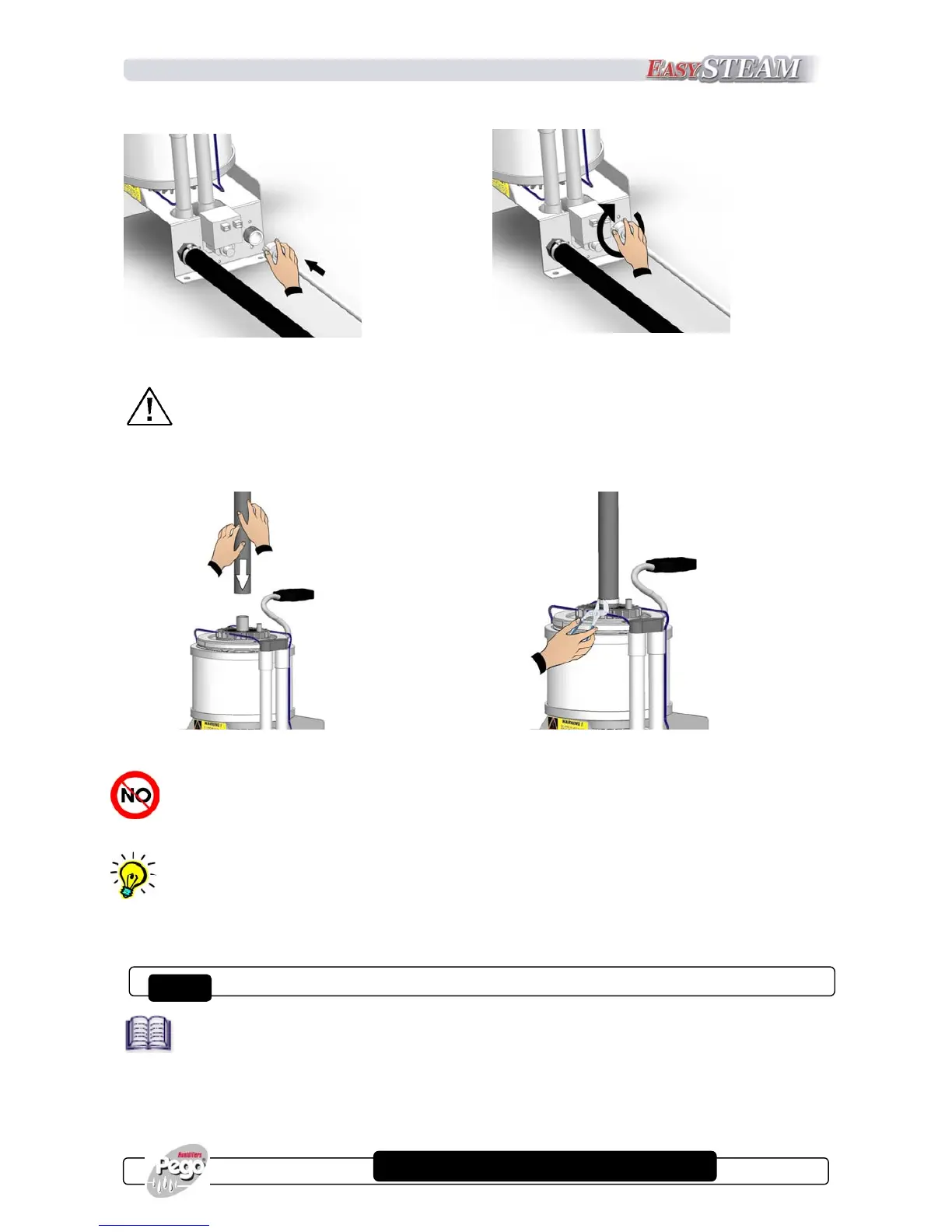

4. Connect the water inlet line to the ¾ GAS connector of the solenoid valve (fig. 21 and 22).
Fig. 21 Fig. 22
Connect up the water inlet using a non-metal pipe (e.g. rubber, PVC, polypropylene, nylon
etc.)
5. Connect the steam pipe to the cylinder flange sleeve and fix it in place with the supplied clip (fig.
23 and 24.
Fig. 23 Fig. 24
THE HOSE MUST NOT BE CHOKED, HAVE ANY SIPHONS OR BE LONGER
THAN 5 METRES
For instructions on correct connection of the steam distribution line, read Chapter 8 STEAM
DISTRIBUTION carefully.
OEM SERIES ELECTRICAL HUMIDIFIER CONNECTION
Humidifiers belonging to the OEM series are characterised by a steam generating unit and
a separate electronic kit. Electrical connections are the responsibility of the customer and
they are the same described at paragraphs 2.3, 2.4, 2.5.
If you wish to make settings different from the default ones, carry out the procedures given at
paragraph 2.4.
