Page 26
USER MANUAL
INSTALLING THE OEM SERIES HUMIDIFIER
1. Remove the humidifier from the packaging: keep it vertical as
you do so. Remove the nylon cover bag and check that the unit is
in good condition.
2. Fix the humidifier so it is level above the cell or base by inserting
the fixing screws in the 4 holes of the support base (fig. 17).

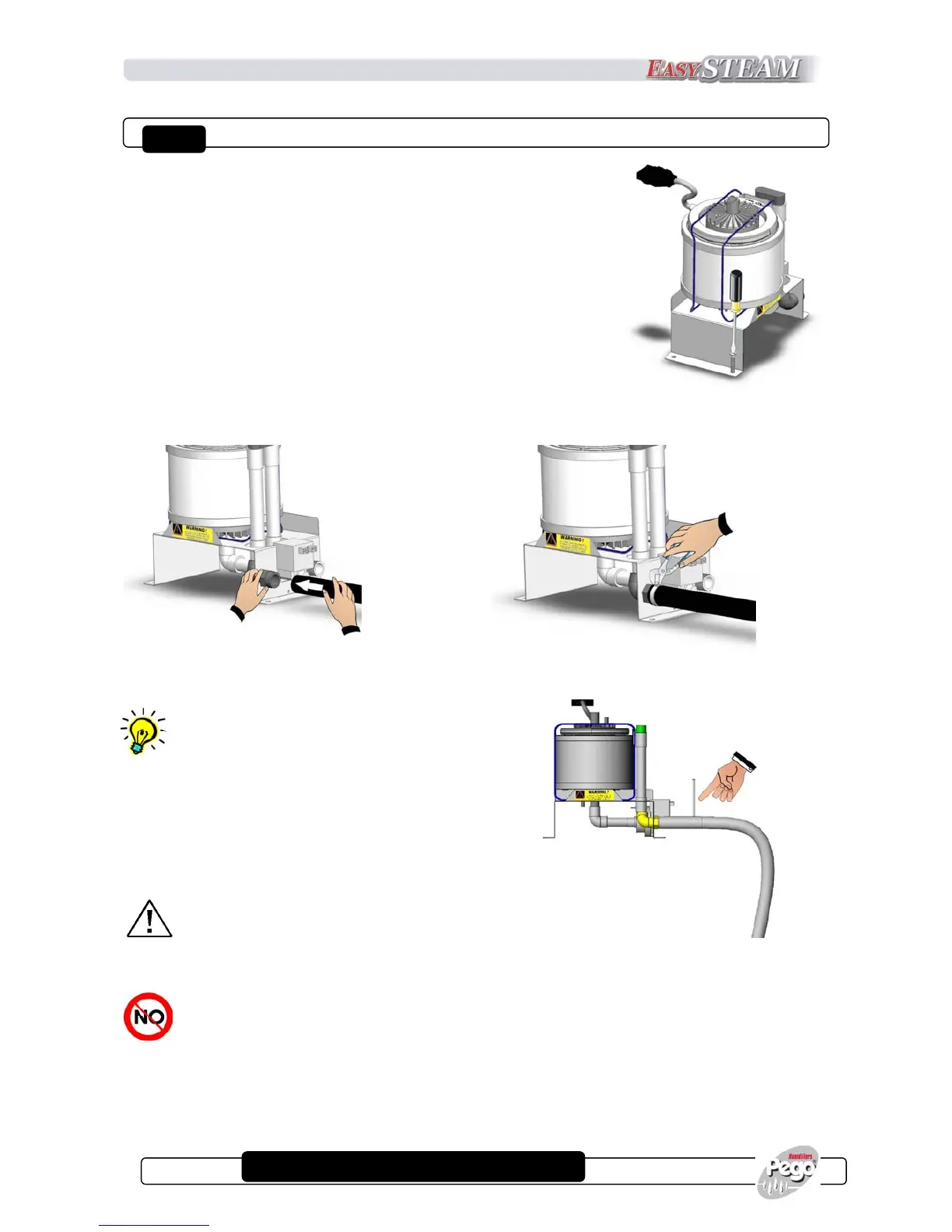

Fig. 17
3. Connect the water discharge (emptying) pipe to the manifold (25
mm diameter) and fix it in place with the supplied clip (fig. 18 and 19).
Fig. 18 Fig. 19
The discharge hose must not be choked/pinched
or create pressure: if it does the installation of a
vent on the discharge line (as shown in fig. 20)
is essential.
Fig. 20
Only connect the discharge with pipes
suitable for temperatures of 100 °C and only
use pipes with a diameter of at least 25 mm;
do not, at any point along the line, exceed the height of the humidifier.
NEVER USE THE HUMIDIFIER WITHOUT THE DISCHARGE LINE
CORRECTLY CONNECTED!
