Master/slave addressing:
Parameters MS and Ad setting of various units in this configuration is fixed and follows this
rule:
Parameters configuration in Master unit:
Ad = 0 Address of control Master
MS= 2 With control Master + slave1
3 With control Master + slave1+ slave2
4 With control Master + slave1+ slave2+ slave3
5 With control Master + slave1+ slave2+ slave3+ slave4
6 With control Master + slave1+ slave2+ slave3+ slave4+ slave5
Parameters configuration in slave1 unit:
Ad = 1 (Ad Master +1)
MS= 1 slave
Parameters configuration in slave2 unit:
Ad = 2 (Ad Master +2)
MS= 1 slave
Parameters configuration in slave3 unit:
Ad = 3 (Ad Master +3)
MS= 1 slave
Parameters configuration in slave4 unit:
Ad = 4 (Ad Master +4)
MS= 1 slave
Parameters configuration in slave5 unit:
Ad = 5 (Ad Master +5)
MS= 1 slave

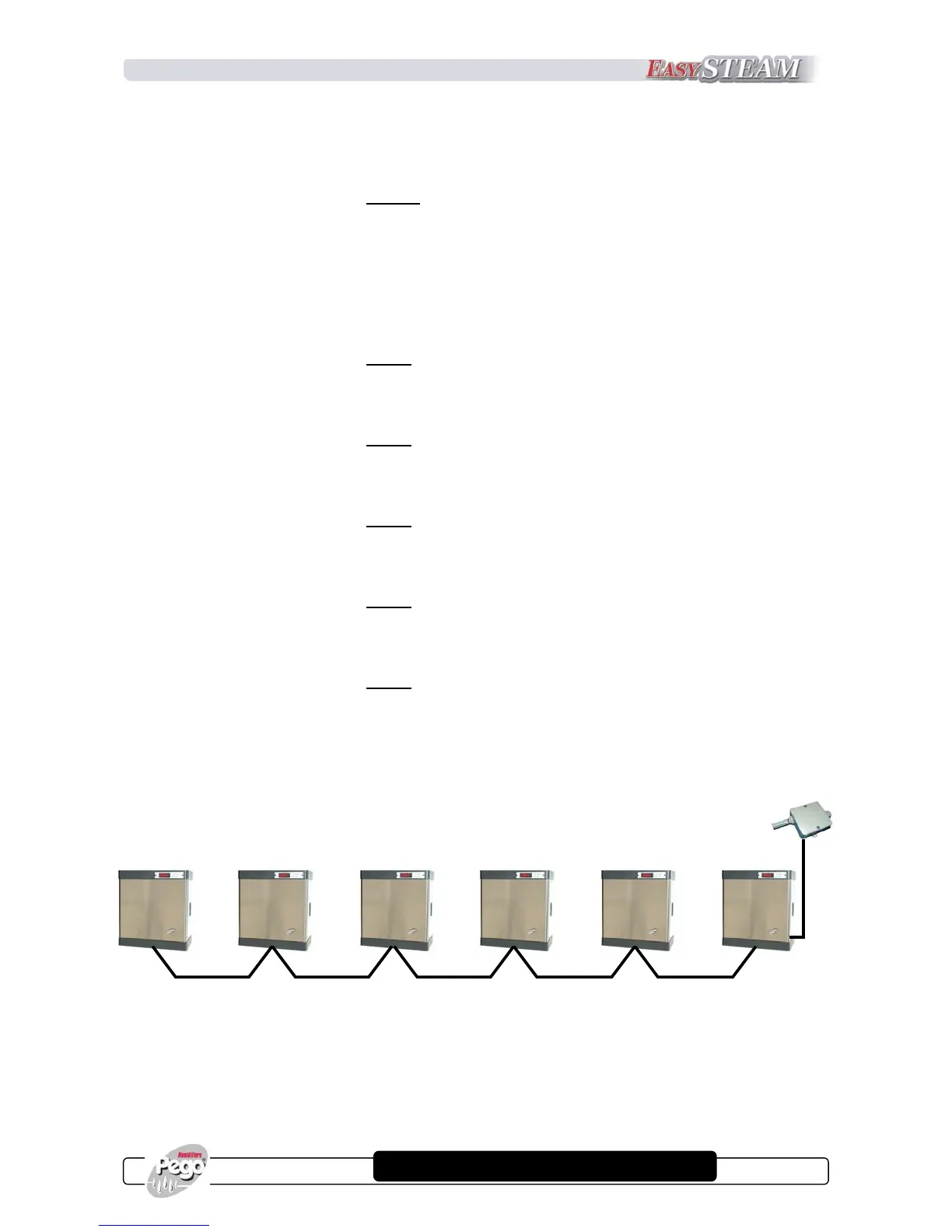

MASTER
MS=1
Ad=3
MS=1
Ad=2
MS=1
Ad=1
Humidity
sensor
MS=6
Ad=0
SLAVE-1 SLAVE-2 SLAVE-3
RS‐485
MS=1
Ad=4
SLAVE-4
MS=1
Ad=5
SLAVE-5
