USER MANUAL

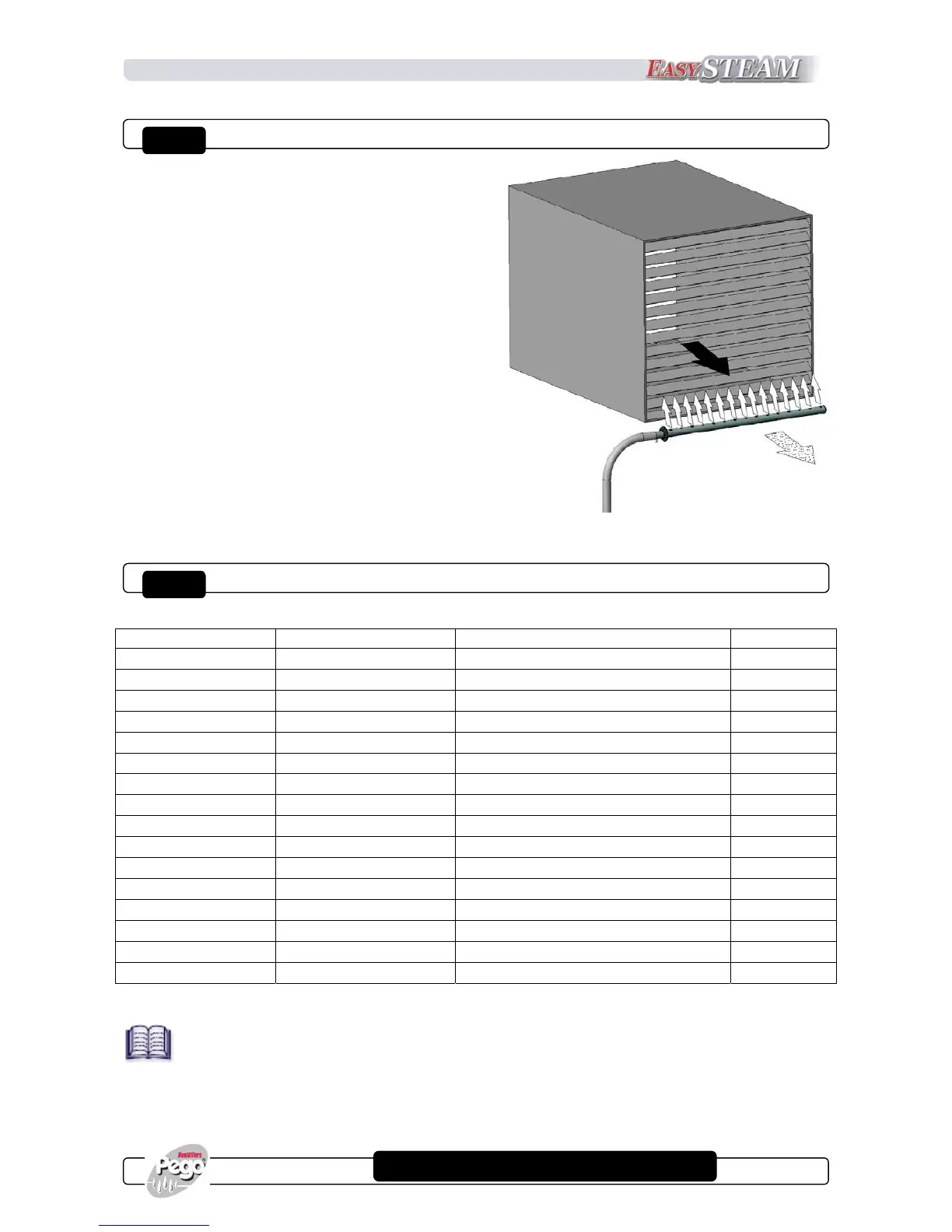

EXAMPLE OF IN-ROOM STEAM DISTRIBUTION
The PEGO distribution lance must be inserted
perpendicularly in front of the air outlet vents of
a ventilation unit.
To optimise distribution efficiency the lance
must cover as much of the effective air flow
width as possible (fig. 42).
Fig. 42
CHOOSING THE DISTRIBUTION PIPE
CODE TOTAL LENGTH STEAM DISTRIBUTOR LENGTH DIAMETER
UMILAN25X200 300 mm 200 mm 25
UMILAN25X250 350 mm 250 mm 25
UMILAN25X350 450 mm 350 mm 25
UMILAN25X500 600 mm 500 mm 25
UMILAN25X650 750 mm 650 mm 25
UMILAN25X800 900 mm 800 mm 25
UMILAN25X1000 1100 mm 1000 mm 25
UMILAN25X1050 1150 mm 1050 mm 25
UMILAN25X1100 1200 mm 1100 mm 25
UMILAN40X200 300 mm 200 mm 40
UMILAN40X250 350 mm 250 mm 40
UMILAN40X350 450 mm 350 mm 40
UMILAN40X500 600 mm 500 mm 40
UMILAN40X650 750 mm 650 mm 40
UMILAN4025X800 900 mm 800 mm 40
UMILAN40X1000 1100 mm 1000 mm 40
The PEGO 2 HUMIDIFIER DIVISION can supply custom-sized distribution lances. To
request a lance different from those given in the table above indicate.
