4.4.2 Perfore oricios para colocar los tacos de jación
Siguiendo las instrucciones, taladre oricios en la pared en los puntos marcados
de acuerdo con las indicaciones que se muestran en las Figura 4.6, Figura 4.7,
Figura 4.8, y luego inserte los tacos de jación con un martillo de goma.

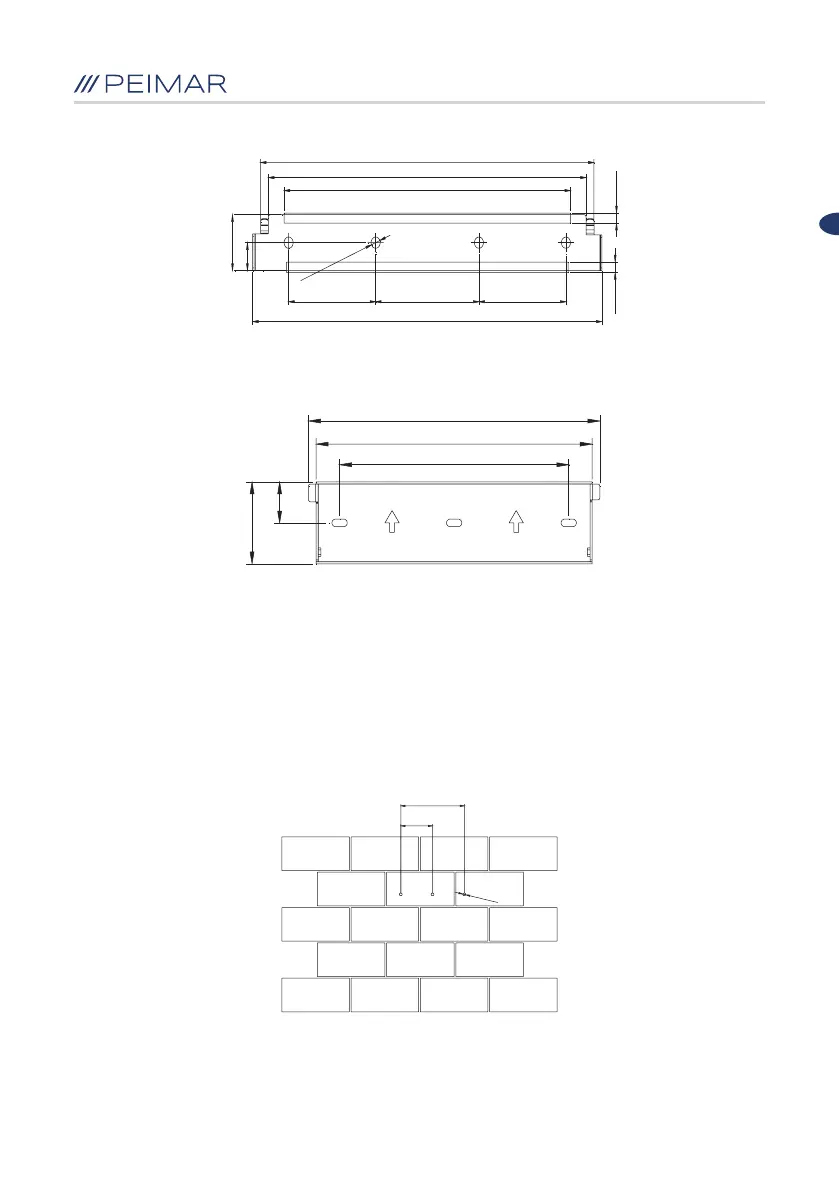

Figura 4.4 Dimensiones del soporte de PSI-J2000-TL/ PSI-J2000-TL / PSI-J2500-TL
Figura 4.5 Dimensiones del soporte de PSI-J3000-TLM/PSI-J4000-TLM/ PSI-J3000-TLM / PSI-J4000-TLM
Figura 4.6 Dimensiones de los oricios para PSI-J1000-TL / PSI-J1500-TL
296,9
283
255
77,5 77,592
311
40
20
7,27,2
4-ø8
305
289
240
86
43
188
94
ø8
