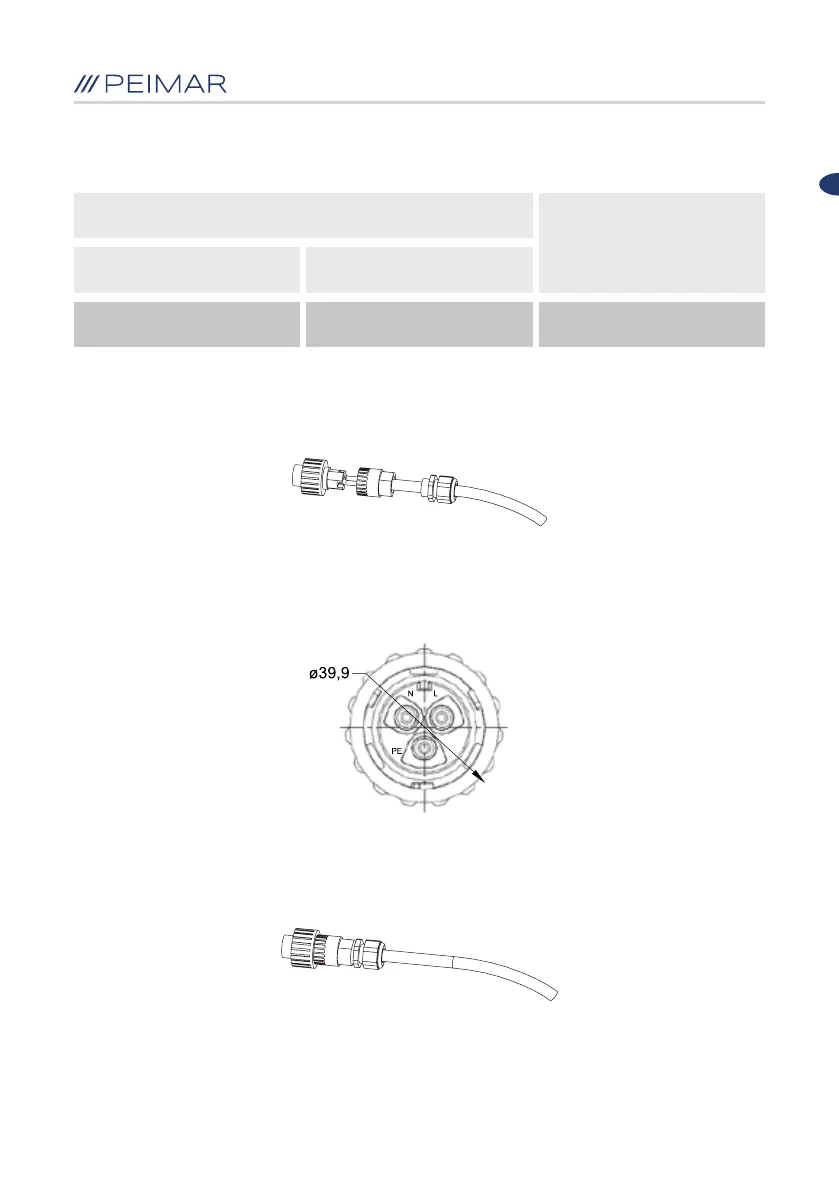

5.3 AC side connection
Table 5.2 Recommended specications of AC cables
Figure 5.5 Screw the connector
Figure 5.4 Connect the cables
Figure 5.3 Thread the cables
Cross-sectional Area of Cables (mm²)
Outside Diameter
of the Cables (mm)
4.0-6.0 4.0 4.2~5.3
Scope Recommended Value
5.3.1 Feed the AC cable through the AC waterproof hole
5.3.3 Secure all parts of the AC connector tightly.
5.3.2 Connect the cables according to connection marks of L, N and PE.
