5.3.4 Connect the AC connector to the equipment securely, ensuring
the pins are connected directly.
Then the connection of AC cable is complete

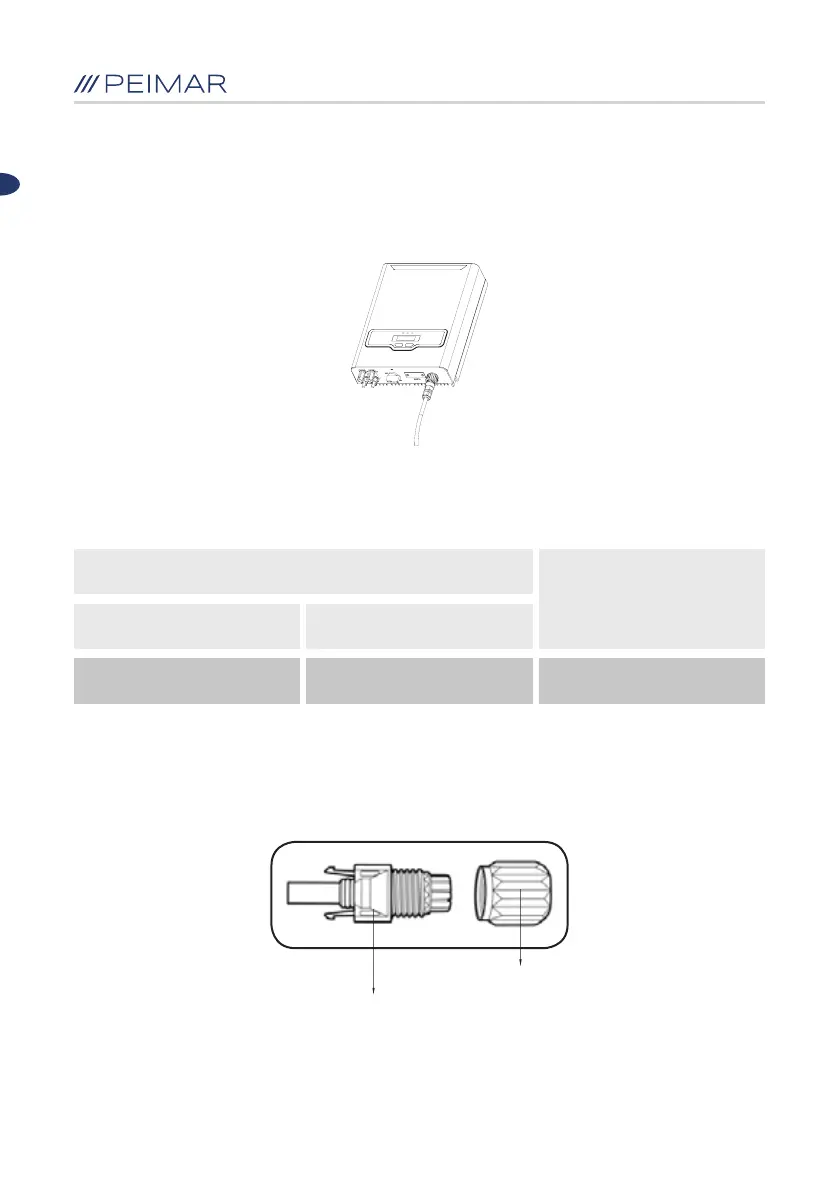

Figure 5.6 Connect the inverter
Table 5.3 Recommended specications of DC cables
Figure 5.7 Positive connector
5.4 DC side connection
Cross-sectional Area of Cables (mm²)
Outside Diameter
of the Cables (mm)
4.0-6.0 4.0 4.2~5.3
Scope Recommended Value
DC connector is made up of the positive connector and the cathode connector.
Insulated Enclosure
Lock Screw
