Installing Your Stove
Installing Your Stove
Pro Tip
Installing a cleanout “T” (sold separately) to the rear
of your stove, when venting vertically can save time during cleaning.

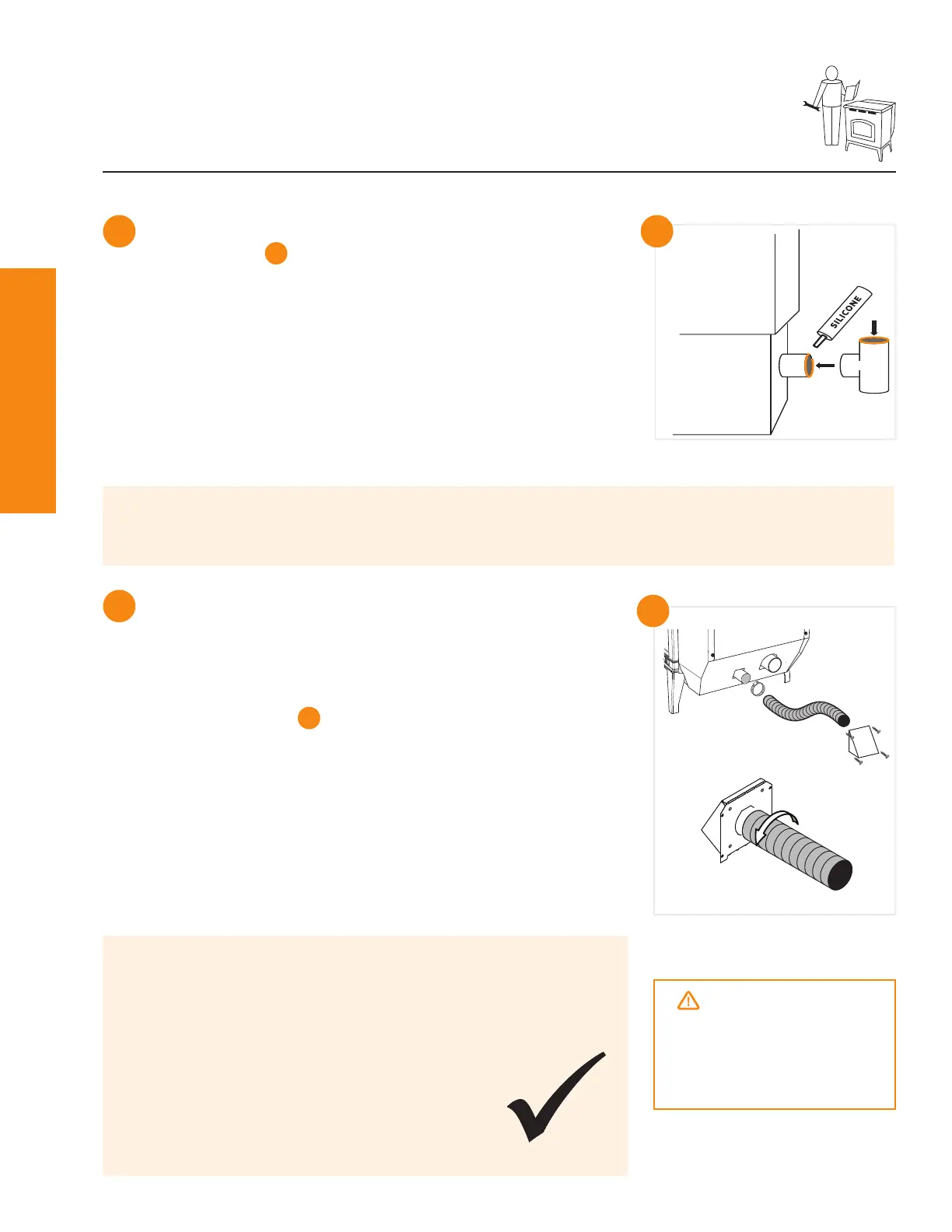

Install outside air kit (included)
For optimal performance, PelPro recommends the
outside air kit for all installations. Outside air kit is
required for all mobile/manufactured home installations.
Install through wall
B
• Maintain clearances from exhaust
• Remove knock out in the rear of stove
- Attach ex pipe to outside air connection
on stove
- Use hose clamp
- Route tube outside the structure
- Attach cap
- Secure to outside wall with appropriate fasteners
Take a Break
Inspect your work:
_____ Conrm clearances to combustibles are maintained
_____ Pipe joints are secure and properly sealed
_____ Outside air kit installed properly
_____ Conrm termination clearances
6
B
CAUTION!
Never draw outside
combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an
attic, garage or crawl space.
• Install pellet venting through wall and connect vent/
pipe to stove
A
• Some venting manufacturers offer pellet stove
adapters for their venting for easier installation
• Seal all pipe joints using high-temp silicone (500°+)
• Secure exhaust venting system to the appliance with
at least 3 screws or rivets per the pipe manufacturer’s
instructions. Also secure all connector pipe joints with
at least 3 screws through each joint.
• Install termination cap
• Conrm all required stove clearances to combustibles
A5
