INSTALLATION
Regardless of when or by whom your vessel may have been installed, there are a few quick
checks you should make before use. Check that each vessel is:
• Mounted with compliant material (Polyurethane saddle) between the fiberglass shell and
any rigid frame.
• Free to expand under pressure - shell not clamped rigidly in place, no rigid piping
connections to port fittings.
• Not used in any way to support other components such as piping, manifolds hanging from
ports.

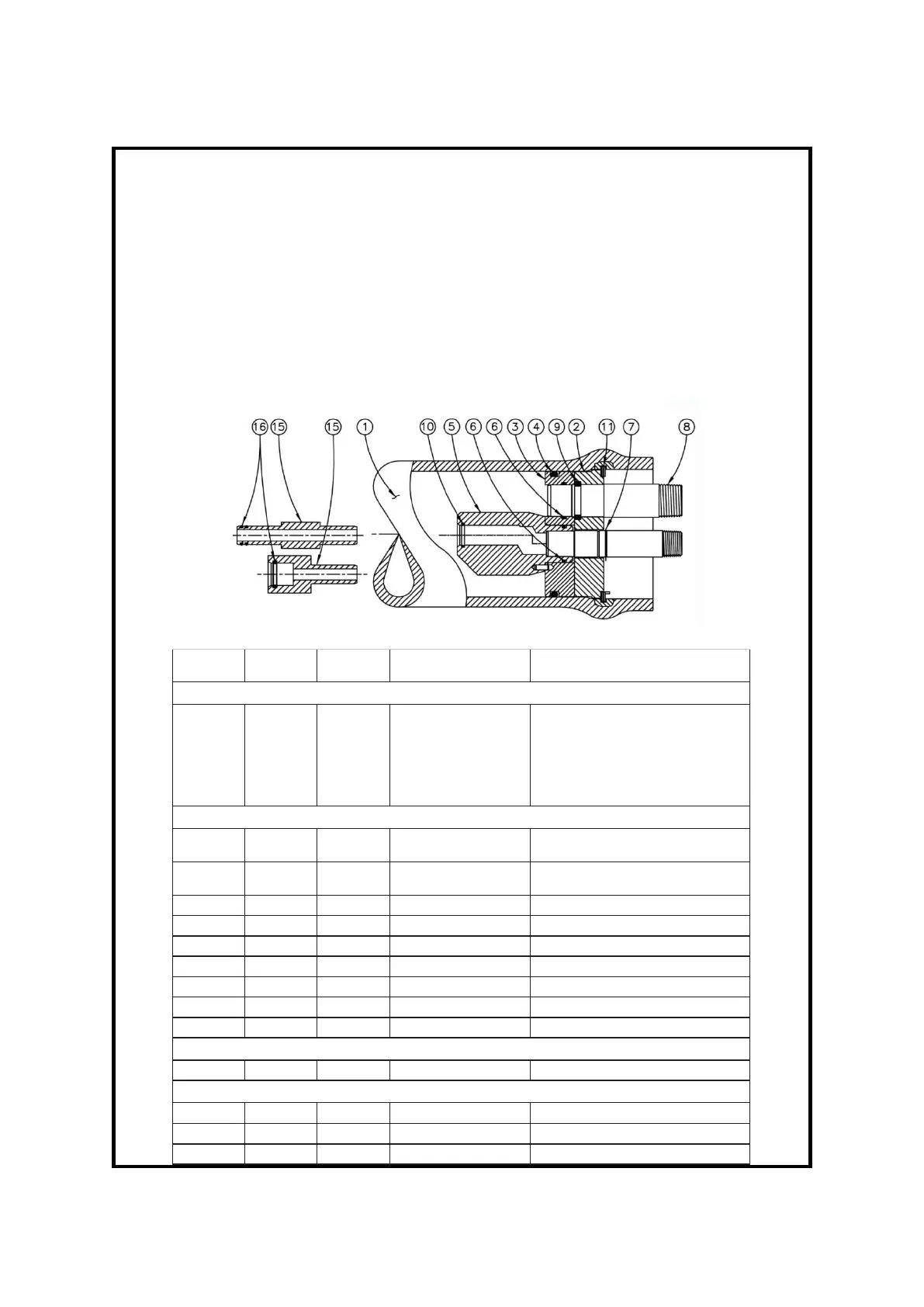

Dwg Ref
Qty Per
Item #
Description
Materials
Shell
1
1
Shell
Filament Wound epoxy/glass
composite. Head locking
grooves internally wound in
place. Shell exterior coated
with white high
gloss polyurethane paint.
Head
2
2
47471
Bearing Plate
6061-T6 hard anodized Alum.
Alloy
3
2
50481
Seal Plate
PVC Thermoplastic (gray) - 120 F
Max
4
2
196266
Plug Seal
Ethylene polypropylene O-ring
5
2
47469
Permeate Port
PVC Thermoplastic (gray)
6
2
196432
Permeate Port Seal
Ethylene polypropylene O-ring
7
2
45244
Port Retainer
PH 15-7 MO SST
8
2
47472
Feed/Conc. Port
6% MO SST
9
2
50489
Port Retainer Set
CF8M Ca st SST, 2piece set
10
2
196431
Adapter Seal
Ethylene polypropylene O-ring
Head Interlock
11
2
45260
Retaining Ring
316L SST
Element Interface
15
2
A/R
Adapter
Engineering Thermoplastic
16
2
A/R
PWT Seal
Ethylene polypropylene O-ring
