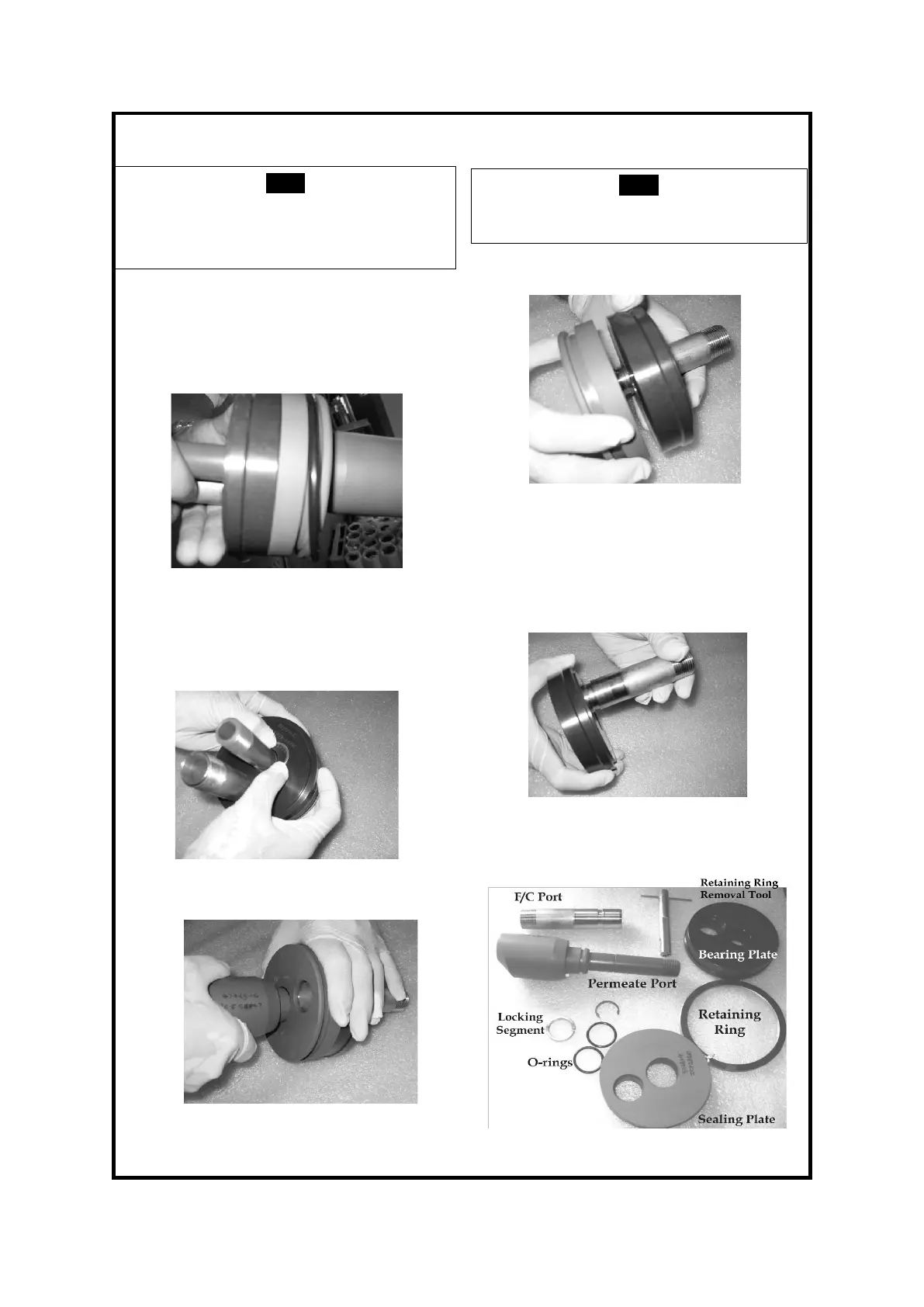

5. Rotate sealing plate relative to bearing
plate and separate the two.
1. Using a small screwdriver or similar tool
remove the Plug Seal. However, do not
damage the sealing surface in any way as
it may lead to leakage.
Removal of the Plug
Seal
2. Remove circlip from its groove in the
Permeate port. Take care not to scratch
the hard-anodized surface of the bearing
plate.
Removal of the Circlip
3.
Pull permeate port out of the Head Assembly.
Removal of the Permeate Port from
the End Plug Assembly
Separate the Sealing
plate
and the Bearing
plate
5. Push Feed/Concentrate Port further into
the bearing plate, remove the two Port
Retainer segments, then pull
Feed/Concentrate Port out of the
Bearing Plate.
Removal of F/C Port from the Bearing plate
6. Check all head components as shown
in the picture “Head Component
Identification 40E100”.
NOTE
Head Rebuilding should be performed in a clean
work area. Dust or dirt on O-rings or other parts
can scratch inner surfaces, with subsequent
leakage.
NOTE
During the next step, one or both Port Retainer
halves may fall out.
