Pentair FLECK 5000 User Manual

2
3
6
BR60049 Rev H

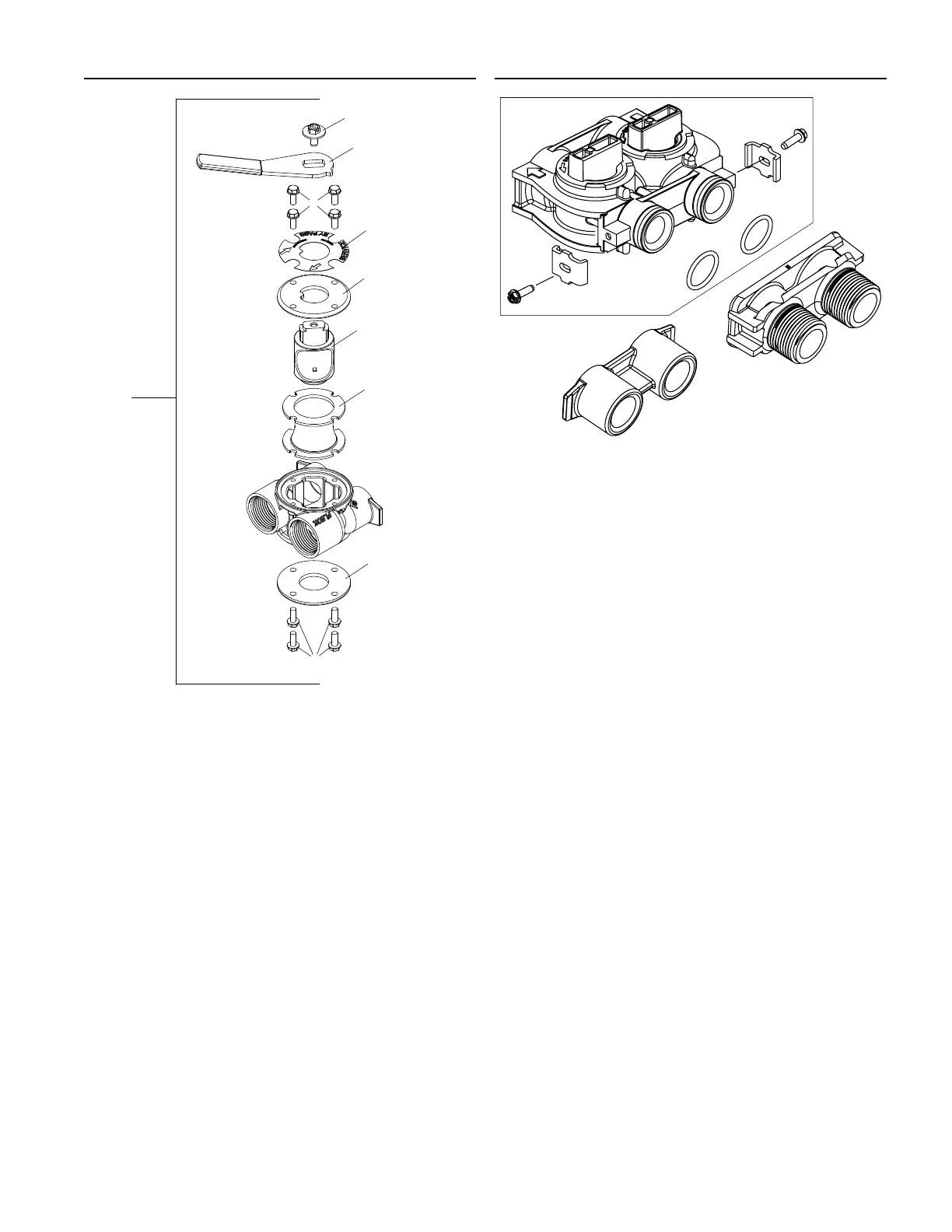

BYPASS VALVE ASSEMBLY (PLASTIC)
Item No. QTY Part No. Description
1 .............. 2 ....... 13305 ..............O-ring, -119
2 ............. 2 ....... 13255 ..............Clip, Mounting
3 ............. 2 ....... 13314 ............... Screw, Slot Ind Hex, 8-18 x
0.60
4 ..............1 ....... 18706 ..............Yoke, 1", NPT, Plastic
........18706-02 ......... Yoke, 3/4", NPT, Plastic
5 ..............1 ....... 13708-40 ......... Yoke, 1", Sweat
........13708-45 ......... Yoke, 3/4", Sweat
........19275 ..............Yoke, Angle 90 Deg, 3/4", NPT
........19275-45 .........Yoke, Angle 90 Deg, 3/4",
Sweat
........19620-01 .........Yoke, Assy, 3/4", R/Angle
90 Deg, w/O-rings, Clips &
Screws
........40636 .............Yoke, 1-1/4", NPT
........40636-49 ........Yoke, 1-1/4", Sweat
........41027-01 .......... Yoke, 3/4", NPT, Cast,
Machined
........41026-01 ..........Yoke, 1", NPT, Cast, Machined,
SS
........41026-02 ......... Yoke, 1", BSP, Cast, Machined,
SS
........18706-10 ..........Yoke, 1", BSP, Plastic
........41027-02 ......... Yoke, 3/4", BSP, Cast,
Machined
........18706-12 ..........Yoke, 3/4", BSP, Plastic
........19620-01 .........Yoke Assy, 3/4", R/Angle, 90
Deg
6 ..............1 ....... 60049 .............Bypass Plastic
Not Shown:
2 ....... 19228-01..........Adapter Assy, Coupling,
w/O-rings
1
4
5
BR18706 Rev J
BR41027 Rev G
BYPASS VALVE ASSEMBLY (METAL)
Item No. QTY Part No. Description
1 ............... 1 ....... 14105 ............... Seal, Bypass, 560CD
2 ..............1 ....... 11972 ...............Plug, Bypass
3 ..............1 ....... 11978 ...............Side Cover
4 ..............1 ....... 13604-01 ......... Label
5 ............. 8 ....... 15727 ............... Screw, 10-24 x 0.5"
6 ..............1 ....... 11986 ............... Side Cover
7 ..............1 ....... 11979 ...............Lever, Bypass
8 ..............1 ....... 11989 ............... Screw, Hex Head, 1/4-14 x 1.5"
9 ..............1 ....... 60040SS ......... Bypass Valve, 5600, 3/4" NPT
Black Grip Lever, SS
........60041SS .......... Bypass Valve, 5600, 1" NPT
Black Grip Lever, Stainless
Steel
Not Shown:
2 ....... 19228-01..........Adapter Assy, Coupling,
w/O-rings
8
7
5
4
3
2
1
6
5
9
60040SS Rev Y
60041SS Rev AA
PENTAIR FLECK 5000 Control Valve Service Manual • 19
