WATER CONDITIONER FLOW DIAGRAMS
22 • PENTAIR FLECK 5000 Control Valve Service Manual

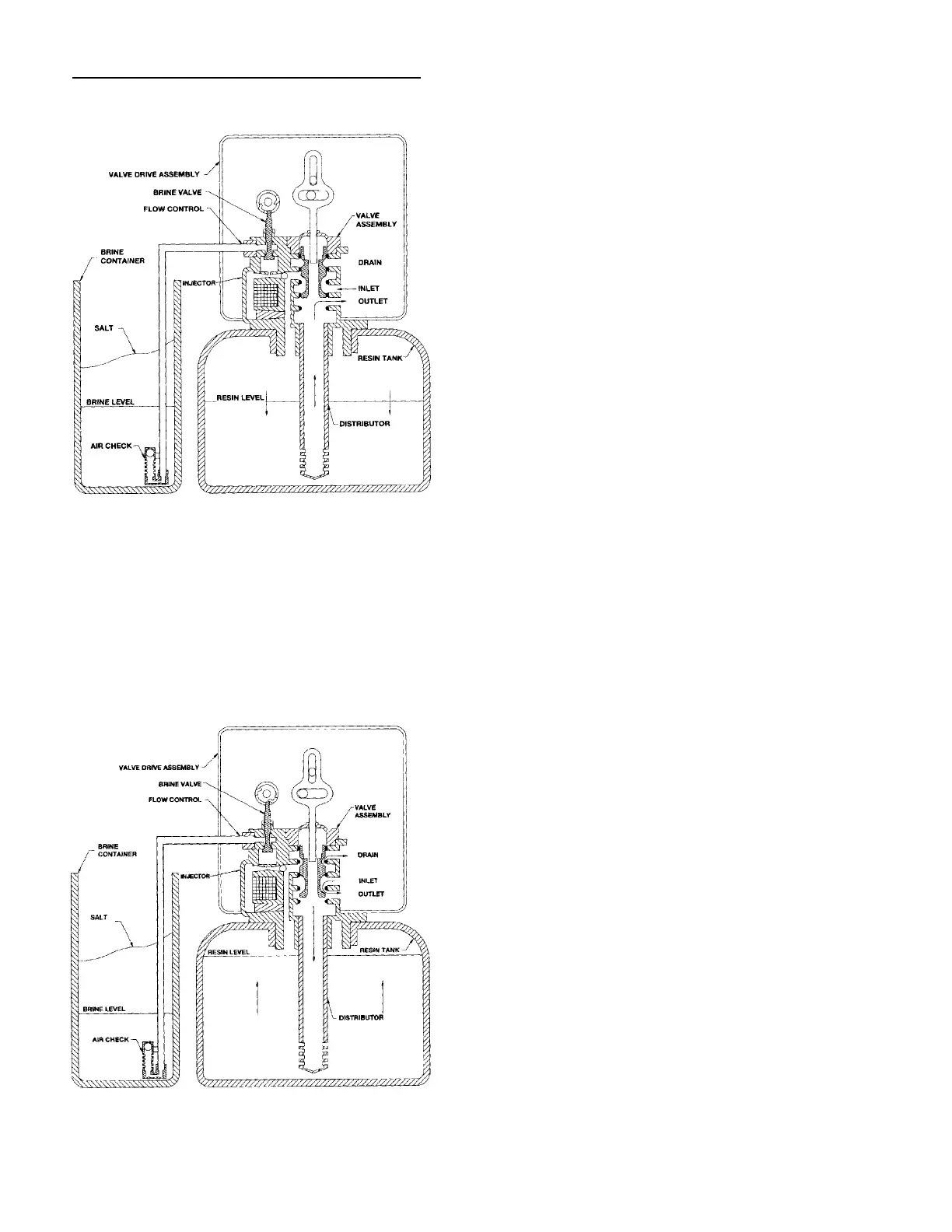

Hard water enters unit at valve inlet and ows around the piston
down through the mineral in the mineral tank. Conditioned water
enters center tube through the bottom distributor then ows up
through the center tube and to the outlet of the valve.
Hard water enters unit at valve inlet - ows around piston - down
center tube - through bottom distributor and up through the
mineral - around the piston and out the drain line.
Service Position
Backwash Position
