PENTAIR FLECK 5000 Control Valve Service Manual • 23
Brine. Hard water enters unit at the valve inlet - ows into
injector housing and through nozzle and throat to draw brine
from the brine tank - brine ows down through mineral and
enters the center tube through bottom distributor and out
through the drain line.
Slow Rinse. Hard water enters unit at valve inlet - ows into
injector housing and through nozzle and throat down through
mineral and enters the center tube through bottom distributor
and out through the drain line.
Hard water ows from inlet around the piston down through the
mineral into bottom distributor and up through center tube -
through piston and out through the drain line.
Hard water enters unit at valve inlet and ows around the piston
down through the mineral. Conditioned water ows up through
the center tube - ows through the injector housing - through
the brine valve to ll the brine tank.

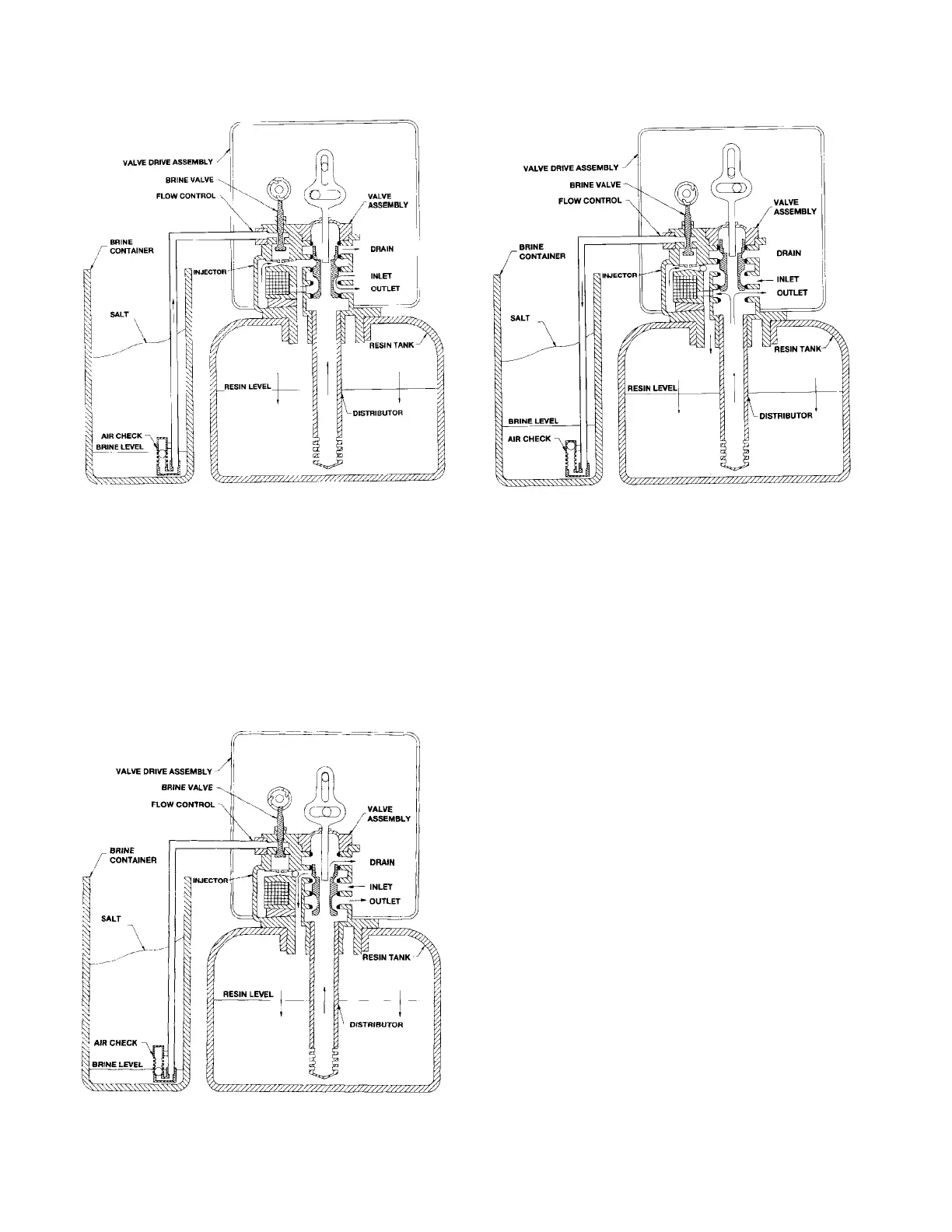

Brine/Slow Rinse Position
Rapid Rinse Position
Brine Tank Fill Position
