PENTAIR FLECK 5000 Control Valve Service Manual • 9
MASTER PROGRAMMING MODE
CAUTION
Before entering Master Programming, please
contact your local professional water dealer.
When the Master Programming Mode is entered, all available
option setting displays may be viewed and set as needed.
Depending on current option settings, some parameters cannot
be viewed or set.
Entering Master Programming Mode
Set the Time Of Day display to 12:01 P.M. Press the Extra Cycle
button (to exit Setting Time of Day mode). Then press and hold the
Up and Down buttons together until the programming icon replaces
the service icon and the Display Format screen appears.
Exiting Master Programming Mode
Press the Extra Cycle button to accept the displayed settings
and cycle to the next parameter. Press the Extra Cycle button
at the last parameter to save all settings and return to normal
operation. The control will automatically disregard any
programming changes and return to normal operation if it is left
in Master Programming mode for 5 minutes without any keypad
input.
Resets
Soft Reset: Press and hold the Extra Cycle and Down buttons
for 25 seconds while in normal Service mode. This resets all
parameters to the system default values, except the volume
remaining in meter immediate or meter delayed systems and
days since regeneration in the time clock system.
Master Reset: Hold the Extra Cycle button while powering up
the unit. This resets all of the parameters in the unit. Check and
verify the choices selected in Master Programming Mode.

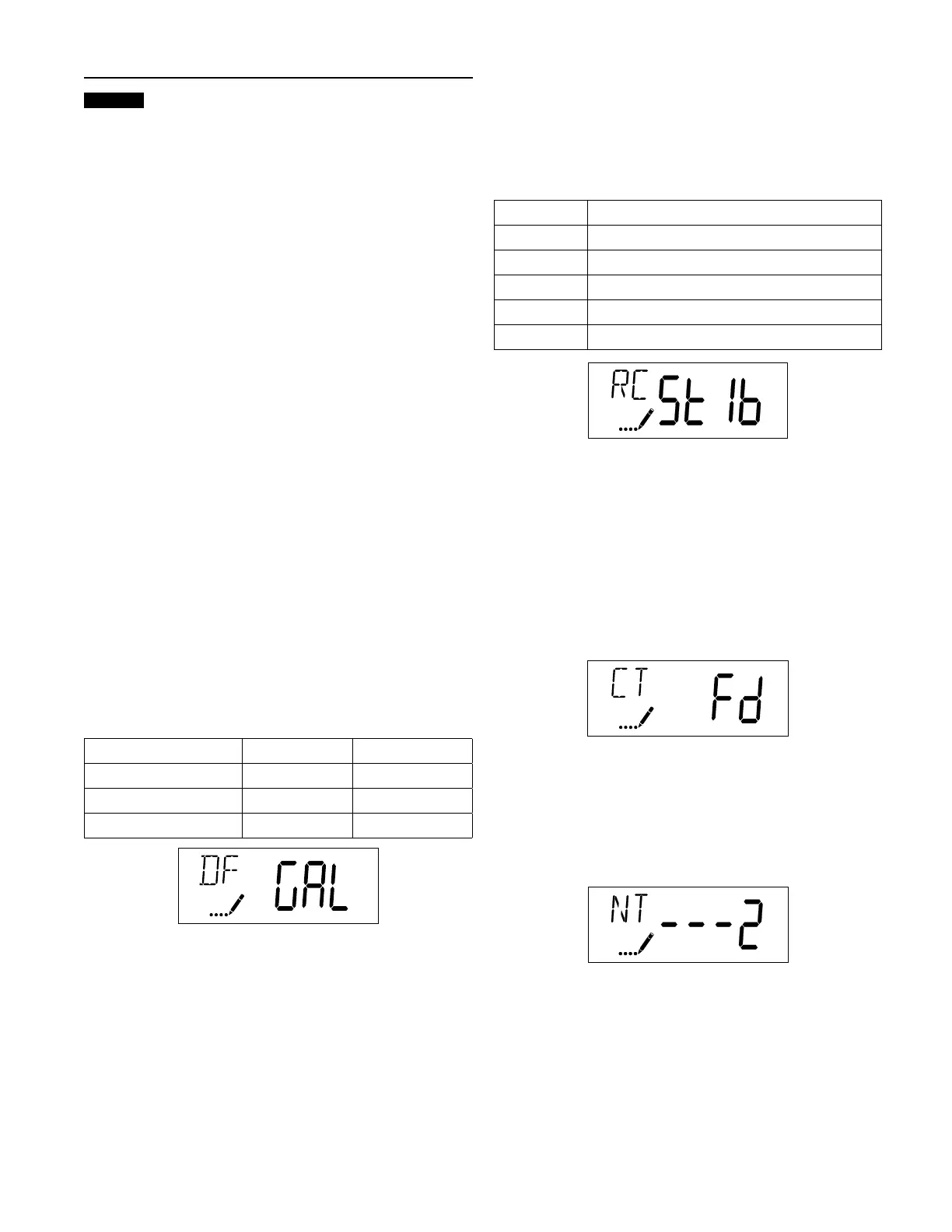

1. Display Format (Display Code DF)
This is the rst screen that appears when entering Master
Programming Mode. The Display Format setting species the
unit of measure that will be used for volume and how the control
will display the Time of Day. This option setting is identied by
“DF” in the upper left hand corner of the screen. There are three
possible settings:
Display Format Setting Unit of Volume Time Display
GAL U.S. Gallons 12-Hour AM/PM
Ltr Liters 24-Hour
Cu Cubic Meters 24-Hour
2. Valve Type (Display Code VT)
Press the Extra Cycle button. Use this display to set the Valve Type.
The Valve Type setting species the type of cycle that the valve
follows during regeneration. Note that some valve types require
that the valve be built with specic subcomponents. Ensure the
valve is congured properly before changing the Valve Type setting.
This option setting is identied by “VT” in the upper left hand corner
of the screen. There are ve possible settings:
Abbreviation Parameter
St1b Standard Downow/Upow, Single Backwash
St2b Standard Downow/Upow, Double Backwash
Fltr Filter
UFbF Upow Brine First
Othr Other
3. Control Type (Display Code CT)
Press the Extra Cycle button. Use this display to set the Control
Type. This species how the control determines when to trigger
a regeneration. For details on how the various options function,
refer to the “Timer Operation” section of this service manual. This
option setting is identied by “CT” in the upper left hand corner of
the screen. There are four possible settings:
Meter Delayed: Fd
Meter Immediate: FI
Time Clock: tc
Day of Week: dAY
4. Number of Tanks (Display Code NT)
Press the Extra Cycle button. Use this display to set the Number
of Tanks in your system. This option setting is identied by
“NT” in the upper left hand corner of the screen. There are two
possible settings:
Single Tank System: 1
Two-Tank System: 2
