Item No. QTY Part No. Description
1.................1 ........ 42349 .................Motor, 24V, 2 RPM, 7000
2.................1 ........ 10218 .................Switch, Micro
3.................1 ........ 40978 .................Plate, Upper Support
4.................1 ........ 61729 .................Circuit Board Assy, 7000 NXT
5.................1 ........ 40702 .................Shaft, Encoder, 7000
6.................1 ........ 40703 .................Gear, Main
7.................1 ........ 40704 .................Cam, Brine, Downflow
8.................1 ........ 40979 .................Plate, Lower Support
9.................1 ........ 61635-01 ............Cover Assy, 7000-II, Black
1 ........ 61634-01 ............Cover Assy, 7000-II, Gray
10 ...............1 ........ 40980-20 ............Backplate, 7000NXT
11 ...............4 ........ 13602 .................Screw, Phil Rd Hd, 6-32 x 5/16
12 ...............1 ........ 12473 .................Screw, Hex Wsh, 10-24 x 5/8
13 ...............2 ........ 11805 .................Screw, Rd Hd, 4-40 x 5/8 Type 1
14 ...............1 ........ 61920-01 ............Transformer Assy, 7000NXT,
40VA, US
............................ 61920-02 ............Transformer Assy, 7000NXT,
40VA, Japan
............................ 61920-03 ............Transformer Assy, 7000NXT,
40VA, Europe
............................ 61920-04 ............Transformer Assy, 7000NXT,
40VA, Australia
15 ...............1 ........ 19791-01 ............Meter Cable Assy, Turbine/SE

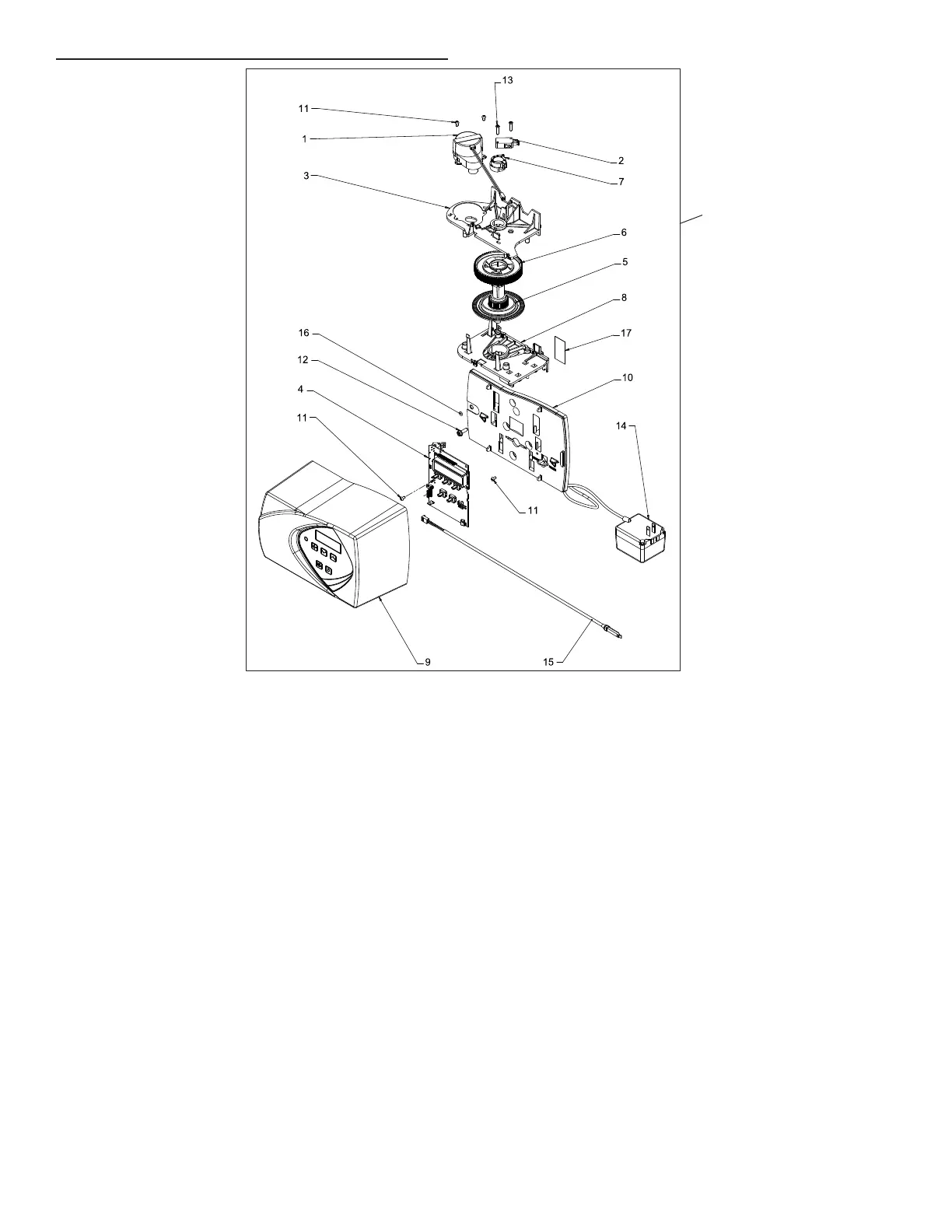

POWERHEAD ASSEMBLY
18
61501-7000XT Rev A
16 ...............1 ........ 41122 .................O-ring, -007
17 ...............1 ........ 40960-03 ............Label, UL Nameplate, 7000,
US/24
18 ......................... * .........................7000 Complete Powerhead
Not Shown:
1 ........ 61763 .................Kit, CAN Communication Cable
*Call your distributor for Part Number
16 • FLECK 7000 NXT Service Manual
