Pentair FLECK NXT2 - Timer Assembly and Conversion; NXT2 Timer Assembly (Standard Valves); NXT2 Timer Assembly (2815 Valve)

Item No. QTY Part No. Description
1.................1 ........ 62115 .................Timer Assy, NXT2
Service Assemblies
2.................1 ........ 62120 .................Control Panel Assy, NXT2, Programmed
3.................1 ........ 40941 .................Wire Harness, Upper Drive
Item No. QTY Part No. Description
1.................1 ........ 62115-01 ............Timer Assy, NXT2, 2815
Service Assemblies
2.................1 ........ 62120 .................Control Panel Assy, NXT2, Programmed
3.................1 ........ 44076 .................Wire Harness, Upper Drive

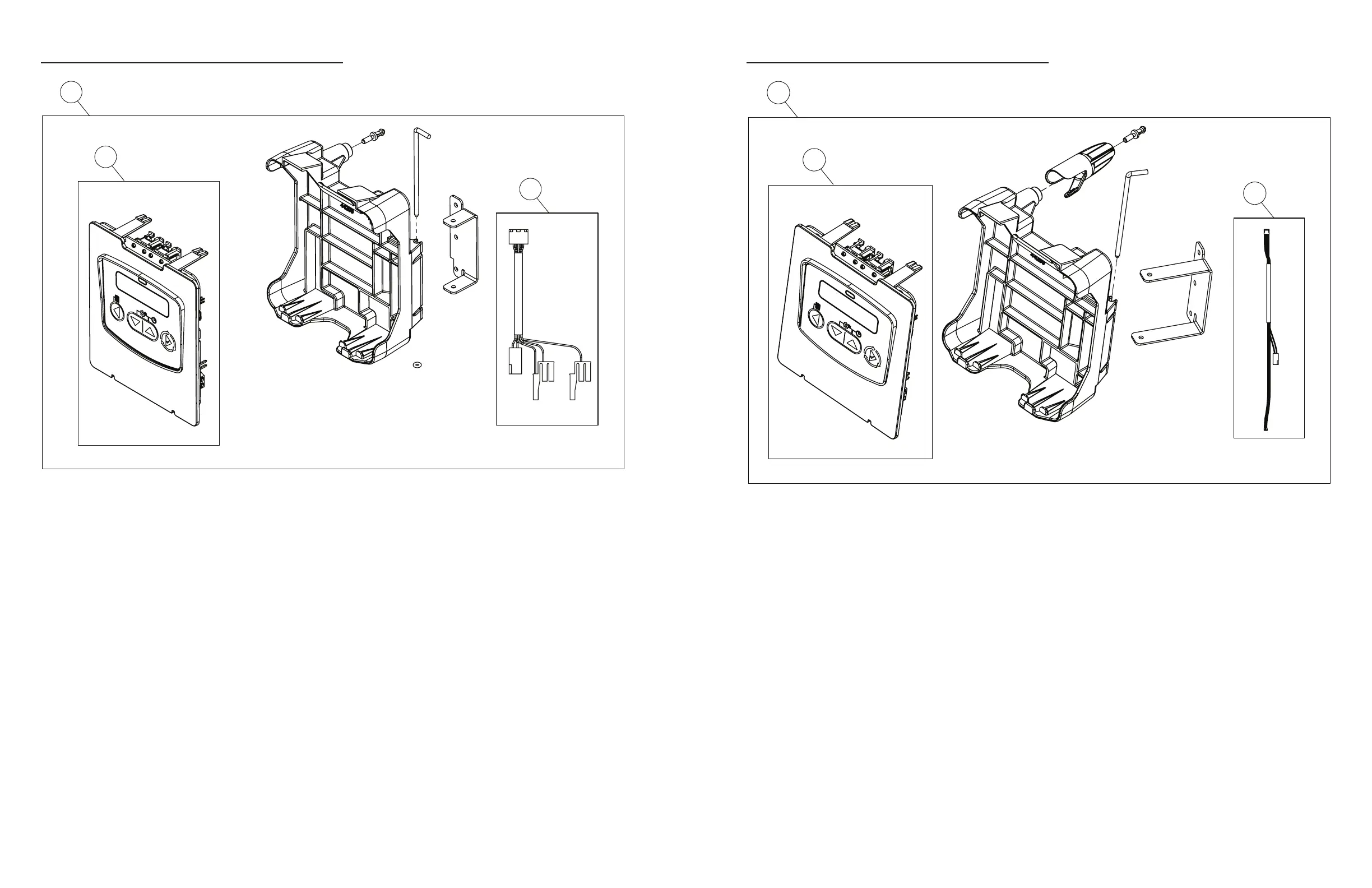

NXT2 TIMER ASSEMBLY
(2510, 2750, 2850, 2900, 3150, 3900 VALVES)
NXT2 TIMER ASSEMBLY
(2815 VALVE)
1
2
3
1
2
3
62115 Rev A
62115-01 Rev A
