Pentair FLECK NXT2 - Wiring and Connections; NXT to NXT2 Conversion Kits; NXT2 Wiring Diagram

Item No. QTY Part No. Description
1 ........ 62121-01 ............Conversion Kit, NXT2, US
1 ........ 62121-02 ............Conversion Kit, NXT2, Euro
1 ........ 62121-03 ............Conversion Kit, NXT2, Aust
1 ........ 62121-04 ............Conversion Kit, NXT2, Japan
NOTE: All Conversion Kits include timer wire harness (not pictured),
and appropriate power supply plug end (also not pictured

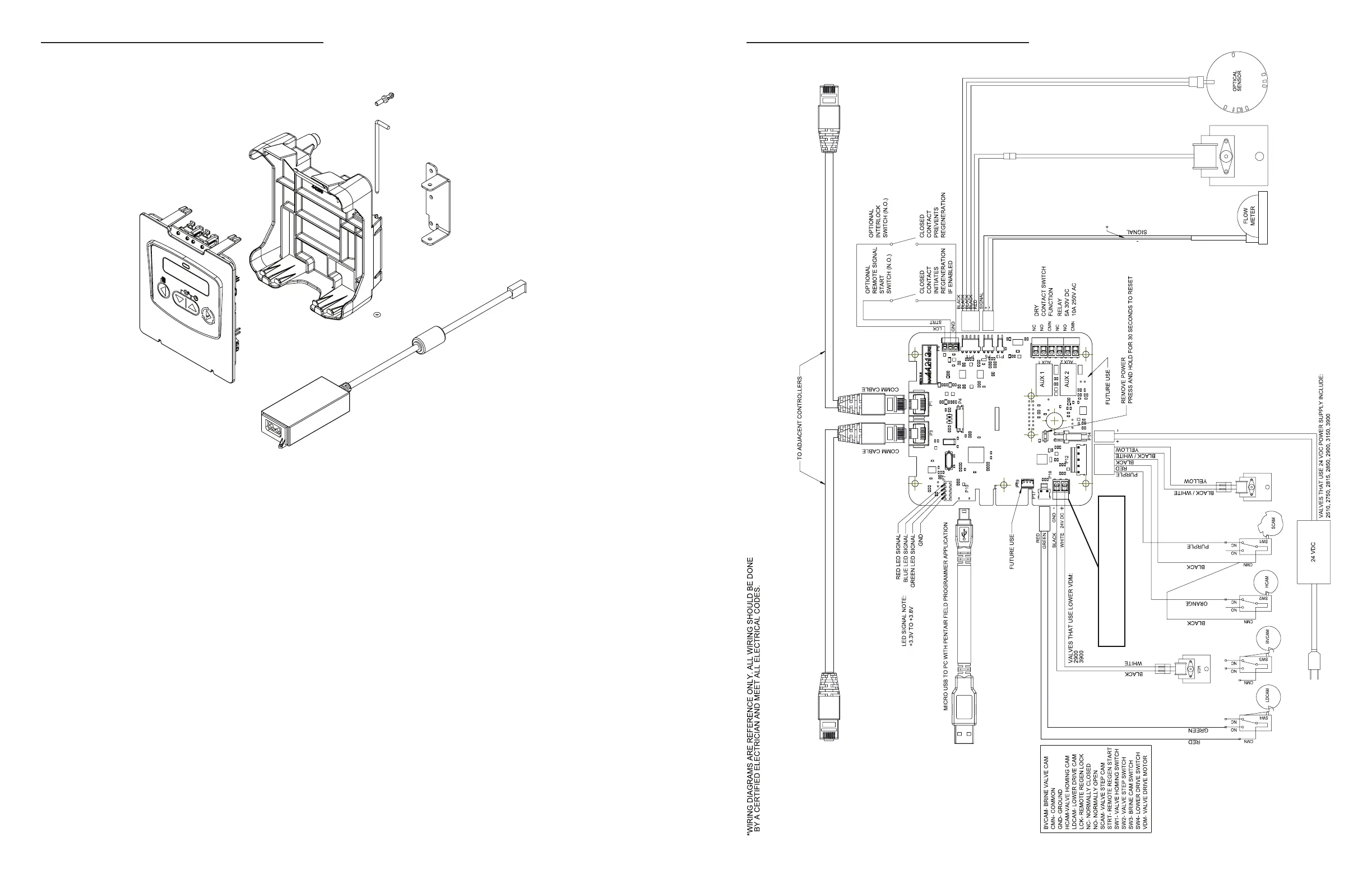

NXT TO NXT2 CONVERSION KITS
62121 Rev A
NXT2 WIRING DIAGRAM
VDM
VDM
IMPORTANT: DO NOT USE P18 TO POWER NON-PENTAIR DEVICES; USE AUX1 & AUX2 INSTEAD
44334 Rev B
16 • Pentair Fleck NXT2 Timer Pentair Fleck NXT2 Timer • 17
