INTELLIFLO3™ VSF / INTELLIPRO3™ VSF Variable Speed and Flow Pump Installation and Maintenance Guide
Relay Settings
Pump Dashboard ˃ Device Settings ˃ Relays
The following functionality is only available if the Pentair
Relay Control Board (P/N 356365z -- sold separately)
has been installed on your pump.
The relay board includes two high-voltage terminals
capable of controlling pool lights, salt chlorine
generators, booster pumps or other ltration system
components. One terminal is intended for 5A max low-
current connections and the other for 16A max high-
current connections.
Tap EDIT to view and edit your connected devices:
1- Device Type: Select the device connected to a
particular relay.
• RELAY 1 Options: Lights, Salt Cell or Other
• RELAY 2 Options: Lights, Salt Cell, Booster
Pump or Other
Note: If a relay is designated "Booster Pump", the
pump will rst ensure the Booster Pump has water
by delaying power to the relay until the pump has
run for two minutes.
If the pump is already running a program then there
will be no delay.
2− Device Nickname: Enter the name you want your device to display on Program Setup screens.
3− Speed/Flow Dependent: Check this box to ensure the relay is only activated when the pump is running.
Priming Parameters
Pump Dashboard ˃ Device Settings ˃ Priming Parameters
All priming settings can be edited and set from this screen.
Tap EDIT to view and edit the following priming
settings:
1- Enabled/Disabled: ENABLED allows the pump to
detect whether or not the system is properly primed
for pump startup.
If prime is not detected the pump will enter a
priming cycle, based on the settings below.
2− Priming Speed: Set the speed the pump will run
during a priming cycle.
3− Max Priming Duration: Set the maximum amount
of time the pump will attempt to prime.
If the pump does not achieve prime during this time
a priming error will display and the pump will stop.
4− Priming Range: Set the sensitivity of pump prime detection.
Lower settings require higher ow to detect a successful prime.
5− Priming Delay: Set the amount of time the pump remains at priming speed before transitioning to the
selected program.
6− Loss of Prime: ENABLED allows the pump to detect low-ow or no-ow situations while running.
If a loss of prime is detected the pump will pause and attempt to prime, based on the settings above. If
priming is successful the pump will continue programmed operation.

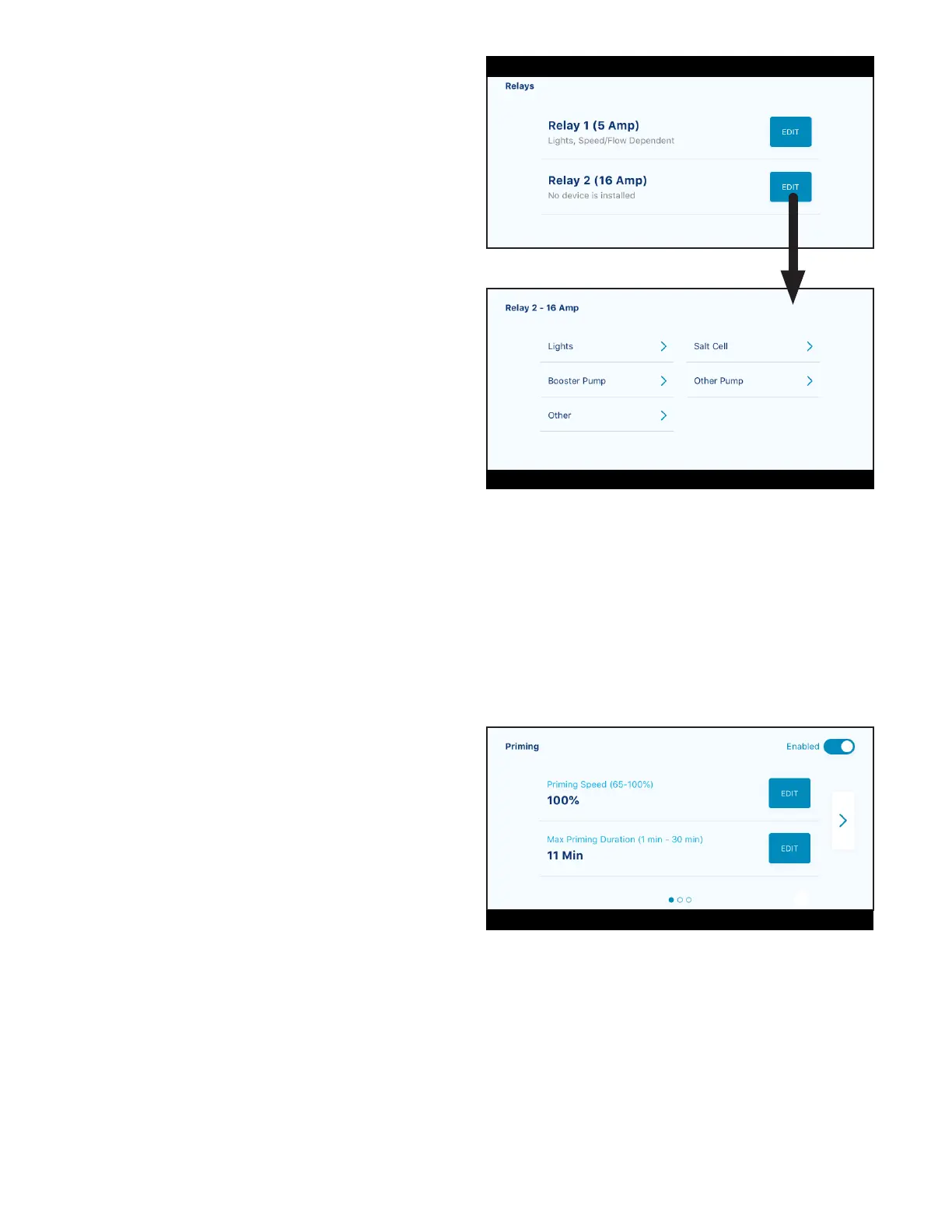

"RELAYS" SCREEN
"RELAY SETUP" SCREEN
"PRIMING PARAMETERS" SCREEN
