7
INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s GuideINTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
Stopping and Starting the Pump
Starting the Pump
1. Be sure the pump is powered on and the green
power LED is on.
2. Select one of the program buttons, then press the
Start/Stop button (LED on) to start the pump. The
pump will go into priming mode if priming feature
is enabled.
Stopping the Pump
1. Press Start/Stop to stop the pump.
When servicing equipment (filters, heaters, chlorinators
etc.), disconnect the communication cable, and switch
OFF circuit breaker to remove power from the pump.
Note: The pump can automatically restart if the com-
munication cable is connected.
Operating the Pump at Preset Speeds
The pump is programmed with four default speeds of 750,
1500, 2350 and 3110 RPM. Program buttons 1-4 are for
each of the preset speeds as shown below.
1. Be sure the pump is powered on and the green
power LED is on.
2. Press the Program button (1- 4) corresponding to
the desired preset speed and release quickly. The
LED above the button will turn on.
3. Press Start/Stop. The pump will quickly change to
the selected preset speed.
Adjusting and Saving a Pump Speed/Flow
1. While the pump is running, press the Up or Down
arrow to adjust to desired speed or flow setting.
2. Press and hold down a Program button (1-4) for
three (3) seconds to save speed/flow to the button
or press Save to save the speed/flow.
Pump Operating Modes
The IntelliFlo
®
VSF Variable Speed and Flow Pump can
be programmed in three different modes:
Programs 1-4 can be programmed in all three modes.
Programs 5-8 can only be programmed in Schedule
mode since there are no buttons on the control panel
for Programs 5-8. The default setting for Programs 5-8
is “Disabled”.
Manual
Assigns a speed or flow to one of the four Program
buttons on the control panel. This mode can only be
used for programs 1-4. Programs 1 and 2 are Manual
by default.
To operate in Manual mode, press one of the four
program buttons and then press the Start/Stop button.
The pump will run the assigned speed or flow assigned
to that program button.
Egg Timer
Programs 1-4 can be programmed to run at a certain
speed or flow and for a duration of time once a program
button is pressed.
Programs 3 and 4 are Egg Timers by default. If you
desire a different method of operation, programs 3 and
4 can be changed to Manual mode in the control menu.
To operate in Egg Timer mode, press a program button
and then press Start/Stop. The pump will run that
setting for the set amount of time and then turn off.
Schedule
Programs 1-8 start and stop at a specific time during a 24
hour period. Speeds or flows programmed in Schedule
mode will override any manually selected speed or flow
once the next Schedule command commences.
Program Types
This pump can run saved programs at either constant
speeds or constant flow rates. This gives the user the
ability to precisely assign the output from the pump
so that no energy is wasted and the job is completed
accurately.
Set Flow
Schedule
Egg Timer
Set Type
Set Flow
Set Type
Set Start Time
Set Stop Time
Set Flow
Set Speed
Set Flow
Set Type
Set Flow
Set Flow
Program 1-4
Schedule
Default: Disabled
Set Type
Set Start Time
Set Flow
Set Flow
Program 5-8

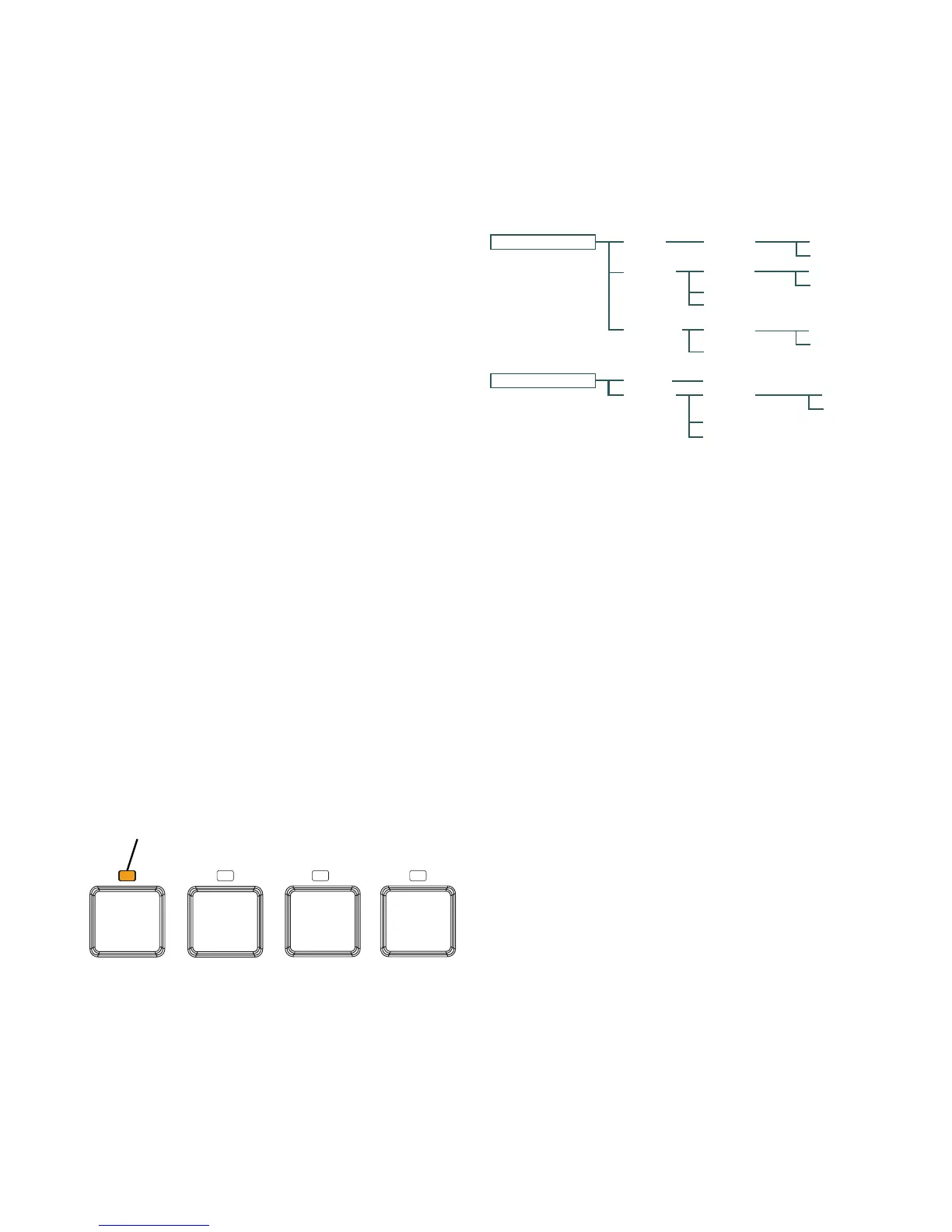

Program Menu Tree Options
