INTELLIFLOXF
®
and INTELLIPROXF
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
REPLACEMENT PARTS
Item
No.
Description
IntelliFloXF
Part #
IntelliProXF
Part #
1 Drive Kit 357521Z 352032Z
2 Drive Hardware Kit 355685
3 Wet End Assembly 400000 401000
4 Union Kit w/o Tap 410020
5 Keypad Assembly Kit 357527Z 358527Z
6 Drive 356896Z 356898Z
7 Motor 350305S 350306S
8 Motor Support Insert 070929 357160
9 Motor Base 400004Z 401004Z
10 Acorn Nut (Qty. 10) 071413
11 Lock Washer (Qty. 10) U43-12SS
12 Flat Washer (Qty. 6) 072184
13 Seal Plate 400002 401002
14 Mechanical Seal 17351-0101S
15 Seal Plate O-Ring 351446
16 Impeller Assembly 400015Z
17 Impeller Screw Washer 072172
18
Impeller Screw, Plastic-Head
(pumps mfg. before 10/7/19)
37337-6080
Impeller Screw, Metal-Head
(pumps mfg. after 10/7/19)
356073
Item
No.
Description
IntelliFloXF
Part #
IntelliProXF
Part #
19 Diffuser 400010
20 Diffuser Screws 353323
21 Diffuser O-Ring 350336
22 Lid/Locking Ring Assembly 400006 401006
23 Strainer Basket 400007Z
24 Lid/Locking Ring O-Ring 35505-1440
25
2.5” C-Clip Locking Ring
(Qty. 2)
410001
26 2.5” Union Nut (Qty. 2) 411000
27
2.5” Union Adapter w/o Tap
(Qty. 2)
410002
28 2.5” Diamond Seal Kit (Qty. 2) 410016Z
29 Drain Plug O-Ring (Qty. 2) 192115
30 Drain Plug (Qty. 2) 071131 357161
- Keypad Relocation Kit 356904Z 356905Z
-
Seal Plate Kit w/
Mechanical Seal
400031Z 400032Z
- 50 Ft. Communication Cable 350122

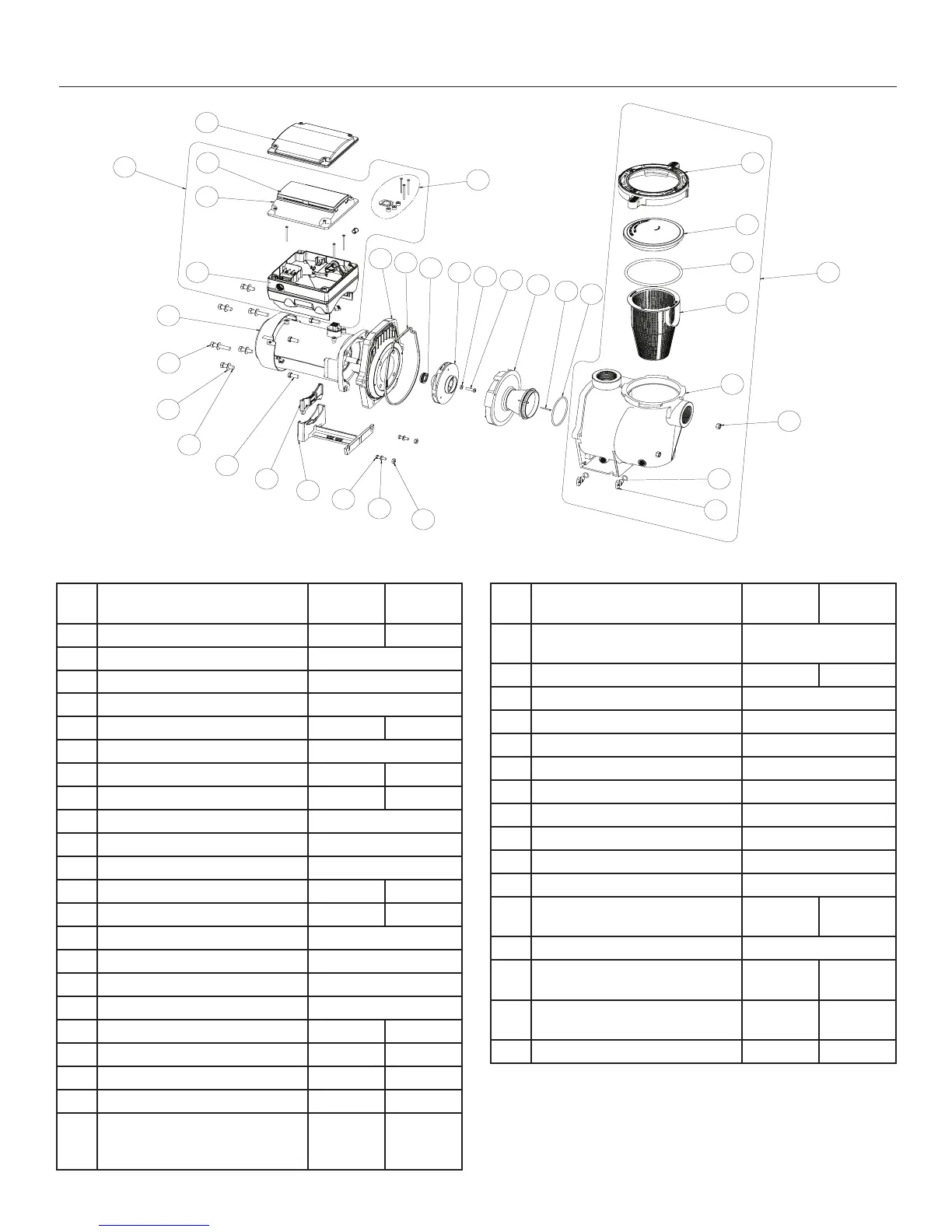

3
4
25
26
27
28
30
29
24
23
22
20
21
19
18
16
15
14
13
2
1
5
6
7
9
8
10
11
12
17
(-) Not Shown
To Next Page
