HART Multiplexer System KFD*-HM*-16
Mounting and Installation
Connecting the Device
1. Connect the terminationboard via the 26-pinribboncable K-HM26.
2. Connect the multiplexer master and additional multiplexer slaves via the 14-
pin ribbon cable K-HM14.

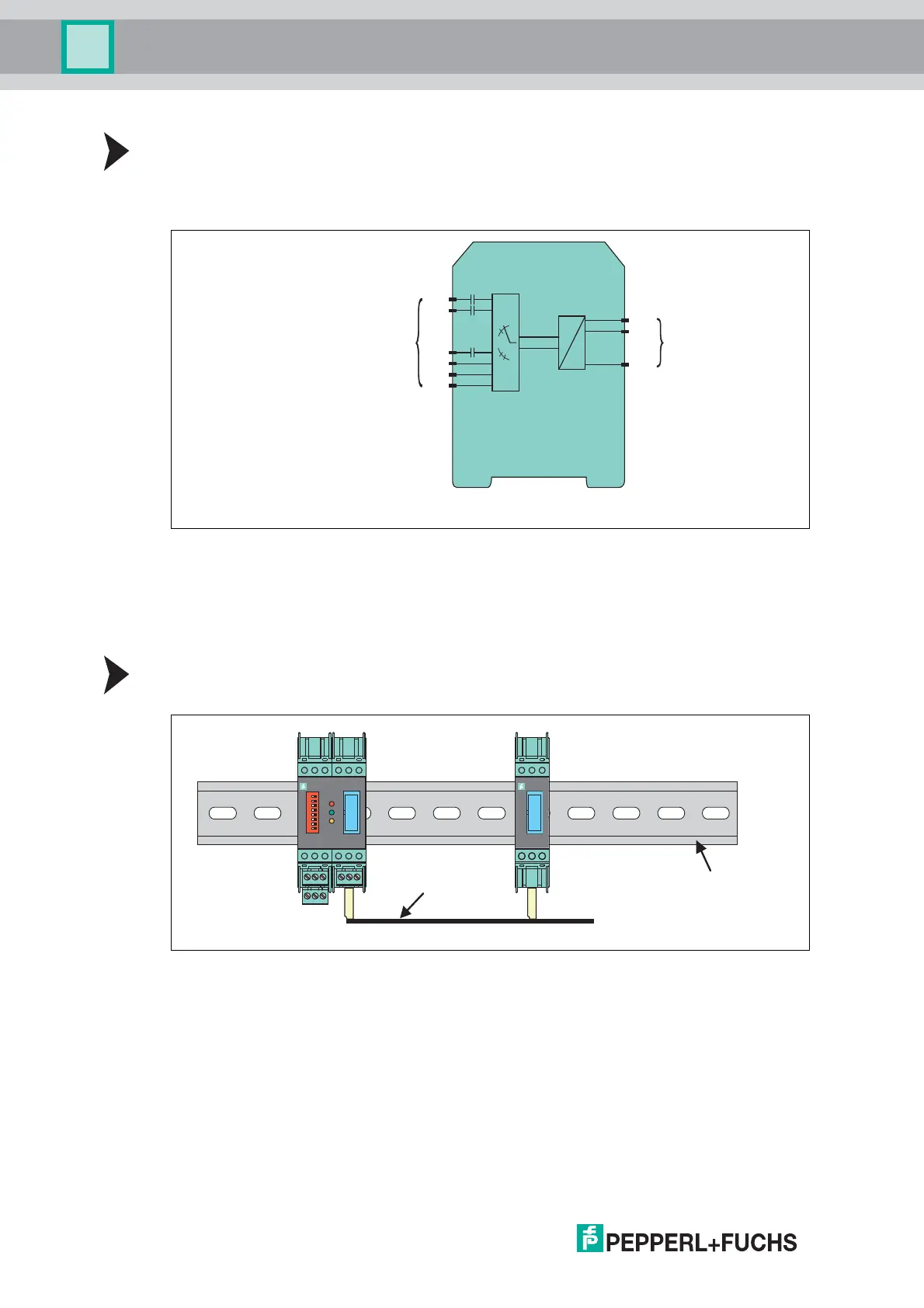

Figure 4.7 Connection of the KFD0-HMS-16 HART multiplexer slave
4.5.1 Supplying the Multiplexer Slaves
The multiplexer slaves are supplied with power from the multiplexer master
via the 14-pin ribbon cable.
Connecting the Multiplexer Slave Power Supply
Connect the multiplexer slave to the multiplexer master via the 14-pin ribbon cable K-HM14.
Figure 4.8
KFD0-HMS-16
1
2
23
...
...
1
2
14
...
Termination
Board
KFD2-HMM-16/
KFD0-HMS-16
24
25
26
Zone 2
HART
14-pin ribbon cable
DIN mounting rail
1
2
3
4
5
6
7
8
19
1713 1816
20
14
21
15
KFD0-HMM-16
KFD0-HMS-16
