HART Multiplexer System KFD*-HM*-16
Mounting and Installation
2018-04
25
4.5.2 Connection between Multiplexer Master and Multiplexer Slaves
The multiplexer slaves are connected to the multiplexer master via the 14-pin ribbon cable.

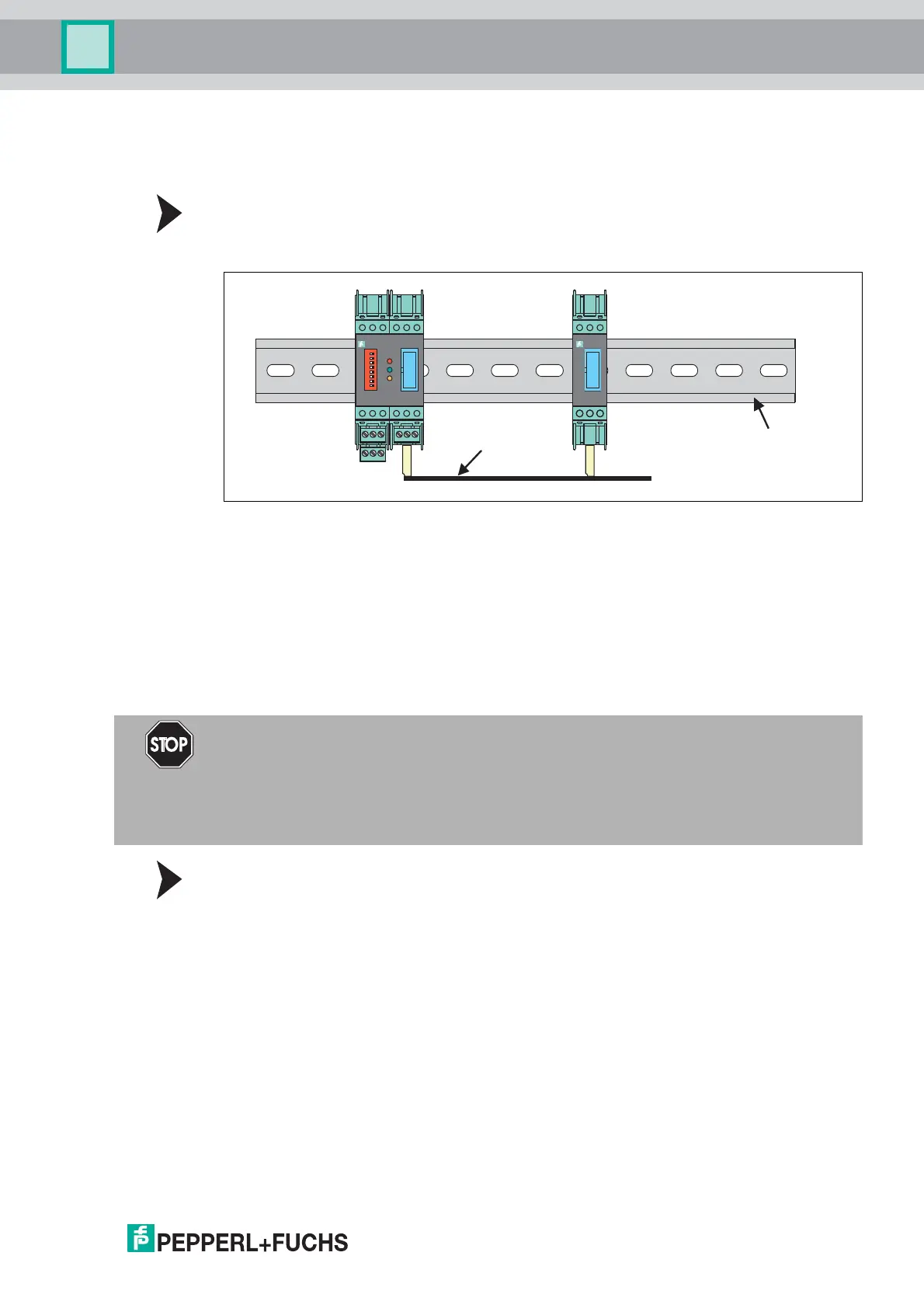

Connecting Multiplexer Master and Multiplexer Slaves
Connect the multiplexer master and the multiplexer slaves via the 14-pin ribbon cable
K-HM14.
Figure 4.9
4.5.3 Connecting the Multiplexer Devices to the Termination Board
The device is connected to the termination board via a 26-pin ribbon cable. The device has a
26-pin IDC socket on the front of the device for this purpose. 16 cables are intended for
the HART signal of the analog measuring circuits of the field devices. The remaining 10 cables
are connected to ground. For the assignment of the IDC socket, see chapter 9.2.
Pepperl+Fuchs provides special termination boards. Various connection options are available
for these termination boards.
Connecting Multiplexer Devices, Field Devices, and the Termination Board
Connect the multiplexer device to the termination board via the 26-pin ribbon cable K-HM26.
See chapter 3.4.
14-pin ribbon cable
DIN mounting rail
1
2
3
4
5
6
7
8
19
1713 1816
20
14
21
15
KFD0-HMM-16
KFD0-HMS-16
Danger!
Explosion hazard from exposed conductors
Exposed conductors of inadequately attached cables can cause sparks that can ignite
the surrounding potentially explosive atmosphere.
When installing the device ensure that the cables are adequately attached.
