Peri MULTIFLEX - A4 Guardrails, Stopend Formwork; Slab Edge Guardrails; Casting Segment Guardrails; Guardrail Assembly

17

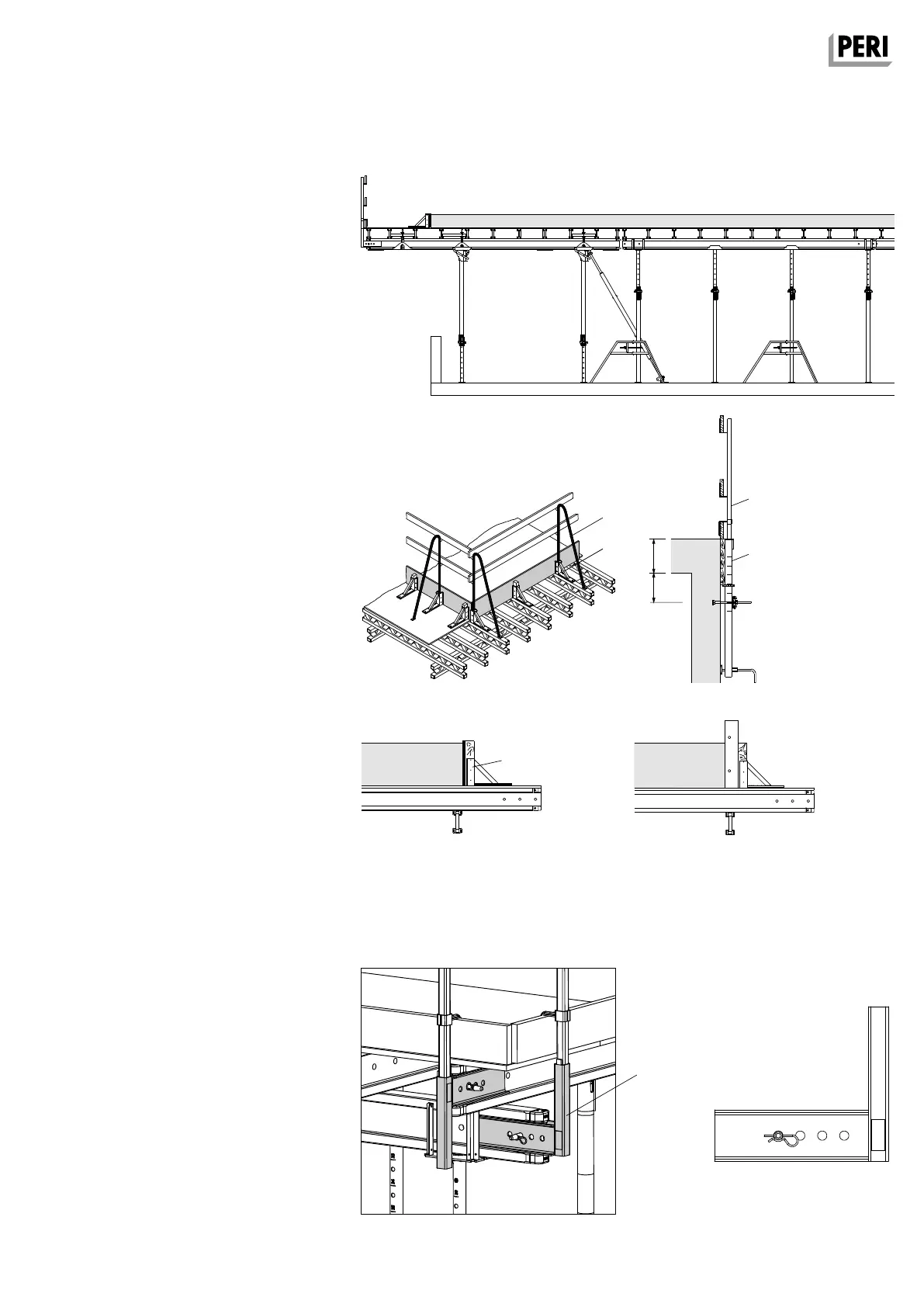

Guardrails at the slab edge with slab
tables
The open edge of the building is secured
with PERI slab tables.
(Fig. A4.01)
See e.g. PERI VARIODECK assembly
instructions.
Guardrails on the casting segment
with Stopend Angle.
Assembly
The Stopend Angle AW (11) or Plastic
Stopend Angle can be fixed in the girder
longitudinal direction and laterally to the
girder.
– 8 wire nails ø 3.1 x 65
(6 pieces at front, 2 pieces at rear,
Item no. 018280).
– With Clamp for fixing to the girder or
timbers.
– Insert Handrail Post AW (12) and nail
securely at rear end. (Fig. A4.02)
With conventional stopends.
(Fig. A4.04)
With panel formwork.
(Fig. A4.04a)
With Slab Stopend Bar 105 (13) and
Handrail Post HSGP-2 (14).
(Fig. A4.03)
Guardrails
Secure guardrail boards with wire nails!
Technical data
Permissible widths of influence:
see PERI Design Tables
– Stopend Angle AW
– Plastic Stopend Angle
– Slab Stopend Bar 105
Guardrails with Guardrail Holder
GT 24 / VT 20 and Handrail Post
HSGP-2
Permissible width of influence for
HSGP-2 2.10 with guardrail boards.
(Fig. A4.05)
When using VT 20 formwork girders,
only use holes 1 - 3 on the handrail post
(16)! (Fig. A4.05a)
Fig. A4.01
Fig. A4.02
Fig. A4.04
Fig. A4.04a
Fig. A4.03
Fig. A4.05 Fig. A4.05a
min. 10 max. 50 cm
11
4321
12
11
14
13
16
A4 Guardrails, Stopend Formwork
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
