Peri MULTIFLEX - A6 Beams, Stopend Formwork; Beam Formwork UZ Details; UZ Beam Bracket 40 Influence Width

20
With Beam Formwork UZ
For beams up to h = 80 cm
Consisting of UZ Beam Bracket 40 (15a)
and UZ Beam Width Adjustment Bar 80
(15b).
– No formwork tie up to h = 80 cm.
– Cross-sections are to be formed
continuously.
– Girders, timbers or, e.g. TRIO ele-
ments, can be used as side and slab
formwork.
– For extra-wide beams, the perforated
rails can be coupled together.
Max. beam widths
for side plate width b = 10 cm.
1 x UZ Beam Width Adjustment Bar
80 = 45 cm
2 x UZ Beam Width Adjustment Bar
80 = 135 cm
1 x UZ Beam Width Adjustment Bar
129 = 95 cm

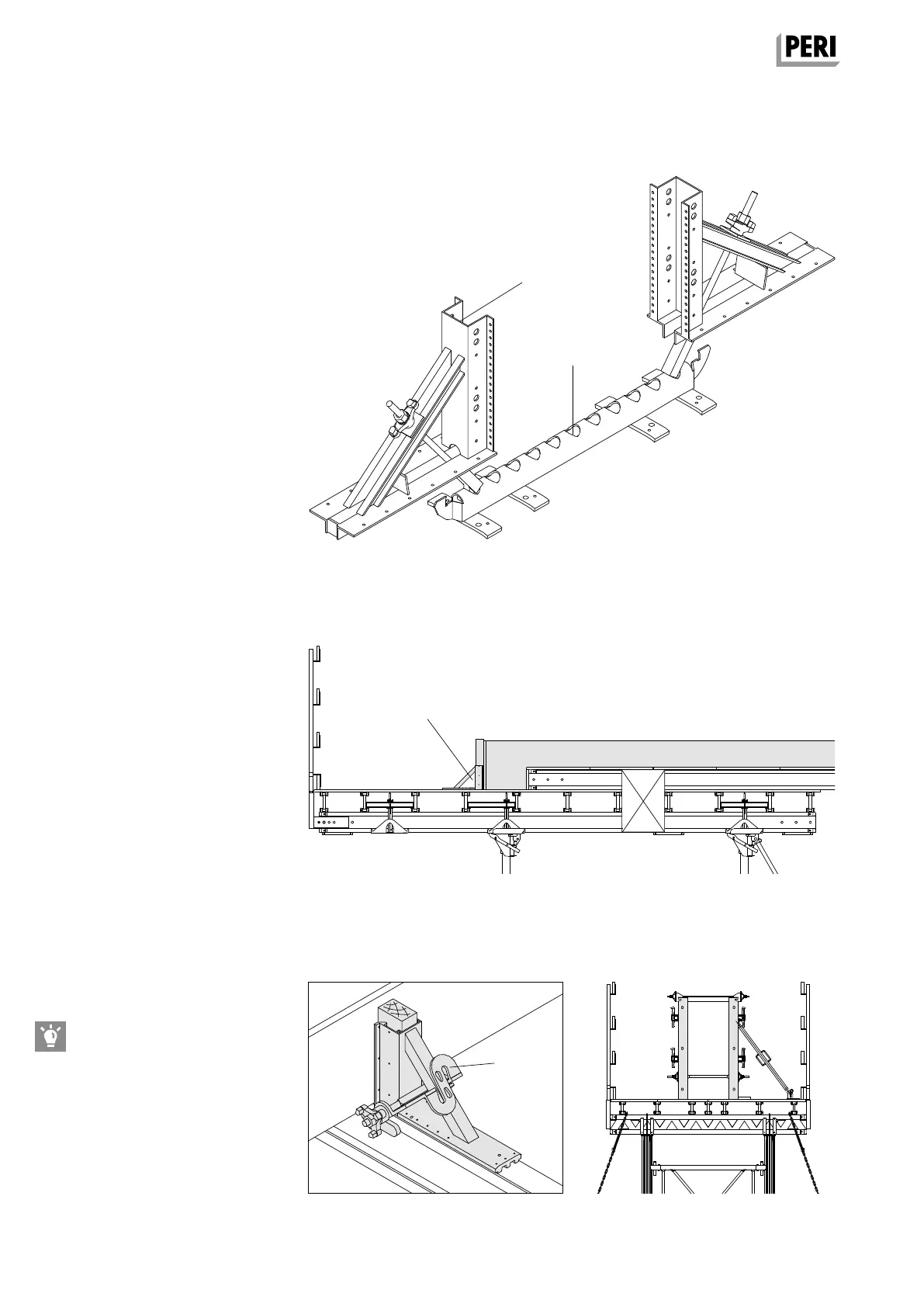

(Fig. A6.01)
Fig. A6.01
11
11a
With Stopend Angle AW
For beams up to h = 60 cm
The Stopend Angle (11) can be nailed
to the plywood formlining as stopend
formwork up to h = 40 cm.
(Fig. A6.02)
With the AW Clamp 8-10, larger beams
are possible.
(Fig. A6.03)
TRIO, MAXIMO, DOMINO or HANDSET
elements can be used as side formwork.
(Fig. A6.04)
Used plywood formlining can be utilised
for the working areas.
Fig. A6.02
Fig. A6.04Fig. A6.03
15a
15b
A6 Beams, Stopend Formwork
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
