21

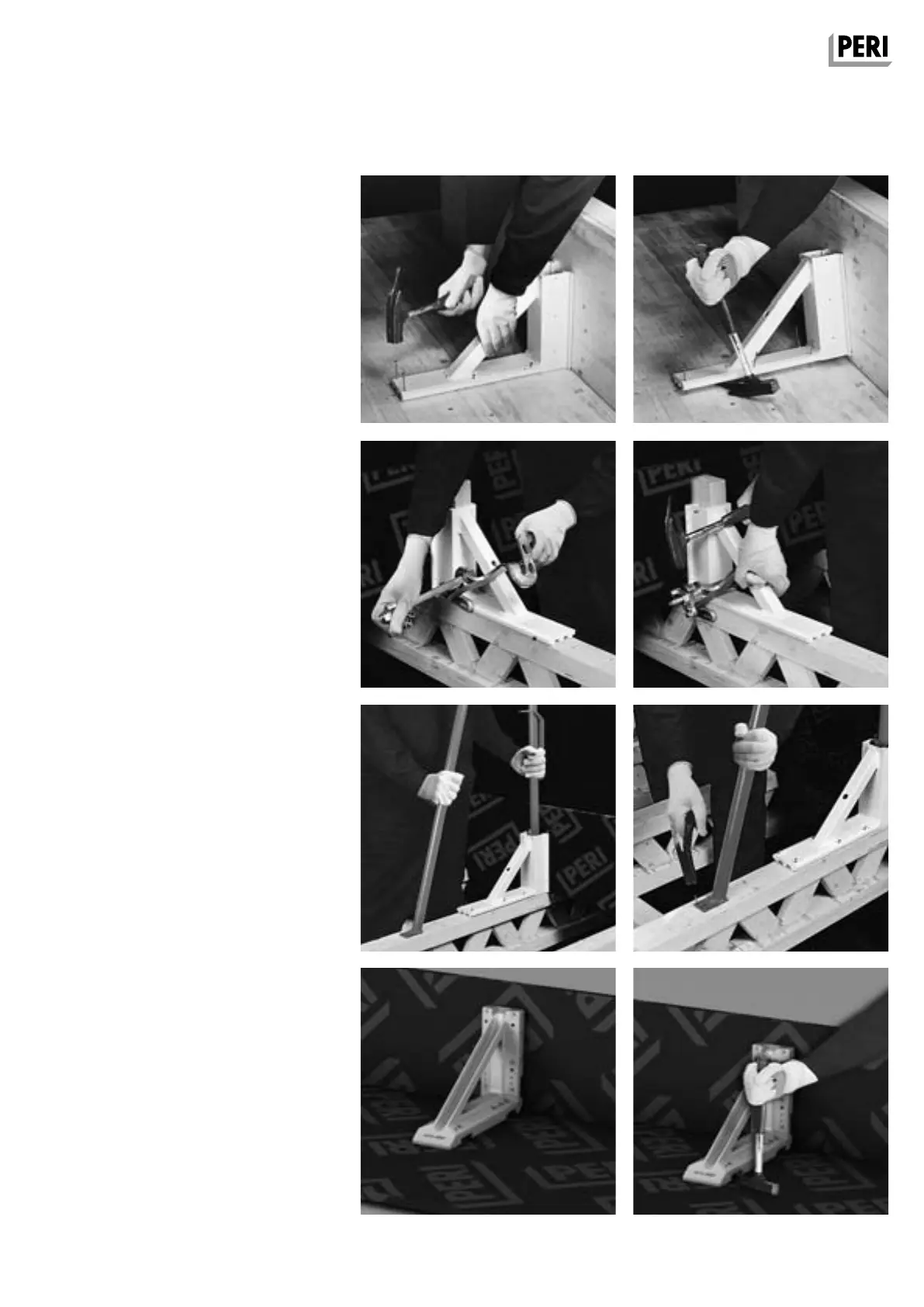

With Stopend Angle AW
Fixing with nails
– Nailing is carried out on the plywood
formlining, boards, planking, panels or
timbers.
– Nailing at an angle ensures better fix-
ing as well as looking after the girders
and plywood.
– The striking joint allows easier striking.
Fixing with AW Clamps 8-10
– Push the AW Clamp 8-10 over
Stopend Angle AW.
– Press the Stopend Angle AW together
with the clamp firmly against the
stopends.
– Tighten the nut of the Clamp AW
with the hammer.
Assembly of the guardrails
– Mount the AW Handrail Post on the
Stopend Angle.
– Insert locking device of the Handrail
Post.
– Secure the Handrail Post on the girder
or plywood formlining using 2 nails
Ø 3.1 x 80.
With Plastic Stopend Angle
Nail with 8 nails Ø 3.1 x 65 mm
(6 at the front and 2 at the back).
A6 Beams, Stopend Formwork
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
