Peri MULTIFLEX - Formwork Assembly Combinations

16
Formwork Assembly

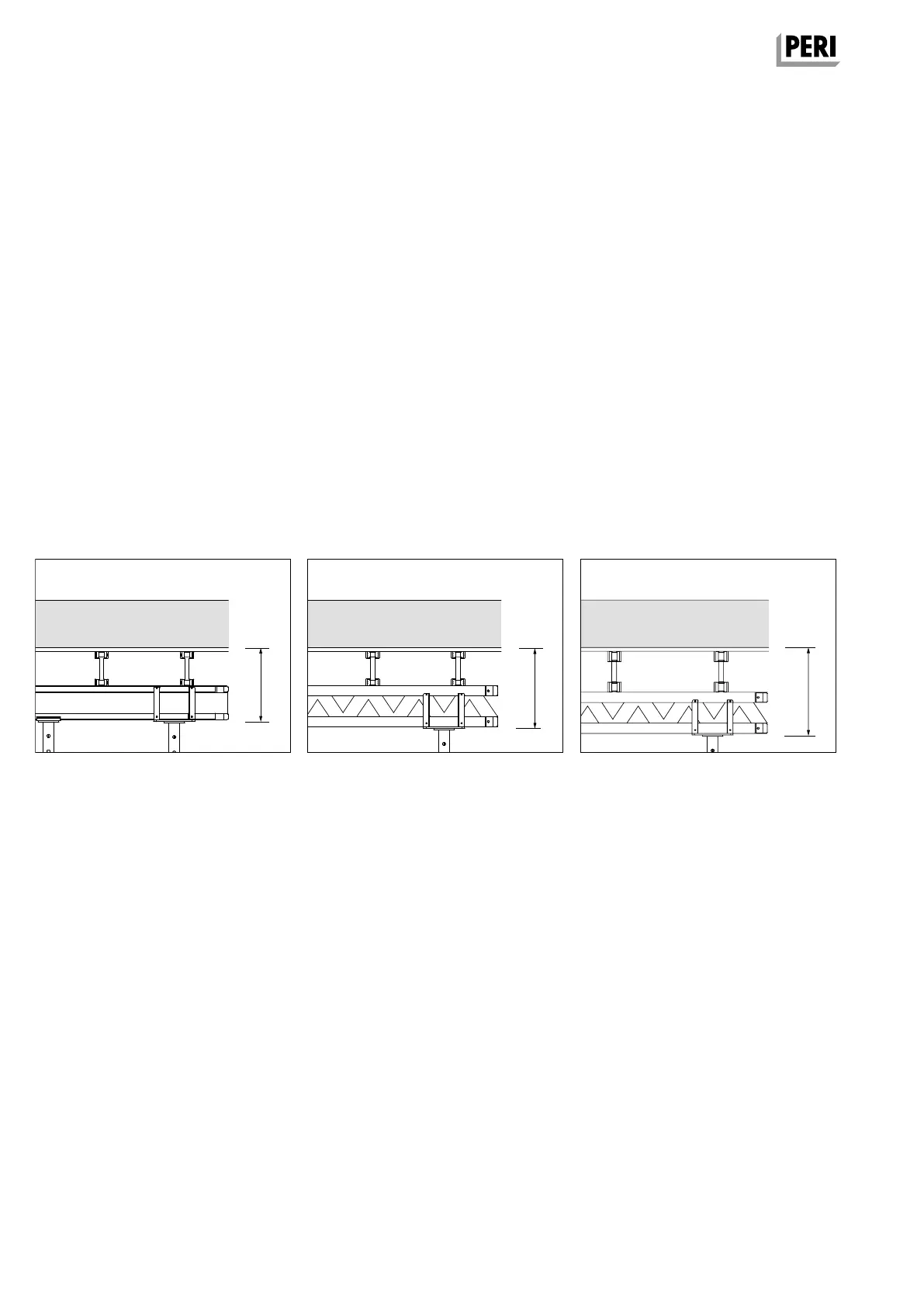

3 combinations are possible with GT 24
and VT 20 girders:
1. VT 20 / VT 20
(Fig. A3.01)
2. VT 20 / GT 24
(Fig. A3.02)
3. GT 24 / GT 24
(Fig. A3.03)
2. VT 20 / GT 24
21 mm plywood
VT 20 cross beam
GT 24 main beam
h = 46 cm
3. GT 24 / GT 24
21 mm plywood
GT 24 cross beam
GT 24 main beam
h = 50 cm
1. VT 20 / VT 20
21 mm plywood
VT 20 cross beam
VT 20 main beam
h = 42 cm
Fig. A3.01 Fig. A3.02 Fig. A3.03
42
46
50
A3 Shuttering
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
