Peri MULTIFLEX - Cantilever Details; Fall Hazard Warning; Tipping Risk Warning

15
c

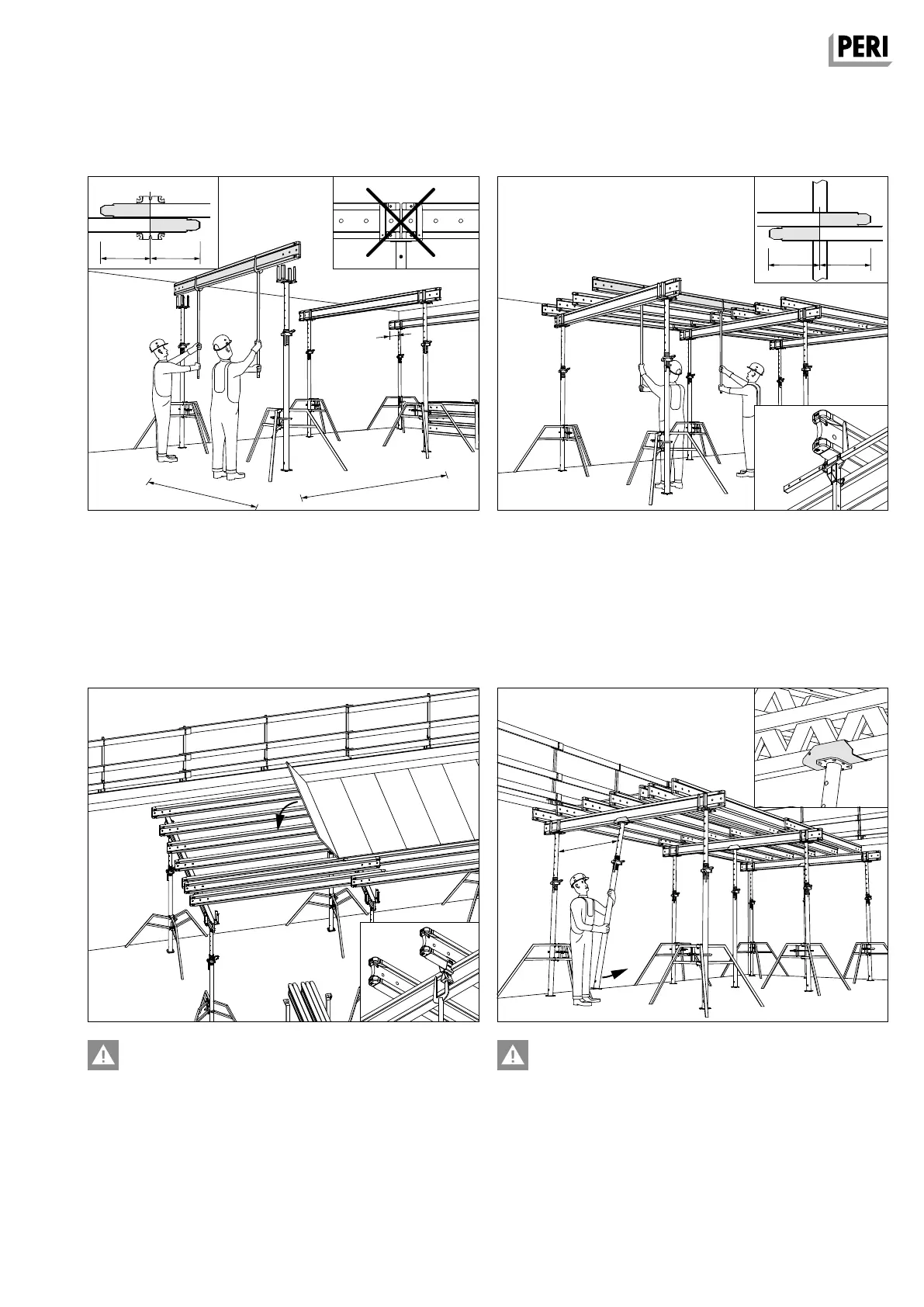

Level Crosshead props. Install main beam from below with
the Erection Bar.
The Crosshead securely supports one or two main beams
with no risk of tipping.
Cantilever: VT 20 max. 50 cm
GT 24 max. 45 cm
Do not begin concreting work on the cantilever.
Fit cross beam from below with the Erection Bar.
Adjust the cross beam so that plywood formlining joints are
always positioned on a cross beam or pair of girders.
Alternative:
Install and align cross beams with Distance Device.
Girder overlap on both sides:
VT 20 min. 15.0 cm
GT 24 min. 16.3 cm
Secure cross beam against tipping, e.g. with Flexclip
MULTIFLEX System.
Fit plywood formlining and secure with nails.
Level formwork and spray, e.g. with PERI Bio Clean.
Attention: risk of slipping!
Fall hazard!
Mount guardrails before shuttering and according to
valid regulations!
Risk of tipping!
Ensure load effects are safely transferred!
Attach intermediate props with Clawheads in prop spacings c
on the beam. Adjust lengths of props accordingly.
GT 24 girder: see A3.
The MULTIFLEX slab formwork can now be loaded. Ensure
pallets are available on the assembly area during striking.
Main beam spacing b
x · prop spacing c
min. 15 min. 15
min. 15
max. 50
min. 15 min. 15
VT 20
VT 20
VT 20
VT 20
56
34
A3 Shuttering
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
