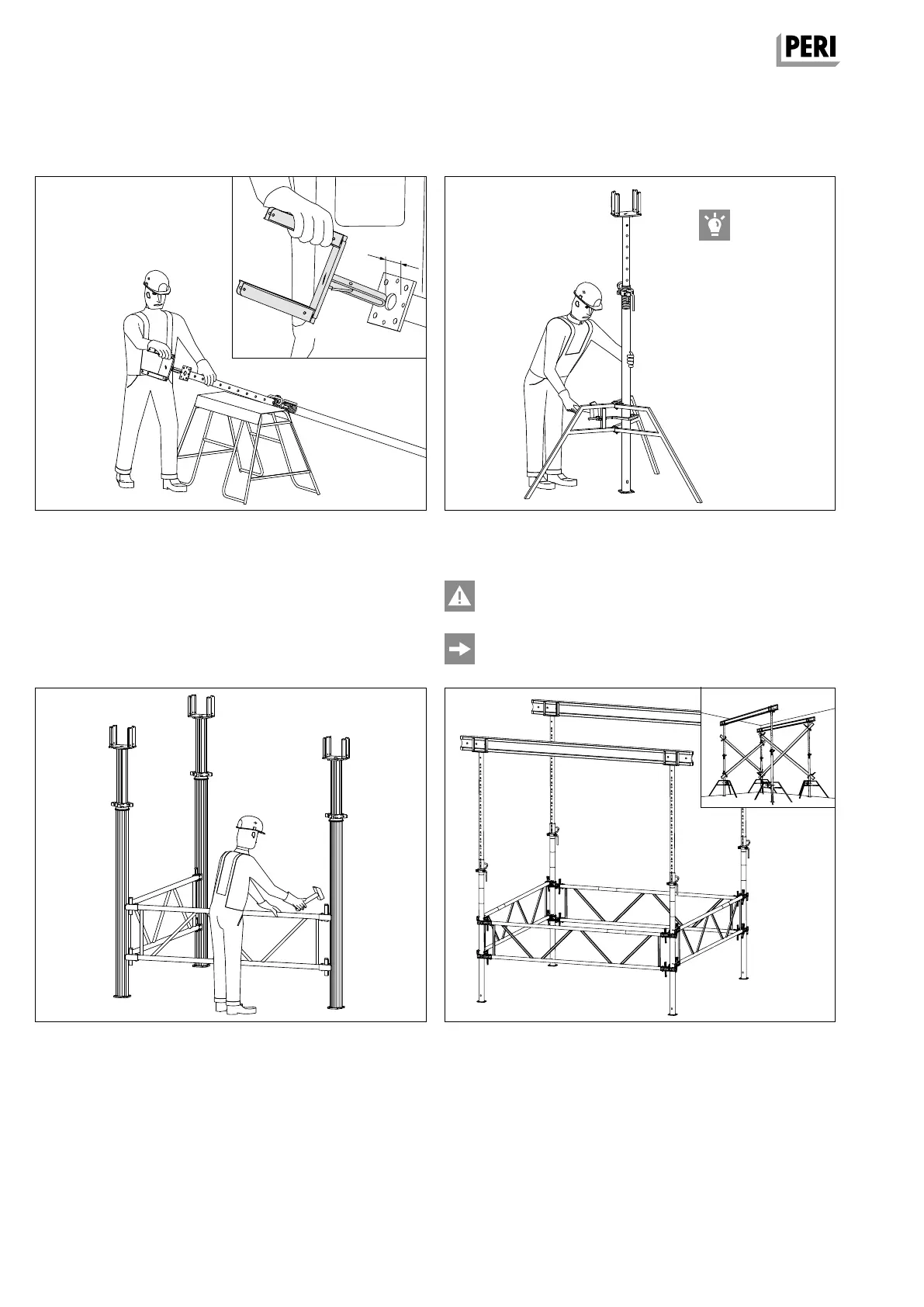

Mount Crosshead or Clawhead on the prop and lock in place
(with the self-locking coupling).
Secure other types with pins and cotter pins:
As alternative to the Crosshead:
Lowering Head 20/24 for easy lowering.
Position Crosshead props on a flat, clean and sufficiently
load-bearing surface. Secure with Tripod (assembly aid).
Formwork height > 3.0 m with MULTIPROP prop
Brace props with Frame MRK as assembly aid. For further
details, see Type Test and MULTIPROP assembly instructions.
Formwork height > 3.0 m with PEP steel tube prop
Brace props with Frame MRK as assembly aid.
Alternative:
Mount diagonal bracing as assembly aid with boards and
brace clamps.
For inclined use, separate proof of stability is
required!
Horizontal loads from the shuttering procedure can only
be transferred for formwork heights up to approx. 3.0 m.
Turn the props so
that the G-hook
can be operated.
12
40 mm
2a 2b
A3 Shuttering
MULTIFLEX Girder Slab Formwork
Assembly Instructions for Standard Configuration
