09931228D
4
Description
Peltier Controlled Single Cell

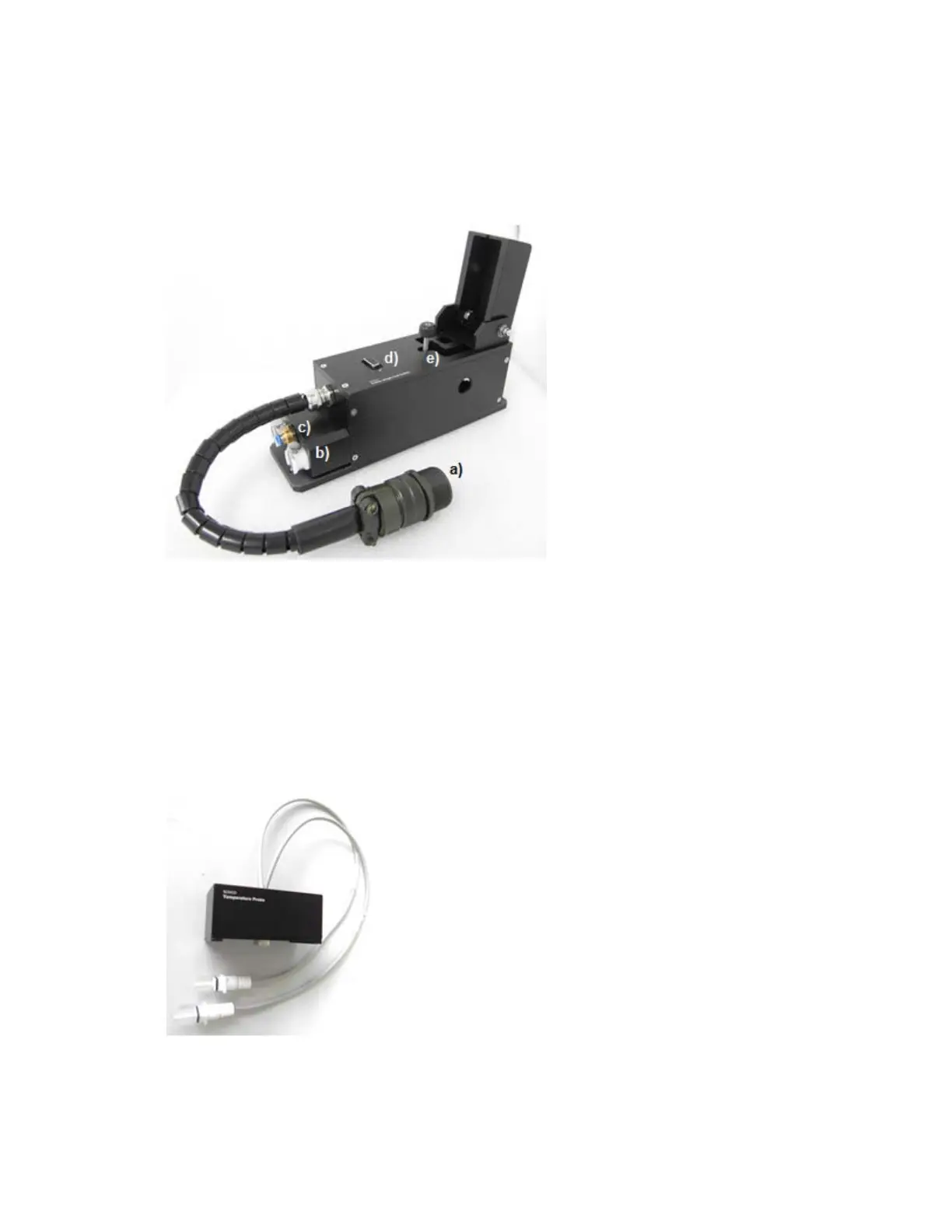

Figure 1 Lambda 265 Peltier Controlled Single Cell
a. Interface connector between Peltier Controlled Single Cell and Peltier Controller
b. Coolant Inlet/Outlet Quick Coupler
c. N
2
Gas fitting
d. Interface slot for Temperature Probe
e. Cell Lifting knob
f. Temperature Probe
Figure 2 Temperature probe Accessory
