09931228D

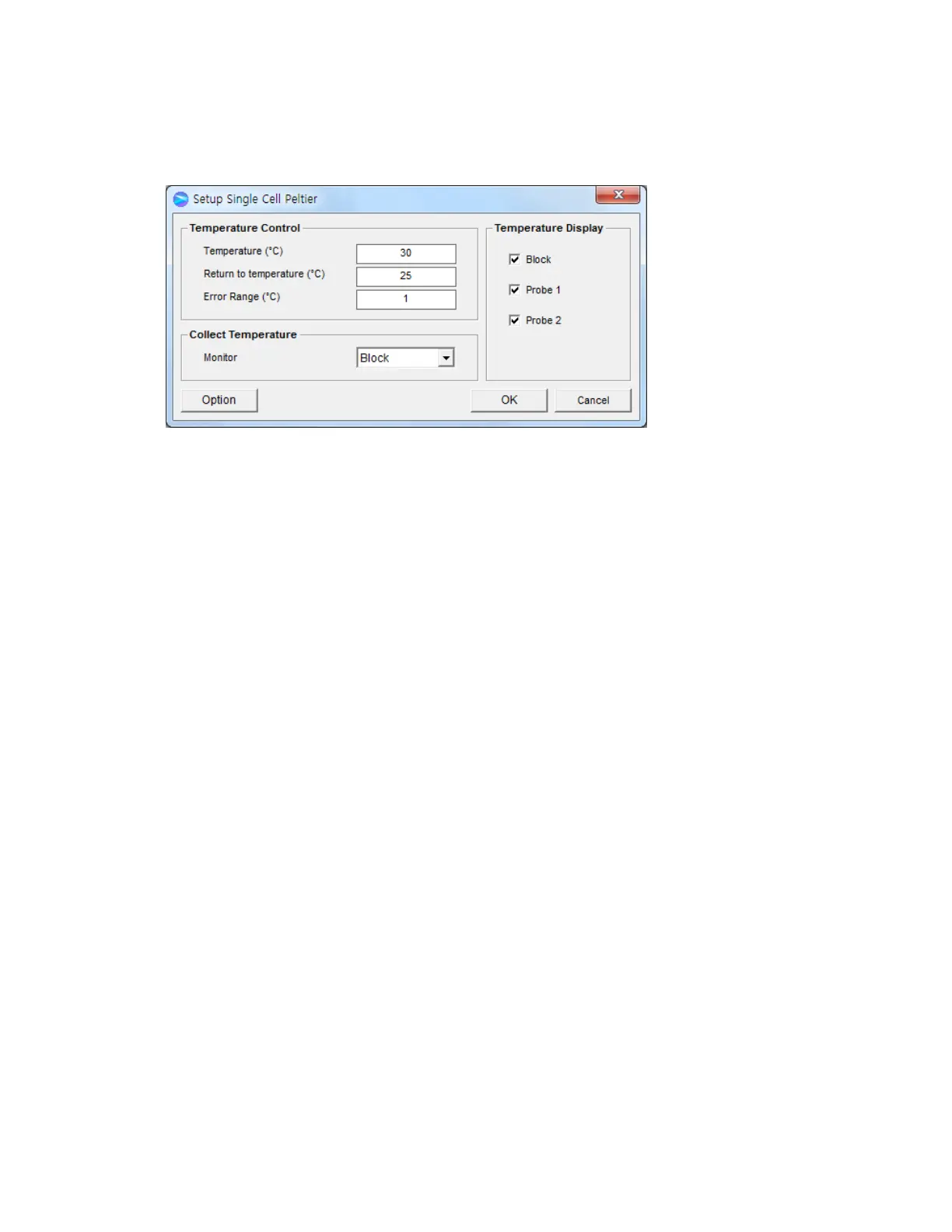

8. The Setup Single Cell Peltier window will be shown. Set parameters according to the
experiment conditions.
▶Temperature Control
a. Temperature(°C): Enter the preset temperature for the experiment.
NOTE:
Starting the temperature of experiment needs to be set up in the method window.
b. Return to temperature (°C): Enter the returning temperature after the experiment is
finished.
c. Error Range (°C): Enter the temperature tolerance between the sampling temp. and
monitored temp. The measurement will start when the temperature tolerance reaches within
the set Error Range.
Example: Set the starting temperature as 30°C and error range as 0.3°C, and the monitoring
temperature is set as the temperature of cell block. In this case, the measurement will start
when the temperature of cell block reaches between 29.7°C and 31.3°C.
NOTE:
When selecting probe for Monitor in Collect Temperature box, the slower the real heating speed
maybe, the smaller the set Error range (°C) is.
▶Collect Temperature
a. Monitor: Select which temperature will be monitored in the display panel.
- Block: The temperature of Cell Block
- Probe 1: The temperature of Probe 1
- Probe 2: The temaperature of Probe 2
Example: If Block is selected, measurement will start when the temperature of the cell block
reaches the setting temperature.
▶Temperature Display
Select which temperature will be displayed on the panel: Block, Probe 1 or Probe 2. The selected
temperature is only displayed in real time.
▶Option: This function is used to adjust temperature. It is only used for the manufacturing
process, so do not modify the values.
