Front View of Peltier Controller

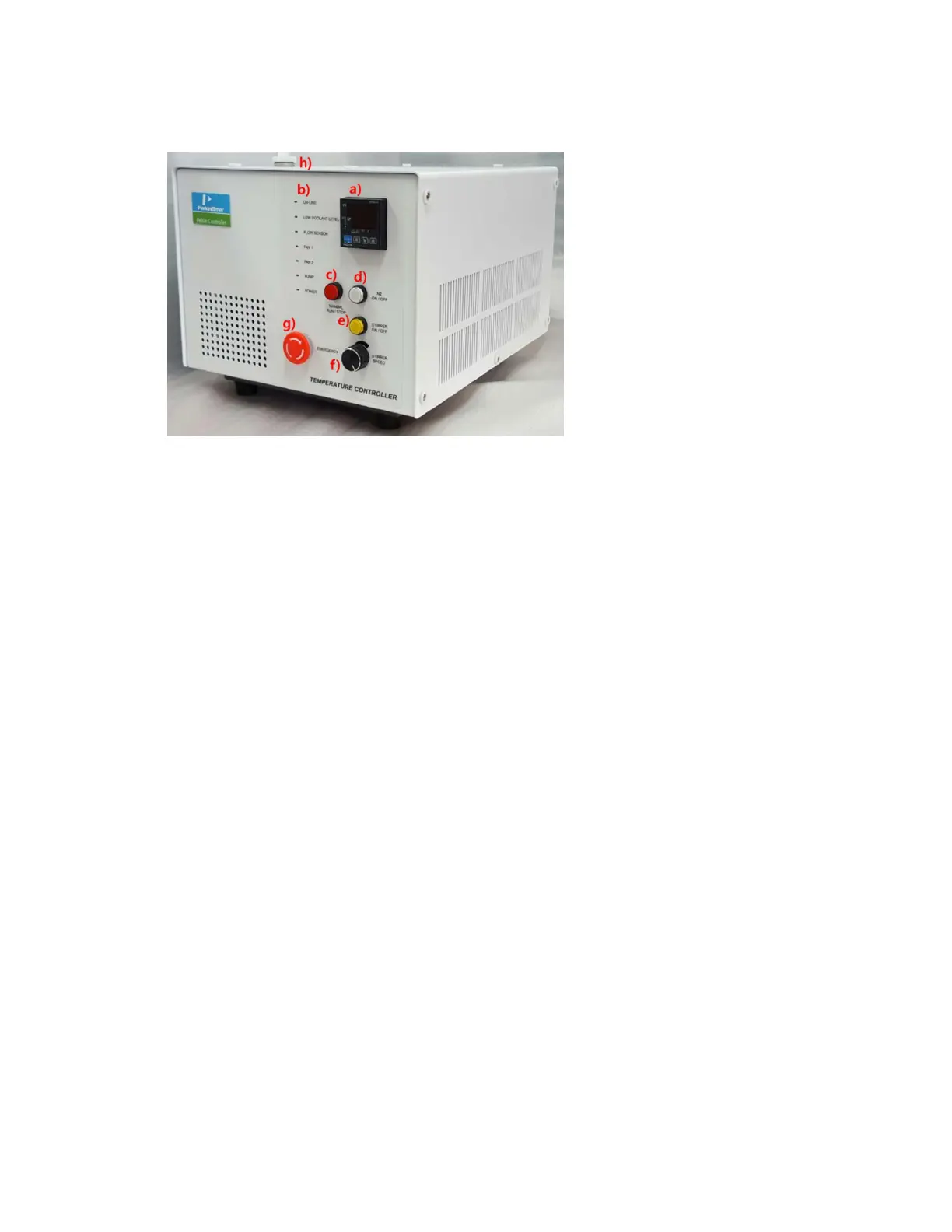

Figure 3 Front view of Peltier Controller
a. Manual touch pad with Display:Temperature Control Unit (Heating/Cooling Block)
b. LED Indicators
Display the status of the operation of Coolant Circulation, Fan, Pump, etc. (If there is any
problem in the components, Red LED will flash with a beep alarm.).
c. Manual ON/OFF button
As the Manual ON/OFF button is ON, the temperature can be controlled manually by a)
Manual touch pad with Display.
NOTE:
Manual operation is used only for the manufacturing process so it should be turned off during the
measurement.
d. N
2
gas ON/OFF button:It is used for using N
2
gas to remove the frost from the heating
and cooling.
e. Stirrer ON/OFF button: It is used for controlling of the stirring.
f. Stirrer Speed Controlling Knob: Control the stirring speed (rpm).
g. Emergency switch: Stop all operations in the emergent situation.
NOTE:
During the operation, Emergency switch should be turned off.
h. Coolant Inlet
