Fitting a Different Window to the Right-hand External
Beam Port
Before you begin, make sure you have read and understood the Warnings and Safety
Information
beginning on page 2.
1. Switch off the spectrometer, and then remove the power cable.
2. Undo the locks on the front of the spectrometer, and then open the main cover
.
For detailed instructions, refer to the
Advanced Maintenance section of the
Spectrum 100 Series User’s Guide (L1050021) or Spectrum 400 Series User’s Guide
(L1050056). These are distributed as .pdf files on the
Spectrum Manuals CD
(L1050002).
3. Using the hexagonal wrench supplied, slacken and remove the M2.5 screws securing
the right-hand external beam port cover to the main cover.
4. Remove the beam port cover and seal. Retain for further use.
5. Ensure the seal is fitted to the window and is correctly seated (Figure 2).

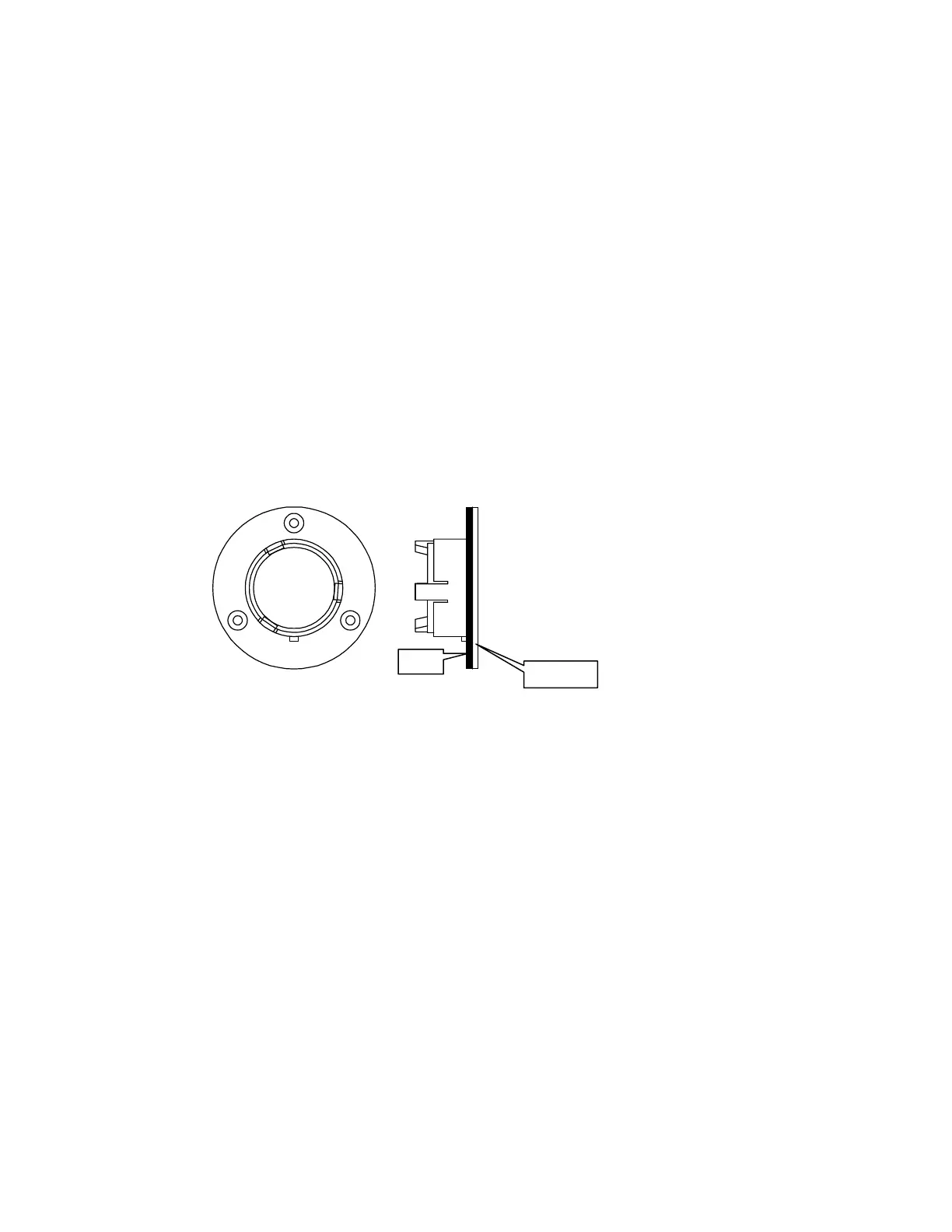

Figure 2 Seal fitted to window
Seal
Window
