SECTION X
Perama Extra Service Items M25/M30
Hurth Gearbox
Lubrication of Jabsco Water Pump
Heat Exchanger Tube Stack Engine
Preservation Lucas A127 - 55 amp
Alternator
How to check the amount of lubricating oil in the
Hurth reverse gearbox

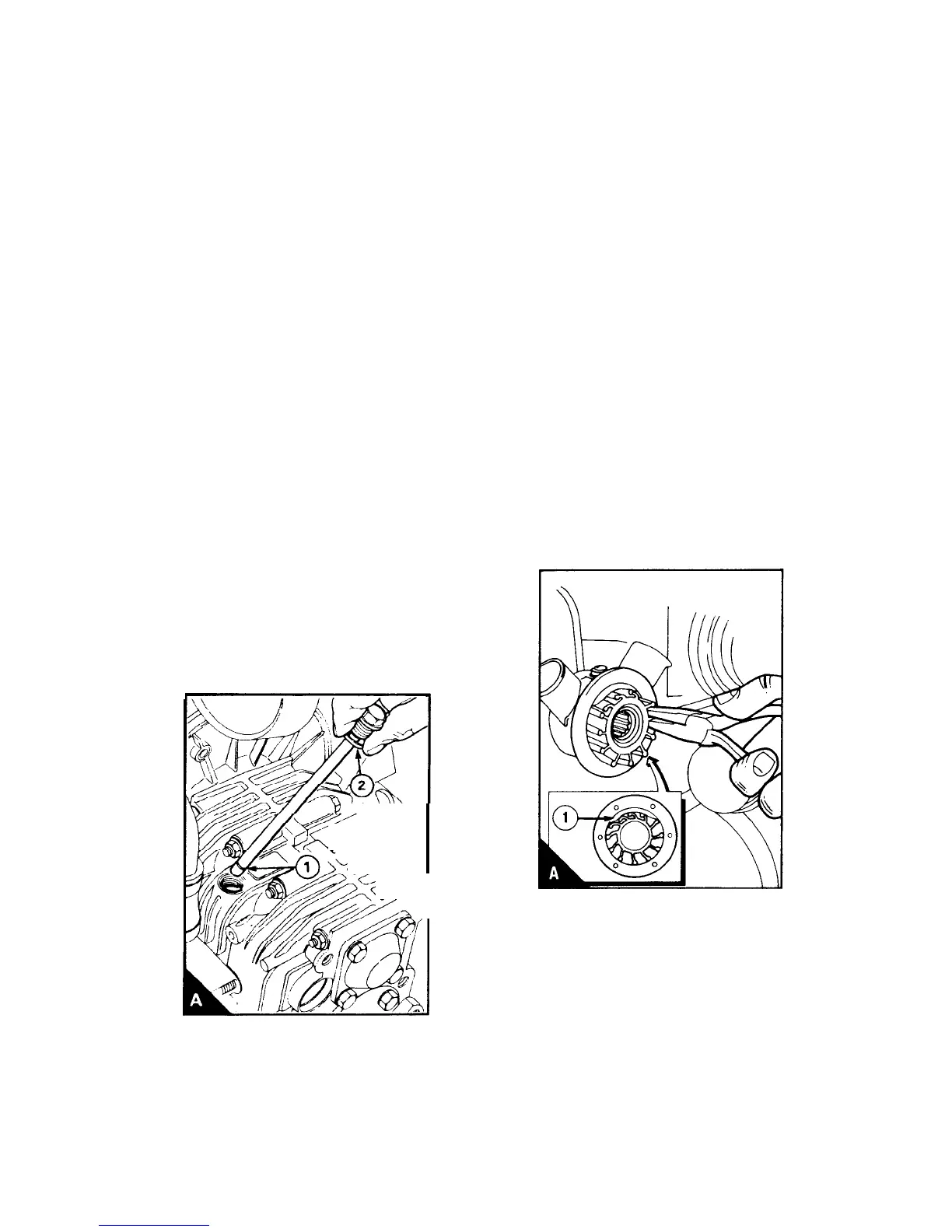

1 Release and remove the dipstick from the top of
the reverse gearbox (A).
2 Clean the dipstick and insert it into its position
but do not engage the thread.
3 Remove the dipstick and check that the
lubricating oil level is up to the groove (Al) in
the dipstick. If necessary, add automatic trans-
mission fluid, ATF type "A", through the dipstick
hole to the correct level. Do not add too much oil.
4 Ensure that the sealing ring (A2) for the dipstick is
not damaged. Fit the sealing ring and the
dipstick to the reverse gearbox.
1
1
How to check/lubricate the impeller and the drive of
the raw water pump
Attention: Do not loosen the drive housing of
the raw water pump. The alignment of this
housing has been carefully adjusted with a
special alignment tool.
1 Ensure that the seacock is closed.
2 Disconnect the hose connections at the pump.
3 Remove the four setscrews which fasten the
pump to its drive housing. Remove the pump.
4 Clean and inspect for wear the drive components
of the pump. Renew the drive adaptor and/or the
pump, if necessary.
5 Release the six screws which fasten the end
plate of the raw water pump and remove the
plate.
6 Inspect the rubber impeller for excessive wear or
for damage and renew it, if necessary. To remove
the impeller, remove the rubber end cap and then
pull the impeller from the shaft. Apply Marfak
2HD grease to the blades of the new impeller
and fit the impeller into the housing with the
blades bent anticlockwise (A). Fit the rubber
end cap.
