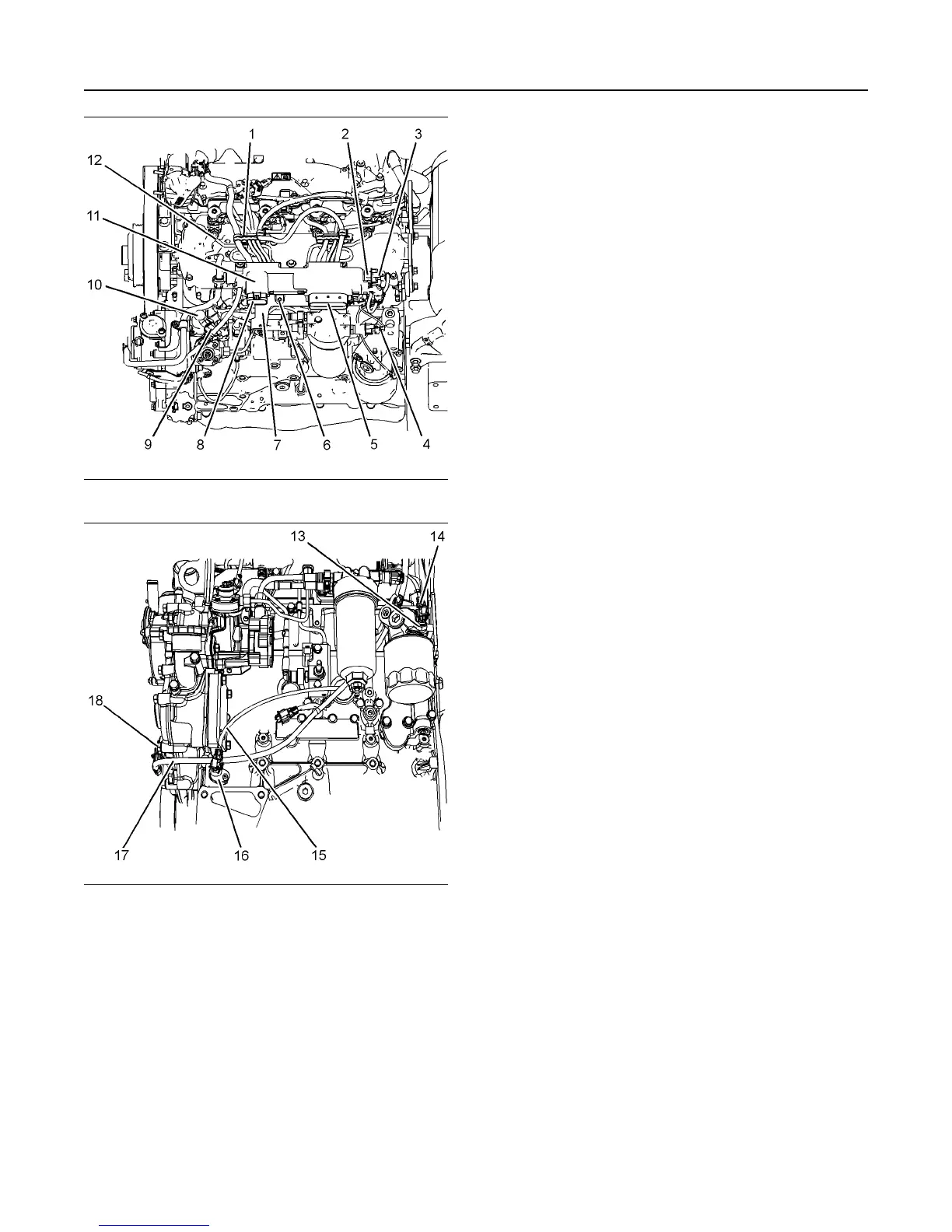

Illustration 19 g03774865
Illustration 20 g02683476
4. Disconnect the Original Equipment Manufacturers
(OEM) wiring harness assembly from connection
(5) and connection (8).
5. Open cable support clamps (1) from the wiring
harness assemblies.
6. Slide the locking tab for wiring harness assembly
(3) into the unlocked position. Disconnect wiring
harness assembly (3) from pressure sensor (2).
7. Disconnect wiring harness assembly (14) from oil
pressure switch (13).
8. If necessary, cut cable straps in order to remove
the wiring harness assemblies.
9. Slide the locking tab for wiring harness assembly
(15) into the unlocked position. Disconnect wiring
harness assembly (15) from crankshaft position
sensor (16).
10. Slide the locking tab for wiring harness assembly
(17) into the unlocked position. Disconnect wiring
harness assembly (17) from camshaft position
sensor (18).
11. Slide the locking tab for wiring harness assembly
(9) into the unlocked position. Disconnect wiring
harness assembly (9) from the fuel metering valve
(10).
12. Disconnect the wiring harness assembly from fuel
temperature sensor (4).
13. Remove bolt (6) from wiring harness assembly
(11).
14. Position the wiring harness assembly (11) away
from fuel injection lines (12).
