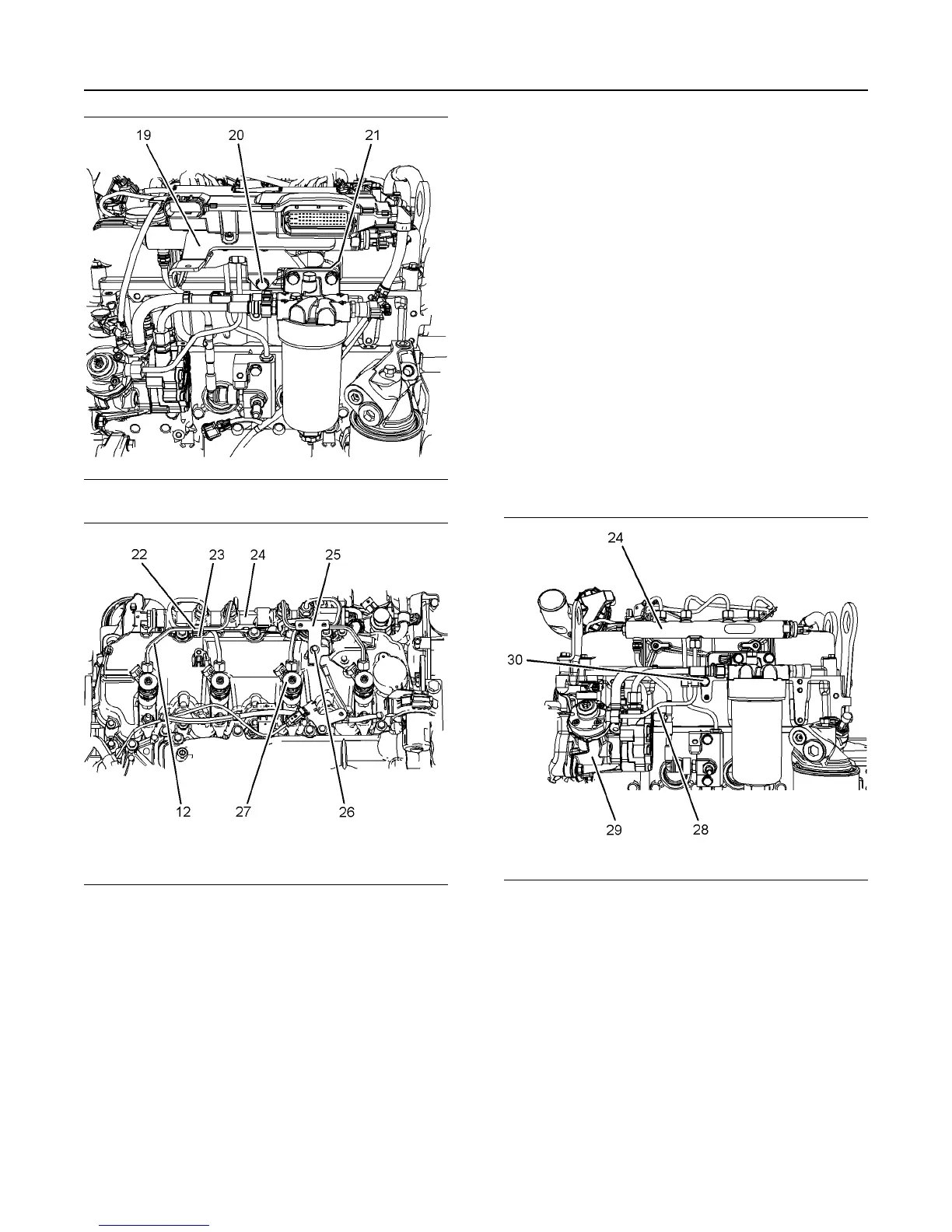

Illustration 21 g02848956
Illustration 22 g03775330
15. If necessary, remove the fuel filter base mounting
bracket (21) (not shown). Refer to Disassembly
and Assembly, “Fuel Filter Base - Remove and
Install” for the correct procedure.
16. Remove bolt (23) from tube clamp (22). Remove
tube clamp (22) from fuel injection lines (12).
Note: Make temporary marks to identify the position
of the tube clamps.
17. Repeat Step 16 in order to remove the remaining
tube clamps.
18. Remove bolt (26). Remove bracket (25) from the
valve mechanism cover.
19. Clean the area around the nuts for fuel injection
lines (12). Ensure that the area is free from
contamination before beginning disassembly.
20. Use Tooling (B) in order to disconnect fuel
injection line (12) from the electronic unit injector
(27).
21. Use Tooling (B) in order to disconnect fuel
injection line (12) from fuel manifold (24).
22. Remove fuel injection line (12). Discard the fuel
injection lines.
23. Use Tooling (A) in order to cap all open ports
immediately in fuel manifold (24) and electronic
unit injectors (27).
24. Repeat Step 19 through Step 23 in order to
remove the remaining fuel injection lines from the
fuel manifold to the electronic unit injectors.
Illustration 23 g03829598
25. Clean the area around the nuts for fuel injection
line (28). Ensure that the area is free from
contamination before beginning disassembly.
26. Remove bolt (30) from the bracket for fuel
injection line (28).
27. Disconnect fuel injection line (28) from fuel
injection pump (29).
28. Disconnect fuel injection line (28) from fuel
manifold (24).
29. Remove fuel injection line (28). Discard the fuel
injection line.
UENR4503 19
Disassembly and Assembly Section
