17
WWW
DVR or NVR
E.g IP 111.111.111.111
Port 8080
E.g IP 192.168.0.222
Port 80
LAN
DVR
TCP
8080
192.168.0.222
80

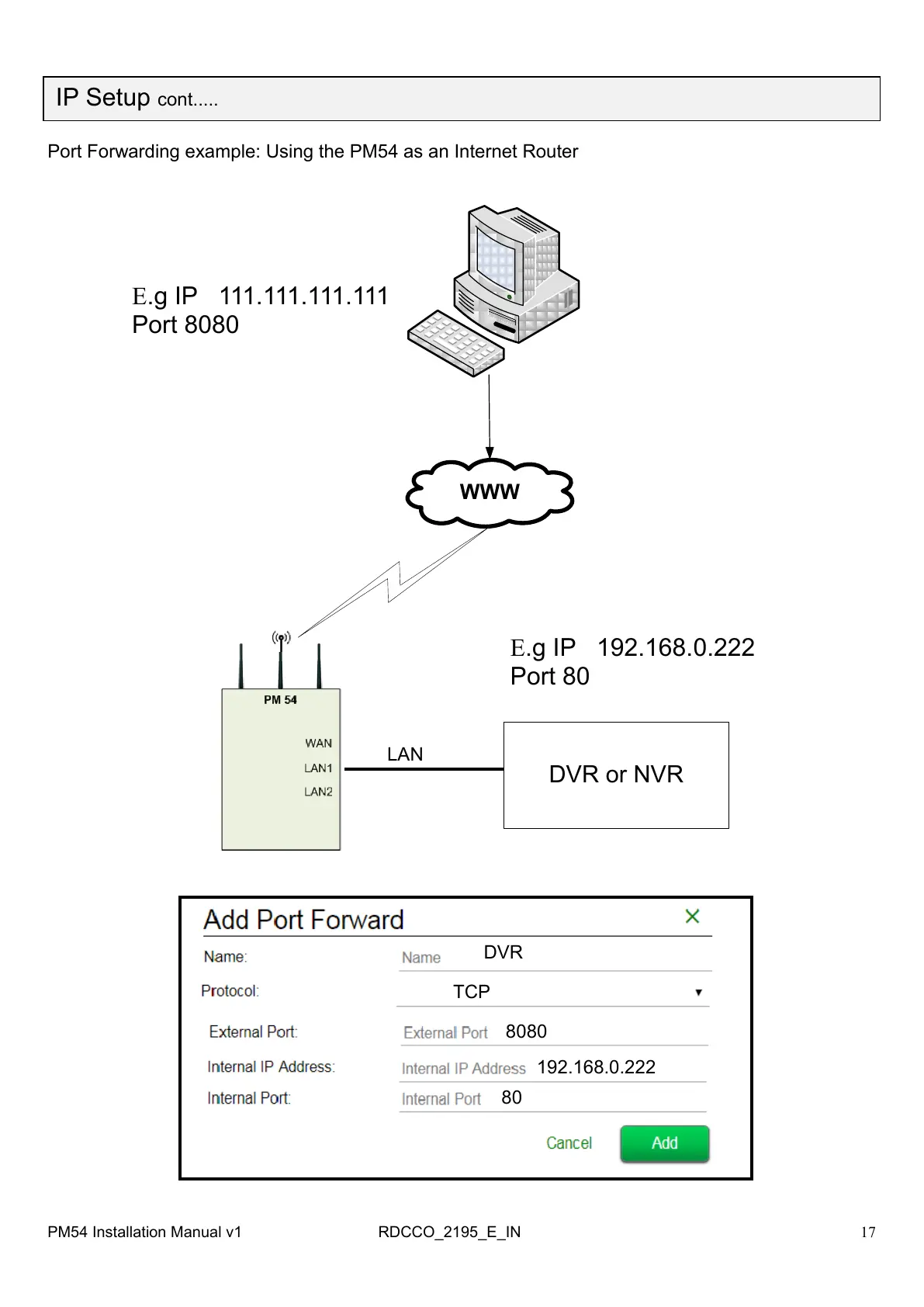

IP Setup cont.....
Port Forwarding example: Using the PM54 as an Internet Router
PM54 Installation Manual v1 RDCCO_2195_E_IN
