PAL-AT Installation Manual
12
relays configured to operate in a normally de-energized mode, so they energize when the panel is
in the alarm state (see the PAL-AT Operating Manual for changing relay configuration).

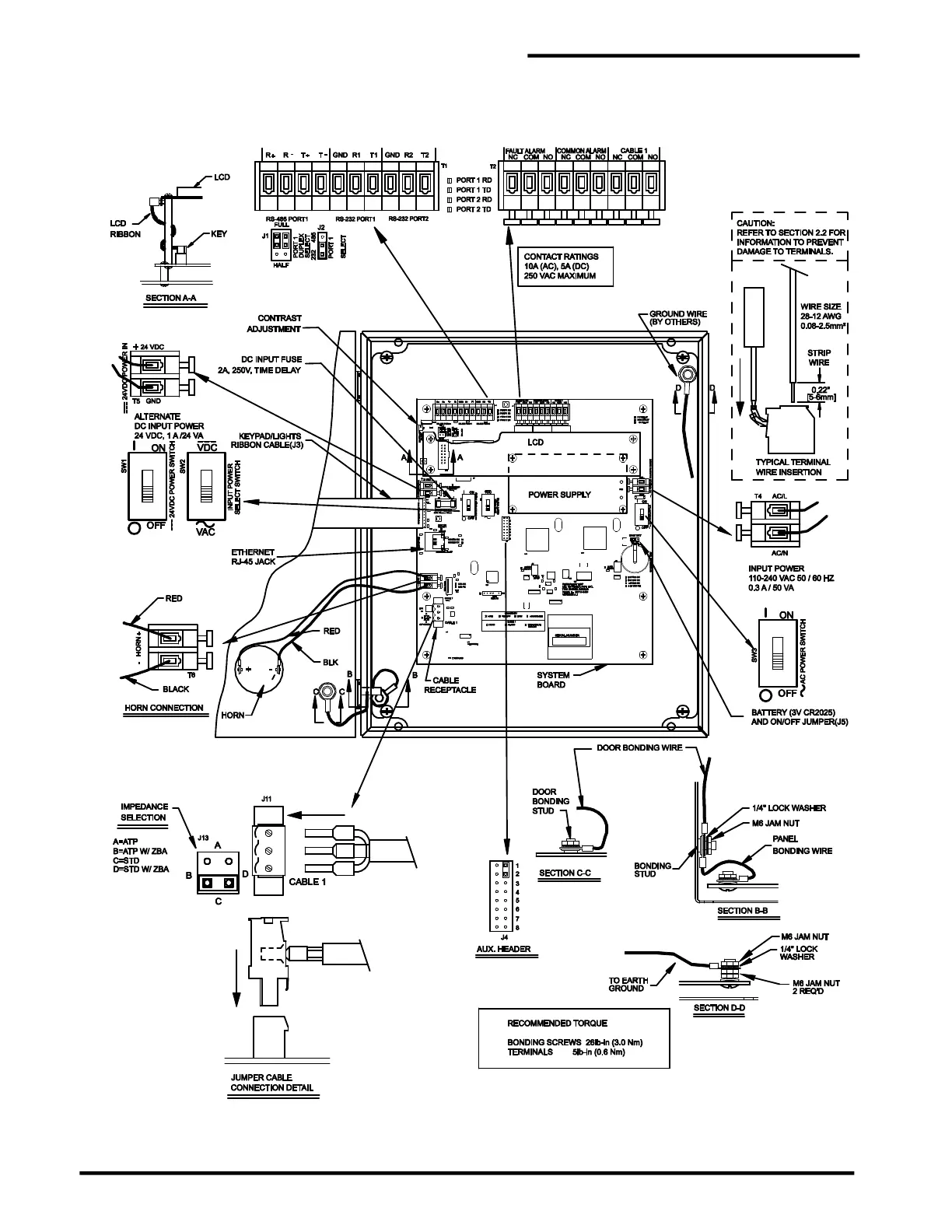

Figure 2-2
Wiring Diagram for PAL-AT Models AT30C & AT75C
