• Find the faulty fuse by looking at the condition of its
filament.

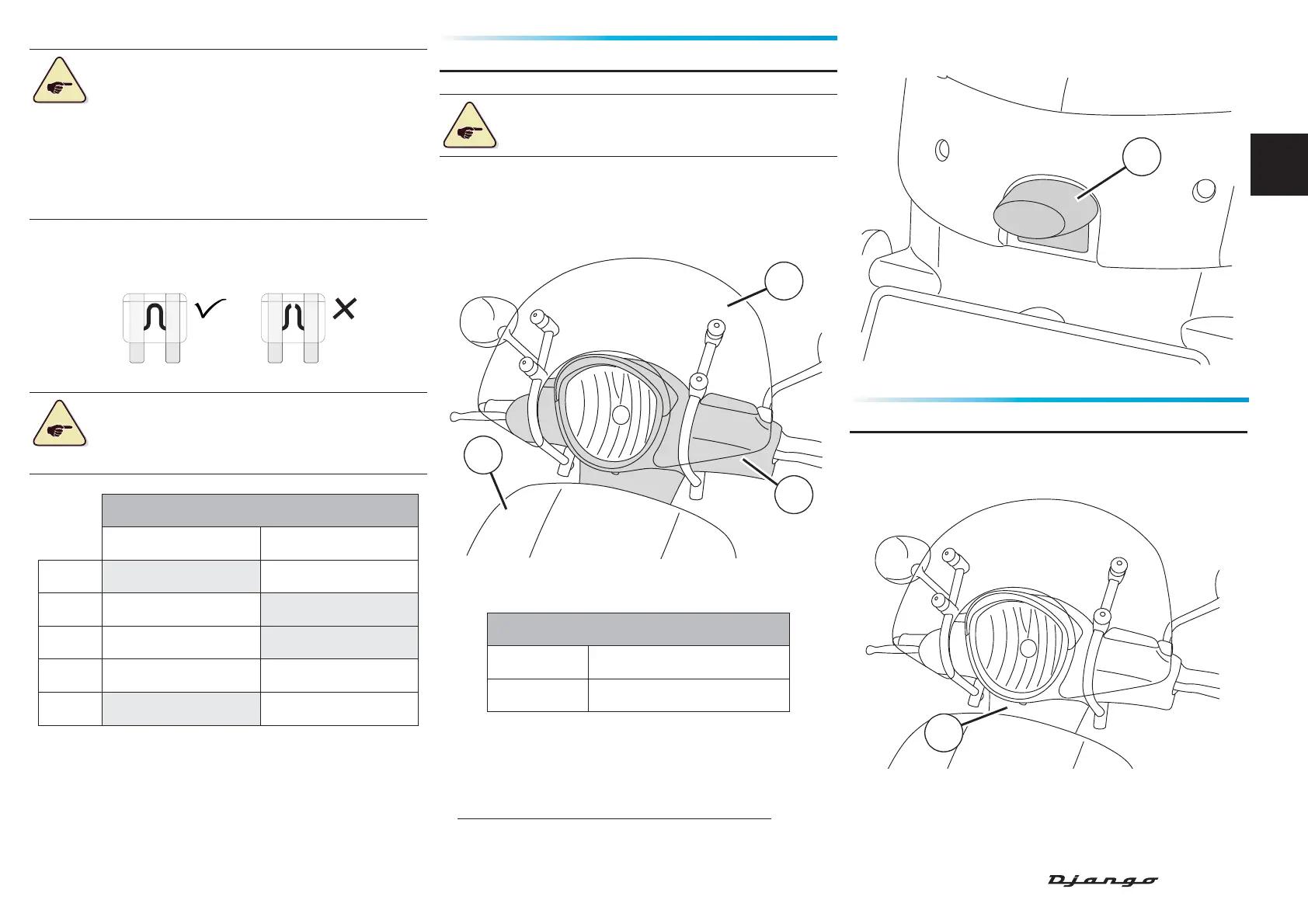

BULB REPLACEMENT
Headlight bulb
• Remove the front shield panel (1).
• Remove the windshield (2)
1
.
•
Remove the headlight fairing (3).
Number plate light bulb
• Remove the lamp lens (4).
HEADLIGHT ADJUSTMENT
The headlights are adjusted with one set-screw per lamp,
which can be accessed from the rear shield panel.
• Loosen the attachment screw (A).
• Adjust the direction of the headlamp by hand.
• Tighten the fastening screw.
If a fuse often blows this is usually a sign
of a short circuit in the electrical circuit.
You are advised to have the system
checked by a registered dealer.
You are advised to switch off the ignition
before changing a fuse and always to
replace it with a fuse of the same rating. If
you do not do so, this may lead to damage
in the electrical circuit or even a fire.
Before changing a fuse, you must find the
reason for the fault and correct it.
Always replace the faulty fuse with a fuse
of the same rating.
Fuse allocation
50 cc 125 cc
20A
Main fuse
15A Main fuse
10A Electrical equipment
10A Injection system ABS System
5A
$FFHVVRU\VRFNHW
You are advised to contact a registered
dealer to have this operation carried out.
1. Depending on equipment
Headlight bulb
50 cc 12V - 35/35W (HS1)
125 cc 12V - 60/55W (H4)
2
3
1
4
A
