ELECTRONIC INSTRUMENT FUNCTIONING PRINCIPLE
17
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
 Analog functions (hands)
Speedometer.
Double-scale indication, kilometres/miles.
Vehicle without ABS/MBS: The signal is supplied by the speed sensor mounted on the front wheel.
Vehicle with ABS/MBS: The signal is sent by the ABS/MBS ECU.
Revolution counter.
Vehicle with Magneti Marelli ECU: 2 pulses per engine revolution.

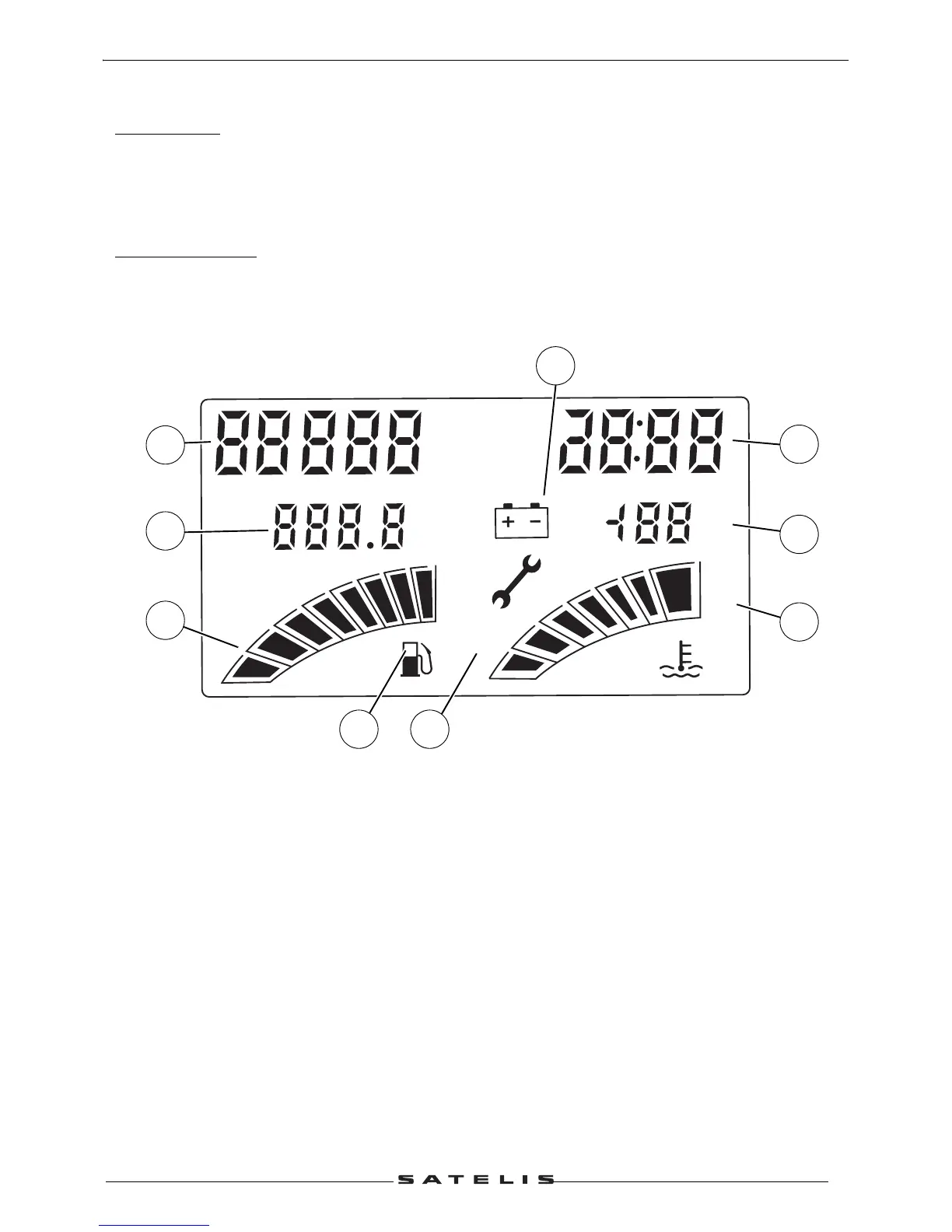

 Numeric functions (multifunctional display)
1. The tripmeter.
2. Daily odometer.
3. Fuel gauge.
4. Digital clock.
5. Outside temperature gauge.
6. Engine temperature gauge.
7. Battery voltage fault.
8. Maintenance indicator.
9. Empty tank indicator light.
km
Miles
°C
°F
C
F
E
H
Trip
1
2
6
3
89
7
4
5

PEUGEOT Satelis 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic fuel injection
Cooling System	Liquid-cooled
Transmission	Automatic CVT
Rear Suspension	Dual shock absorbers
Front Tire	120/70-14
Rear Tire	140/60-13
Fuel Capacity	13.5 liters
Front Suspension	Telescopic fork
Front Brake	Disc brake
Rear Brake	Single disc
Max Power	37.5 hp at 7, 250 rpm
