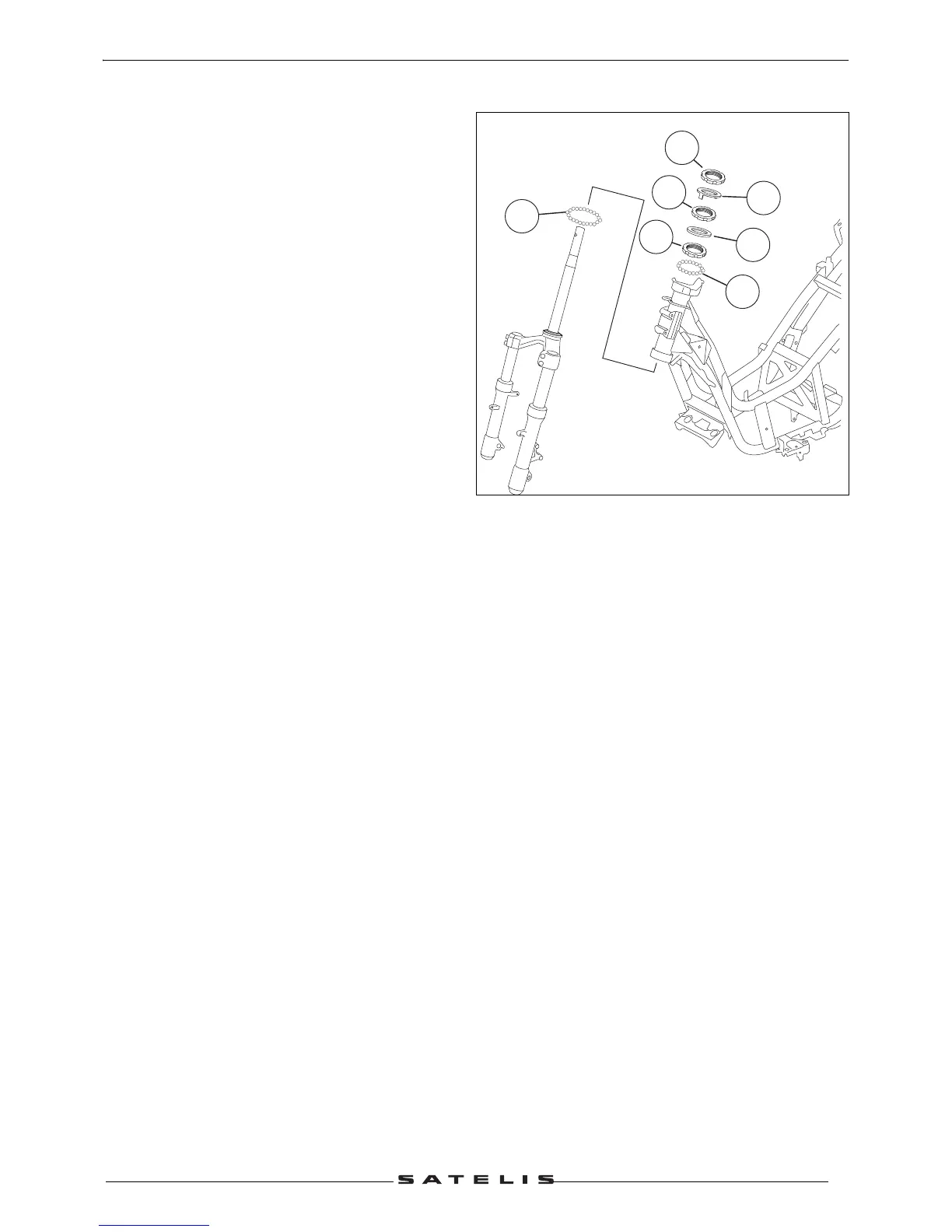

 Steering system tightening method.
- Grease the cup bearing races.
- Fit the caged ball bearings. (1 and 2).
- Fit the fork into the steering column.
- Install the adjustable cone and tighten it. (3)
Tightening torque: 4 m.daN.
- Loosen and then retighten the adjustable
cone.
Tightening torque: 2.2 m.daN.
- Install the rubber washer. (4)
- Finger tighten the adjustable cone
locknut (5) so that its notches are aligned
with those of the adjustable cone.
- Fit the lock washer (6) in the notches of the
locknut and adjustable cone.
- Install the steering head locknut and tighten
it
Tightening torque: 7.5 m.daN.
