BODY PANELS

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

 Removal of the instrument cluster

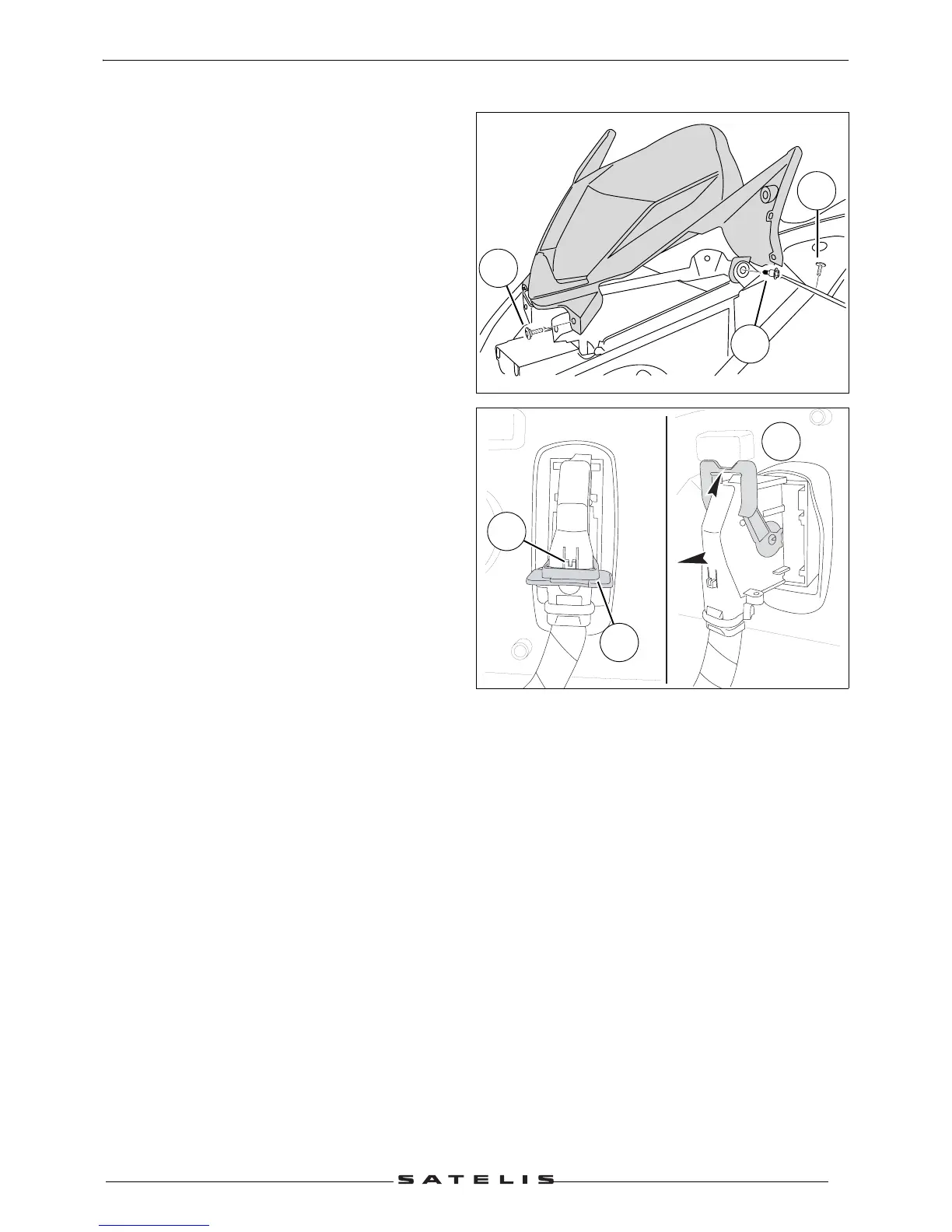

- Remove:

- The front top cover panel. See: Procedure 7.

Page: 35

• The wind deflector.

• The handlebar upper fairing.

- On each side remove:

• 1 plastic screw. (1)

• 1 washer head screw. Ø5 mm. (2)

• 1 washer head screw. Ø6 mm. (3)

- Press the locking system (1) to actuate the

positioning lever (2) of the instrument cluster's

connector.

- Push the lever all the up (A) in order to remove

the connector from the instrument cluster.

- Remove the instrument cluster fairing.

Note: When connecting, the lever must be

pushed all the way to (A) in order not

to damage the connector.
