ELECTRICITY
25
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

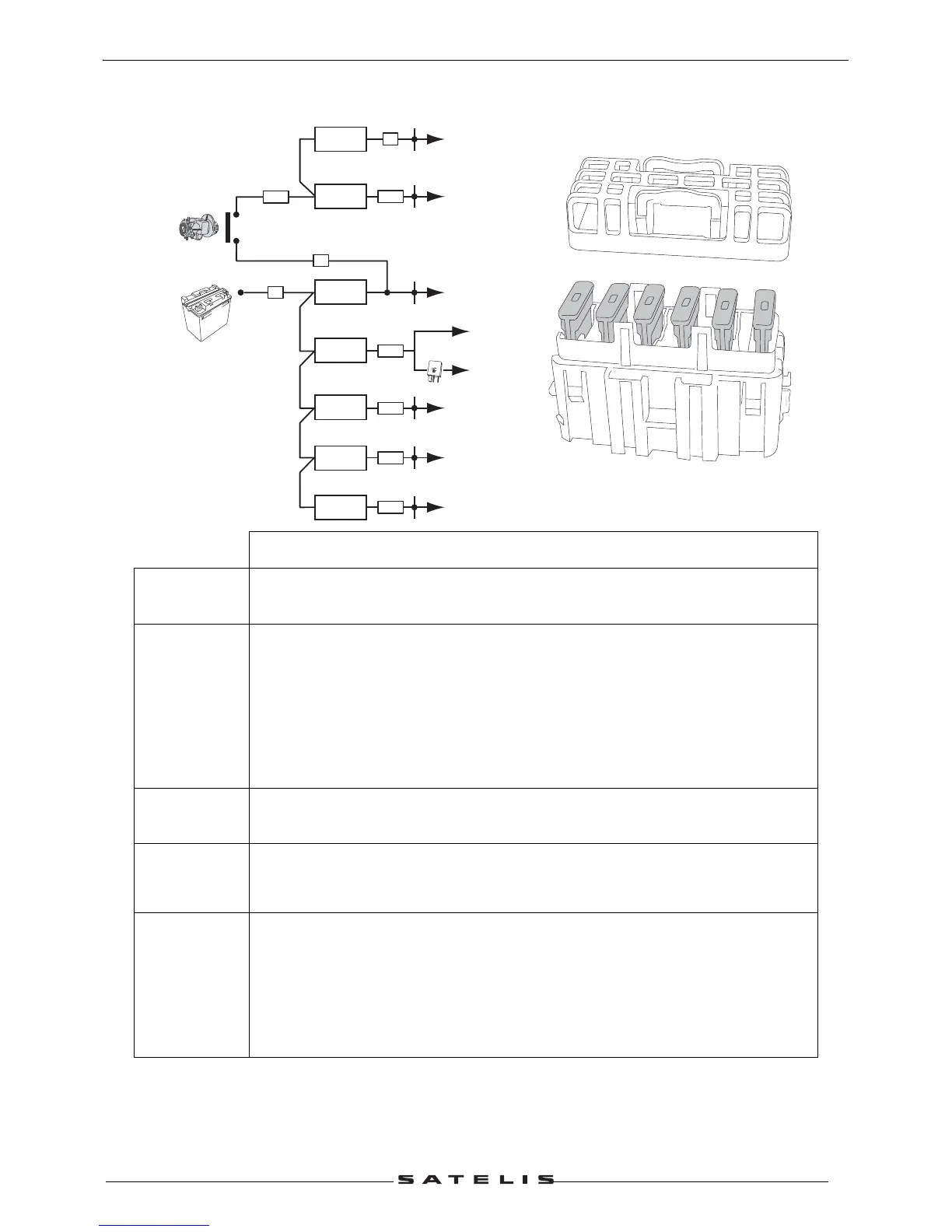

 Fuses and energy distribution
Satelis 400/500cc
F1
30A
Regulator.
Ignition switch.
F2
45A
Fan relay.
Injection ECU.
Power supply relay:
Fan relay.
HT coil.
Petrol injector.
Fuel pump.
Lambda sensor.
F3
40A
Accessory socket.
Saddle opening module (option).
F4
45A
Instrument panel.
Lighting relay.
Starter motor relay control relay.
F5
5A
Instrument panel.
Dip switch (main/low headlight).
Horn.
Number plate light.
Sidelight.
Stop light contact switch.
Saddle opening module (option)
RG
GR-BE
GR-RG
GR-RG
+B
-
UPPER LEVEL
LO
WER LEVEL
RG
RG-NR
GR-NR
NR
F1-30A
F6-7,5A
F5-15A
F2-15A
F3-10A
F4-15A
RG
F7-30A
X
X
X
X
X
X
X
X
X
X
X
X
12V - 25
A

PEUGEOT Satelis 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic fuel injection
Cooling System	Liquid-cooled
Transmission	Automatic CVT
Rear Suspension	Dual shock absorbers
Front Tire	120/70-14
Rear Tire	140/60-13
Fuel Capacity	13.5 liters
Front Suspension	Telescopic fork
Front Brake	Disc brake
Rear Brake	Single disc
Max Power	37.5 hp at 7, 250 rpm
