Mounting and commissioning the machine
8.01 Mounting
The necessary electricity and compressed air supplies must be available at the machine’s
location (see specifications).
A stable and horizontal surface as well as sufficient illumination at the machine’s location.
Due to reasons of packaging, the table top is lowered for transport. The
following is a description of how to adjust the height of the table top.
8.01.01 Adjusting the table-top height
8 Mounting and commissioning the machine
The machine must only be mounted and commissioned by qualified personnel!
All relevant safety regulations are to be observed!
If the machine is delivered without a table, it must be ensured that the frame
and the table top which you intend to use can hold the weight of the machine
and the motor, even while sewing.

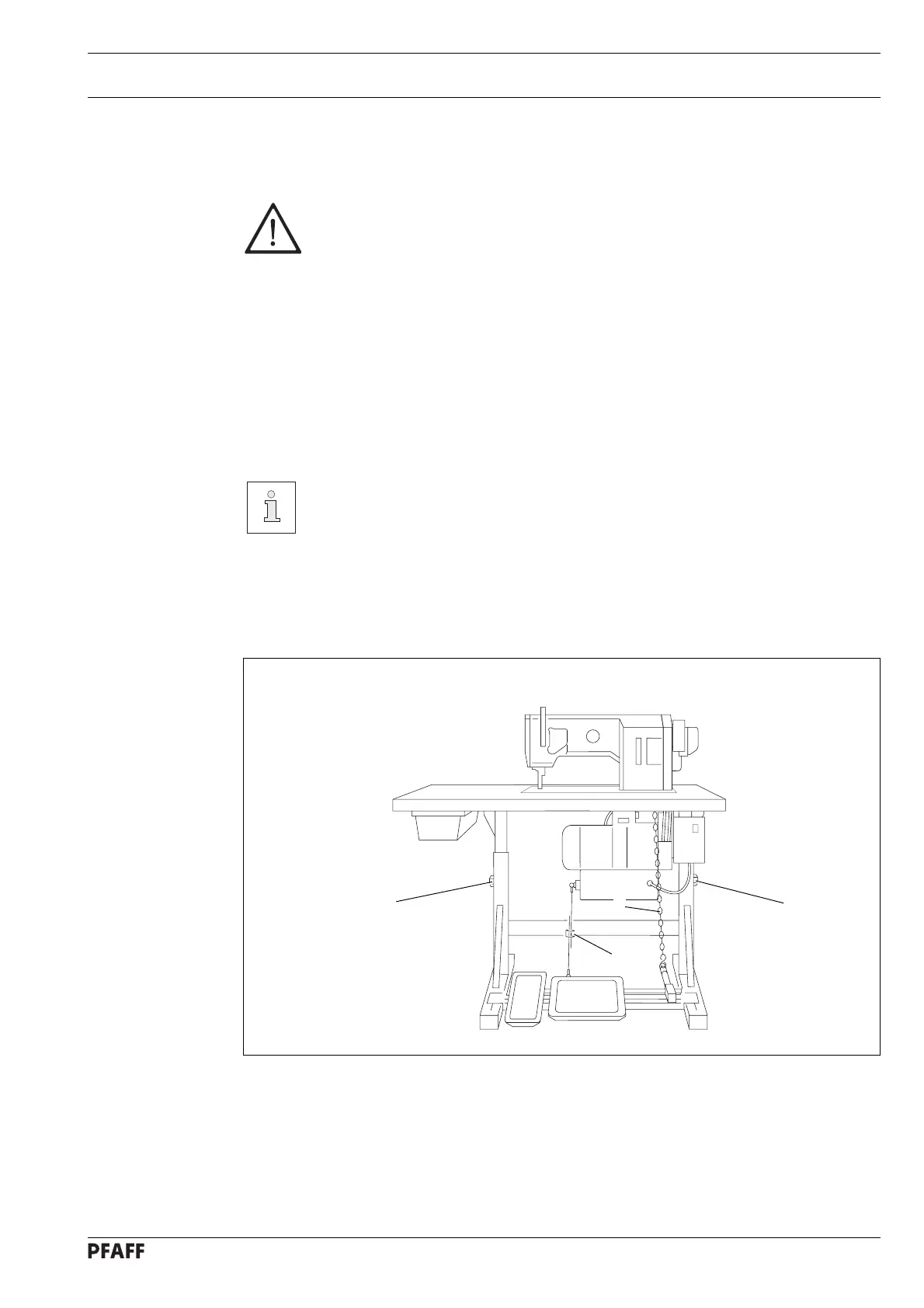

Fig. 8 - 01
1
1
2
3
● Loosen screws 1 and 2.
● Set the desired table-top height and tighten screws 1 well.
● Adjust the position of the right pedal so that you can operate it comfortably and tighten
screw 2.
● The setting of the left pedal can be adjusted with chain 3. (This adjustment is not
necessary on machines with an automatic presser-foot lifter)
