Adjustment
11 - 22
11.05.03 Pawl
Requirement
With the cut-off mechanism in resting position, there must be a distance of 0.3 mm
between the largest eccentricity of bearing surface 1 and pawl 2.
● Position the largest eccentricity of bearing surface 1 underneath pawl 2 by turning the
handwheel.
● Move bearing bolt 3 (screw 4) in accordance with the requirement.

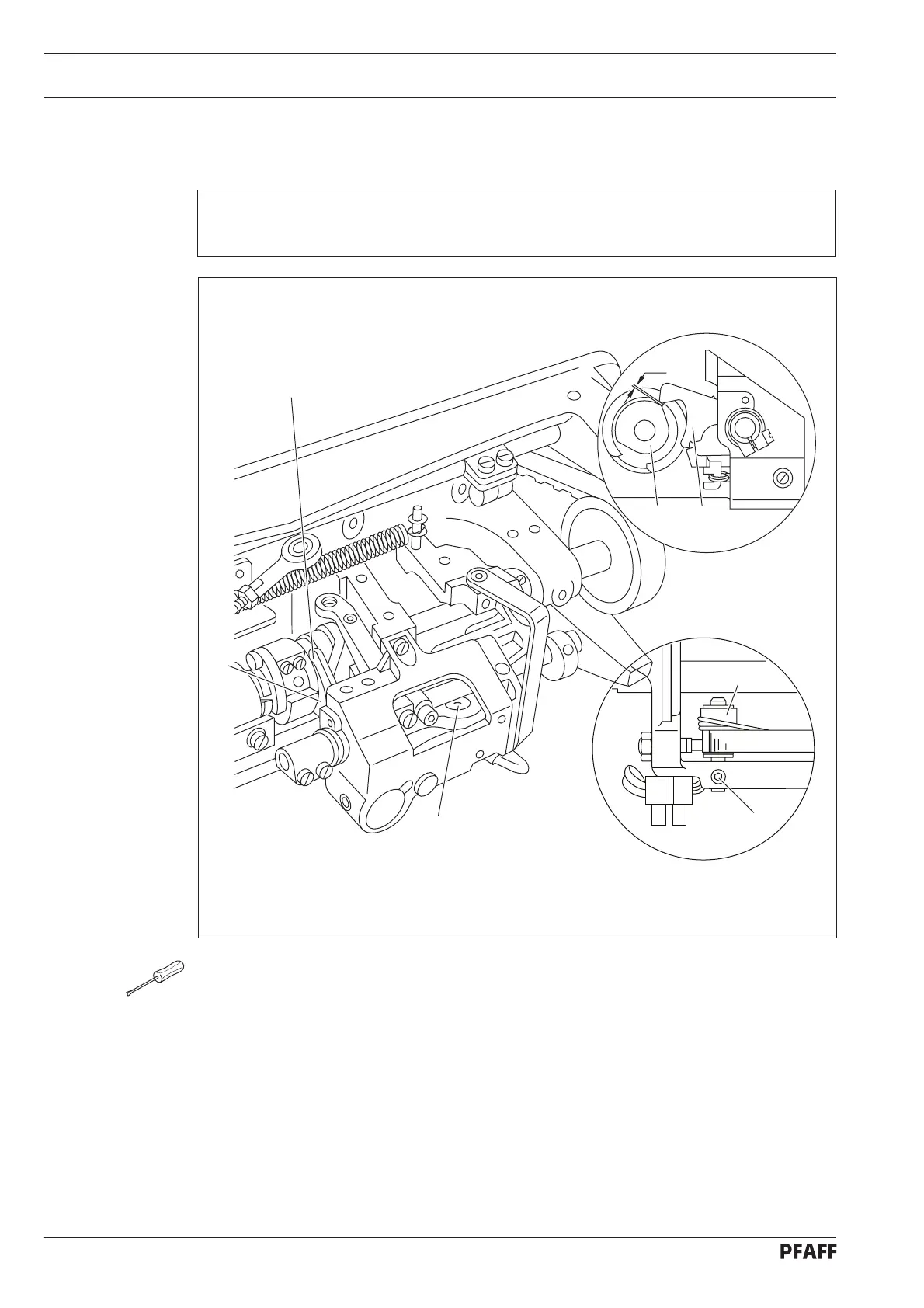

Fig. 11 - 19
2
1
3
1
0.3 mm
2
4
3
