11.04.16 Bobbin winder
Requirement
1. With the bobbin winder switched on, the bobbin winder spindle must engage reliably.
With the bobbin winder switched off, friction wheel 5 must not touch drive wheel 1.
2. The bobbin winder must switch off automatically when the thread level is approximately
1 mm from the edge of the bobbin.
● Move drive wheel 1 (screws 2) in accordance with requirement 1.
● Place a bobbin on the bobbin winder, thread the bobbin and switch on the bobbin winder.
● Move stop latch 3 (screws 4) in accordance with requirement 2.

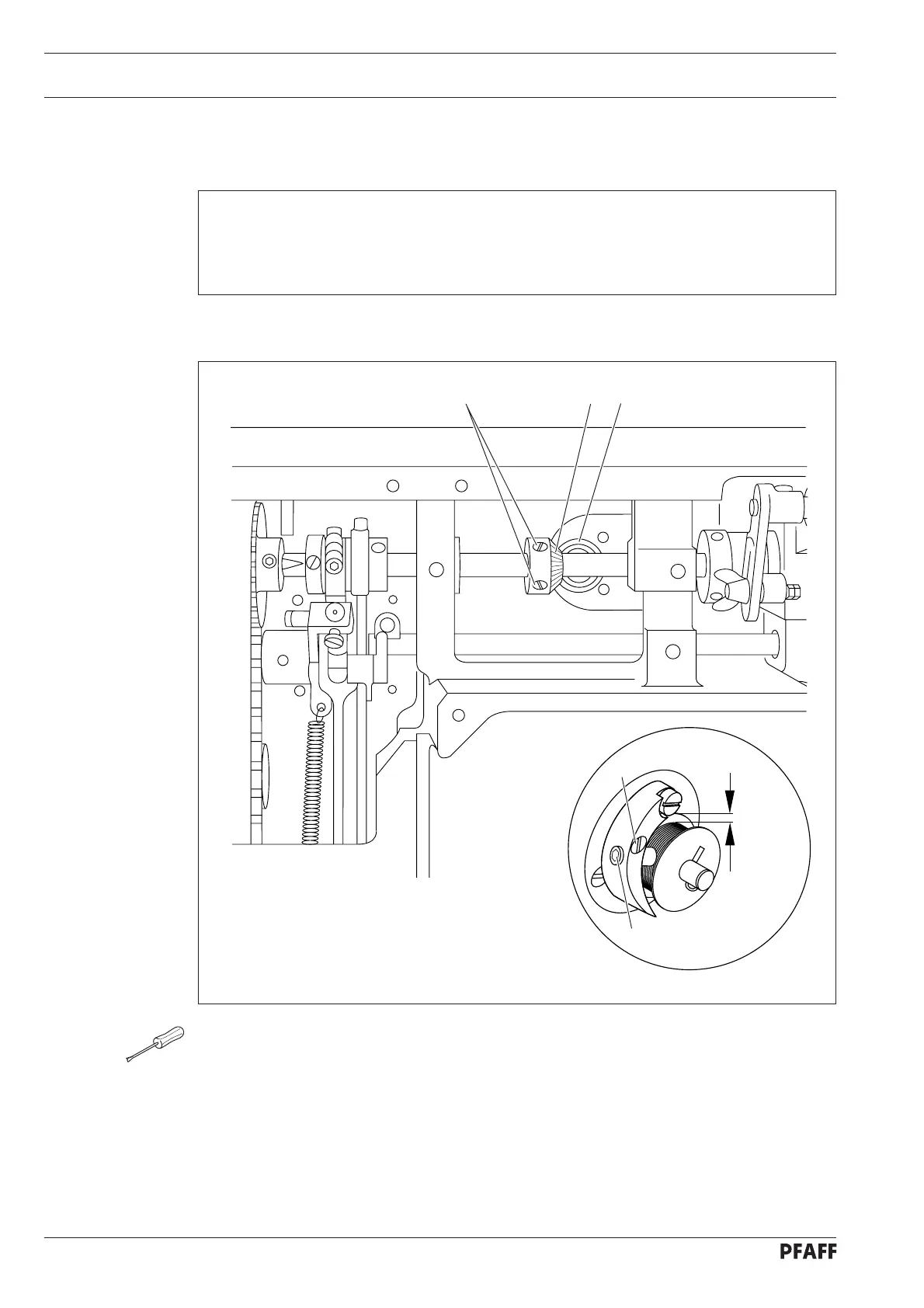

Fig. 11 - 15
2 1 5
1 mm
4
3
