Pfaff 1245 User Manual

Adjustment
11 - 4
11.04.03 Height of the bottom feed-dog
Requirement
With the stitch length set at „0“, the bottom feed dog must protrude over the needle plate
as high as the teeth when at TDC.

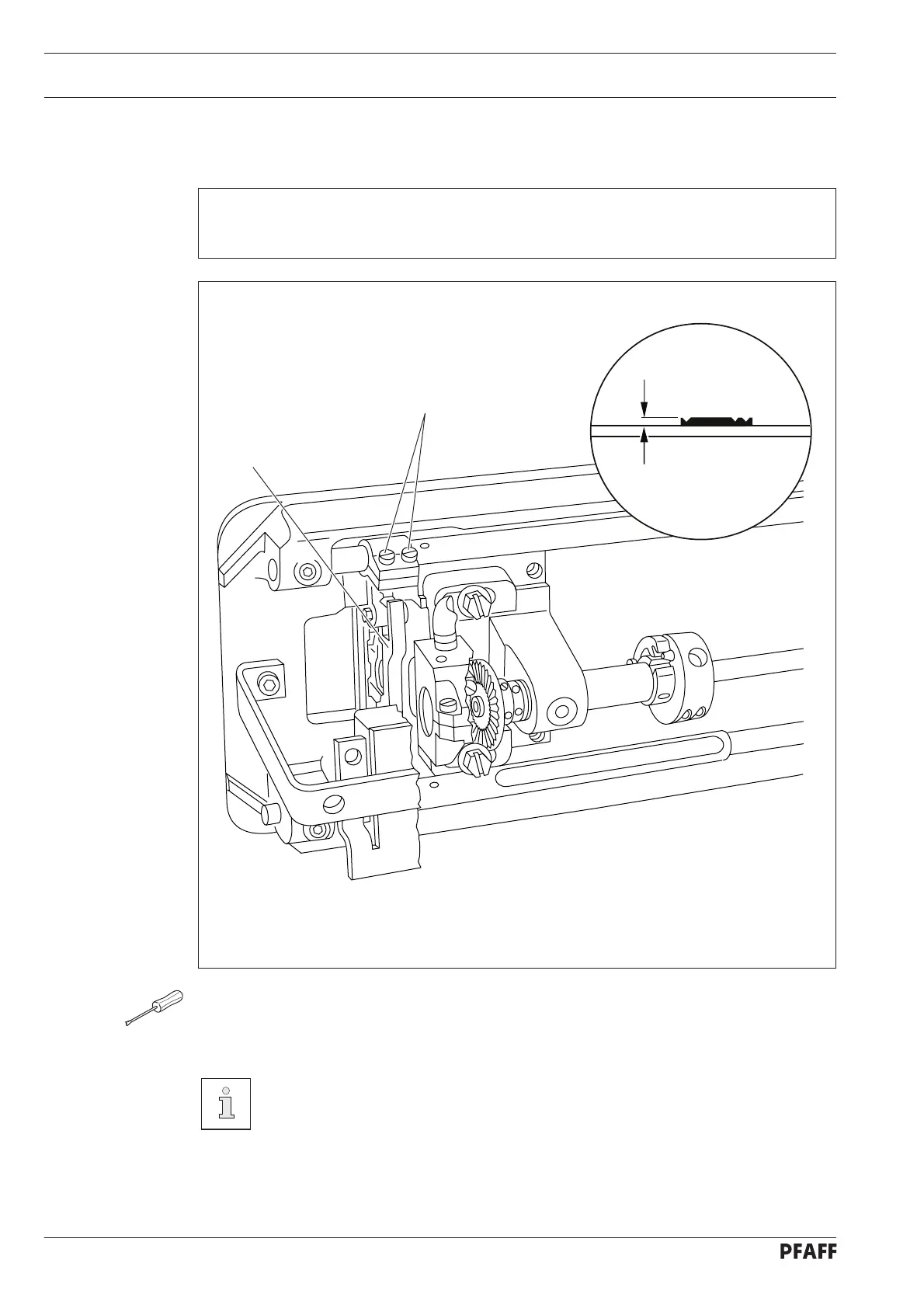

Fig. 11 - 03
● Set stitch length „0“.
● Bring the bottom feed dog to its TDC by turning the handwheel.
● Adjust feed dog carrier 1 (screws 2) in accordance with the requirement.
If required, the feed dog height can be reduced a little on machines without a
bottom feed lifting phase (without P).
1
2

Pfaff 1245 Specifications

General

Type	Industrial Sewing Machine
Stitch Type	Lockstitch
Needle System	134-35
Feed Mechanism	Triple Feed
Application	Medium to Heavy Material
