Pfaff 1245 User Manual

Adjustment
11 - 25
11.05.06 Engaging lever
Requirement
With the needle bar at TDC and with control lever 3 at starting position, there must be a
distance of approx. 0.3 mm between bolt 4 and the outer diameter of control cam 5.

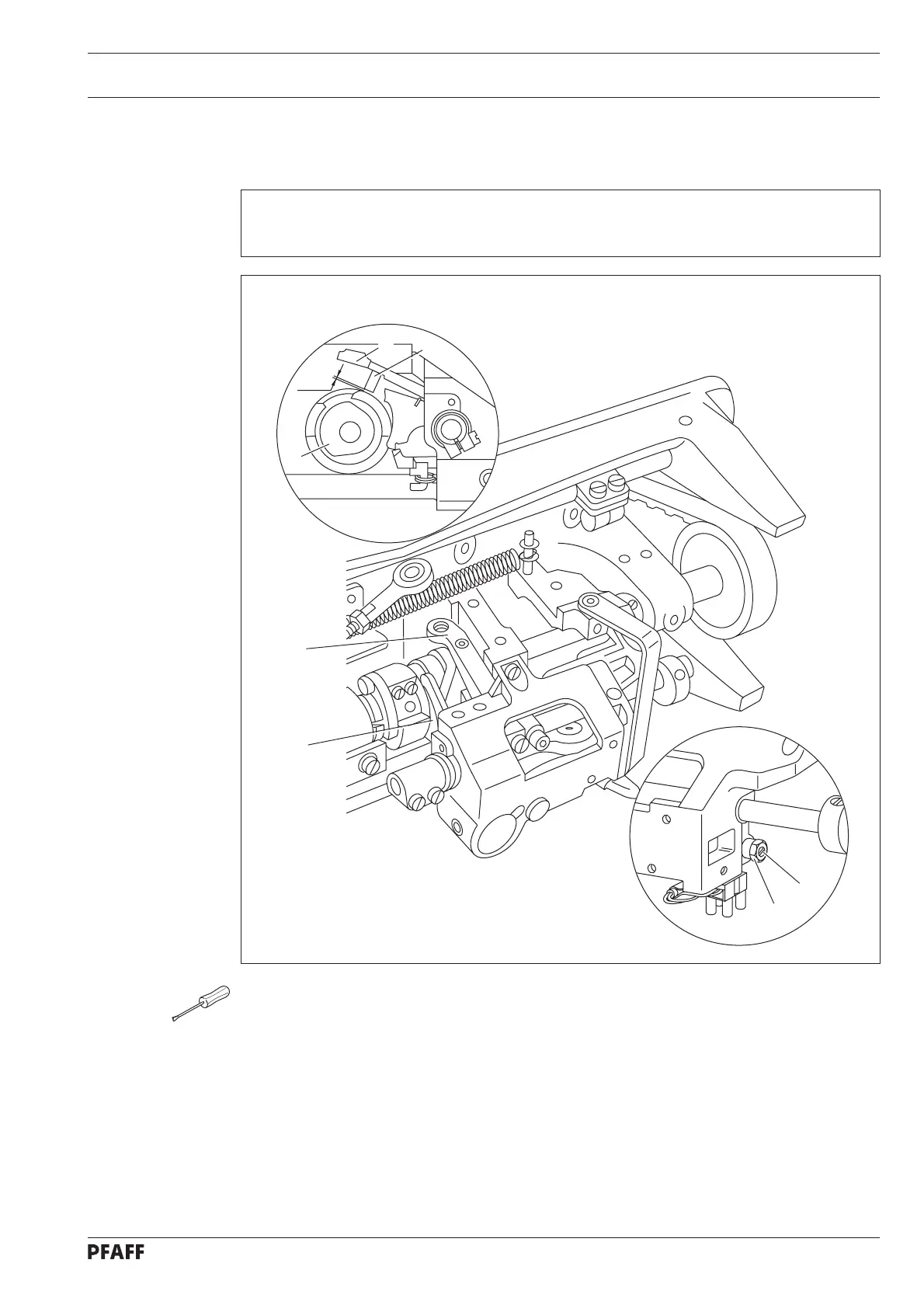

Fig. 11 - 22
● Bring the needle bar to TDC by turning the handwheel.
● Turn screw 1 (nut 2) in accordance with the requirement.
● Carry out a check by tapping control lever 3.
0.3 mm
5
1
2
3
4
3
5

Pfaff 1245 Specifications

General

Type	Industrial Sewing Machine
Stitch Type	Lockstitch
Needle System	134-35
Feed Mechanism	Triple Feed
Application	Medium to Heavy Material
