Care and maintenance
10 - 3
Turn the machine off!
● Lubricate all bearings marked in Fig. 10.02 twice a week.
● Open the bed slide to gain access to oiling point 1.
● Pull the knee lever out to the front and lay the machine on its back.
● Lubricate all bearings marked in Fig. 10.03 twice a week.
Setting the machine upright
● Hold the machine, press tilt safety device 3 (Fig. 10-04) and return the machine to an
upright position with both hands.
Danger of crushing between machine and table top!
Turn the machine off!

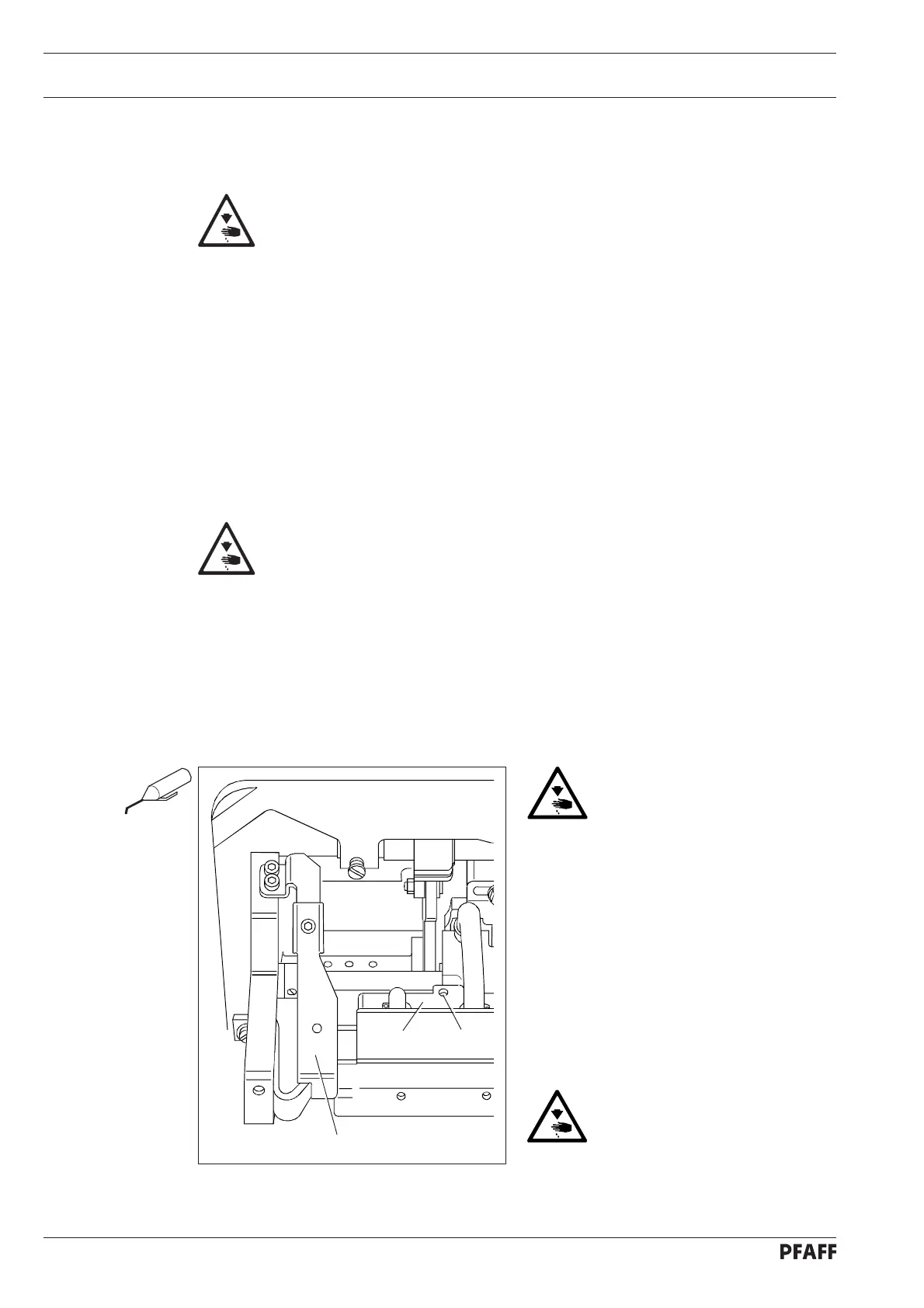

● Pull the knee lever out to the front and
lay the machine on its back.
● Fill oil reservoir 1 through hole 2 up till
the topmost marking.
Setting the machine upright
● Hold the machine, press tilt safety
device 3 and return the machine to an
upright position with both hands.
Danger of crushing between
machine and table top!
Fig. 10 - 04
2
1
3
10.04 Lubricating the hook
