Adjustment
11 - 10
2
1
4
5
1
6

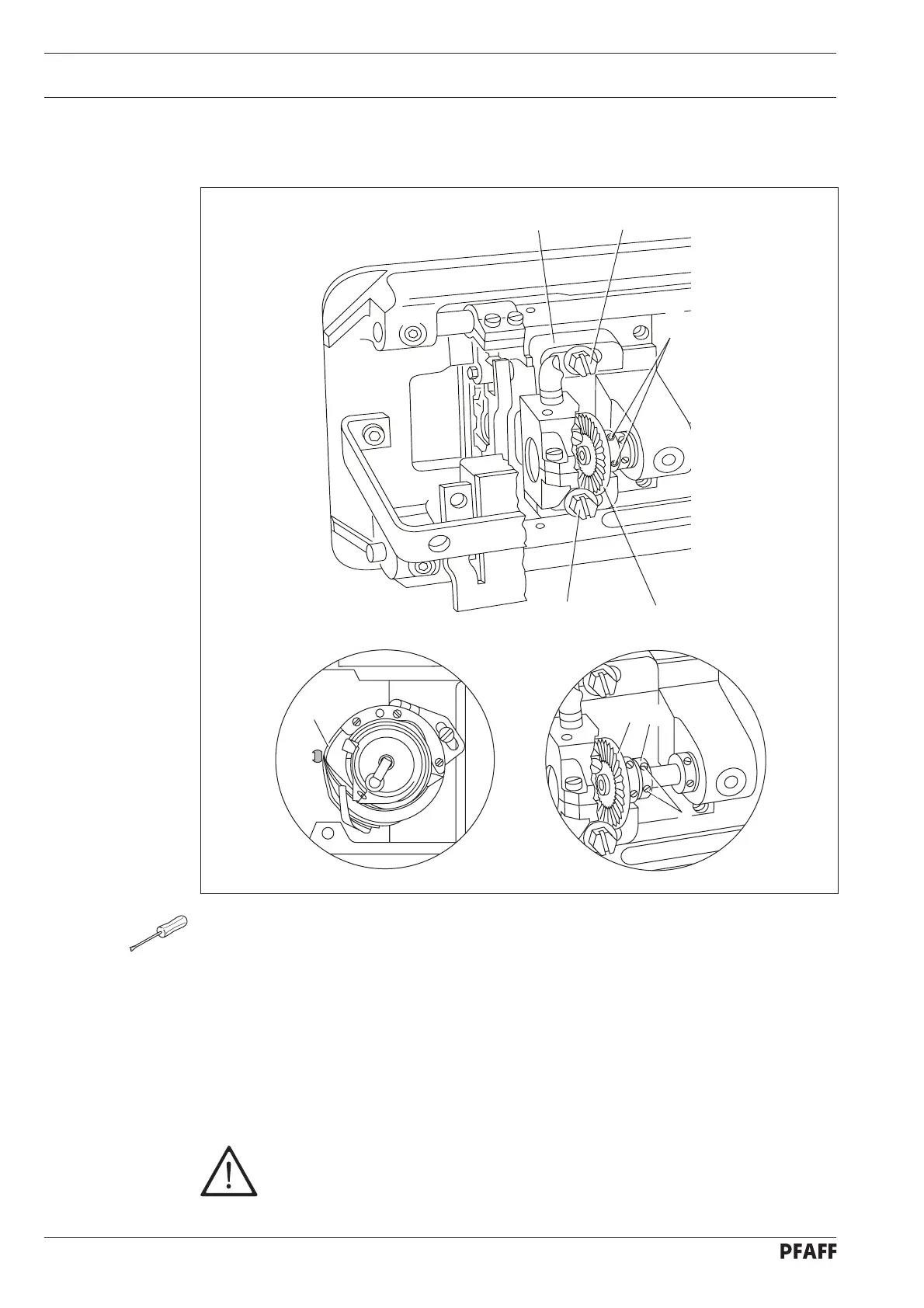

Fig. 11 - 08
5
7
3
adjustable clamp is touching the needle bar bearing.
● Position the hook point at the middle of the needle, taking care to ensure that the needle
is not pressed by needle guard 7.
● While ensuring that bevel pinion 5 is not too close, and that the hook does not exhibit too
much play, tighten screws 2.
● On machines with automatic thread trimmer -900/56, bring retaining collar 6 to rest on
bevel pinion 5 and tighten screws 3.
● Adjust the needle height in accordance with requirement 2 (see also chapter 11.04.04).
● Align needle guard 7 in accordance with requirement 3.
Bei der PFAFF 1246 ist nach Veränderung des Nadelabstandes unbedingt die
Verbindungsstange zum Fadenabschneider (siehe auch Kap.11.05.10)
neu zu justieren.
